Power single relay, 3CO, 16A, LED+Diode+Test button, 220V DC
Code:
IR-220DC-3CO-D
Code:
IR-220DC-3CO-D
| Nominal current, A | 16 |

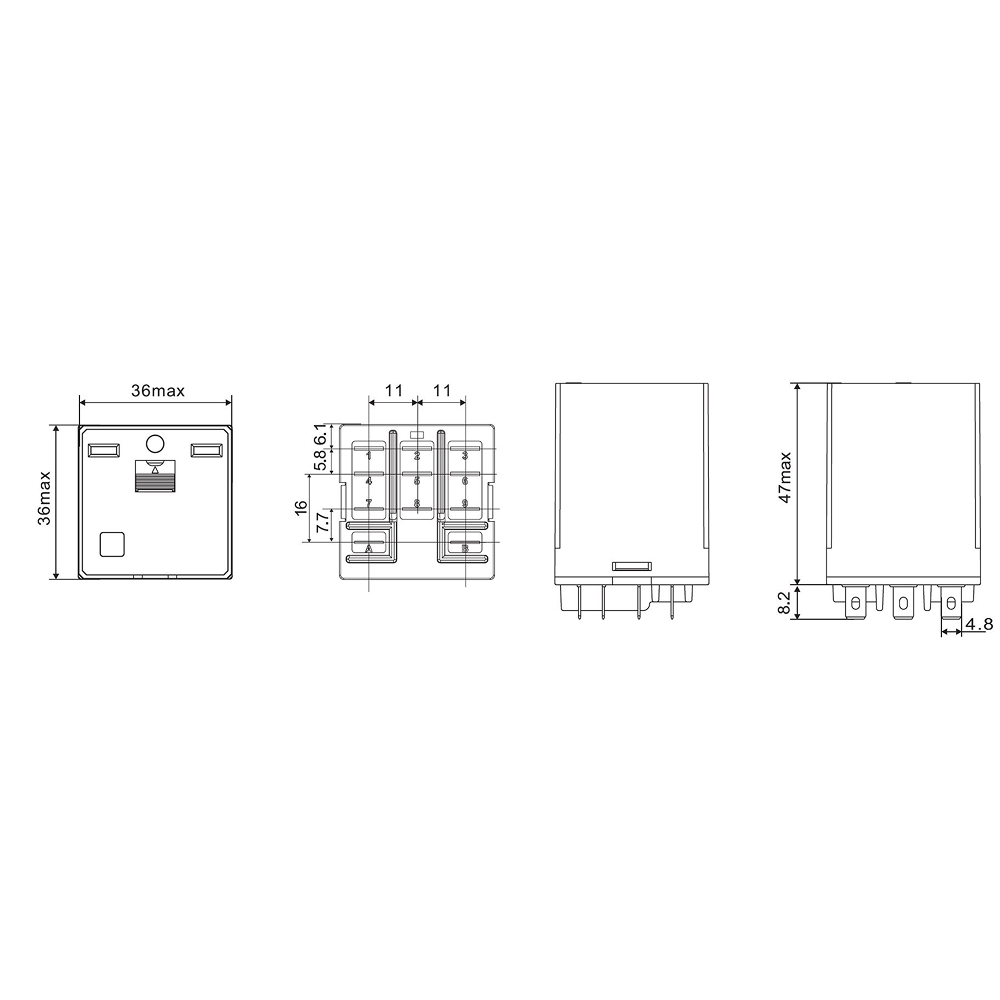

| Width, mm | 36 |
| Height, mm | 47 |
| Depth, mm | 36 |
| With detachable clamps | No |
| Drive, polarization | Polarized |
| Type of switch contact | Double contact |
| Complete with socket | No |
| Type of electric connection | Flat plug-in connection |
| Rated control supply voltage Us at DC, V | 220...220 |
| Degree of protection (IP) | IP50 |
| With LED indication | Yes |
| Voltage type for actuating | DC |
| Number of contacts as change-over contact | 3 |
| Drive, switching attitude | Mono stable |
| With forced-guided contacts | No |
| Honest SIGN system. Commodity group | Radio‑electronic products |
| Russian Classification of Products by Economic Activities (OKPD 2) | 27.12.24.110 |
| Commodity Nomenclature of Foreign Economic Activity | 8536490000 |
