| Width, mm | 30 |
| Height, mm | 124 |
| Depth, mm | 117 |
| Power consumption, VA | 255 |
| Modular version | Yes |
| Width in number of modular spacings | 1.7 |
| Voltage type of supply voltage | AC/DC |
| Power output, W | 120 |
| Output voltage stabilized | Yes |
| Type of electric connection | Screw connection |
| Rail mounting possible | Yes |
| Degree of protection (IP) | IP20 |
| 1st secondary output voltage, V | 22...28 |
| Secondary voltage adjustable | No |
| Rated supply voltage at AC 50 Hz, V | 100...240 |
| Rated supply voltage at DC, V | 117...374 |
| Short-circuit-proof | Yes |
| Max. output current 1, A | 5 |
| Nominal value output voltage 1, V | 12 |
| Nominal value output current 1, A | 1.2 |
| Built-in Oring diode | Yes |

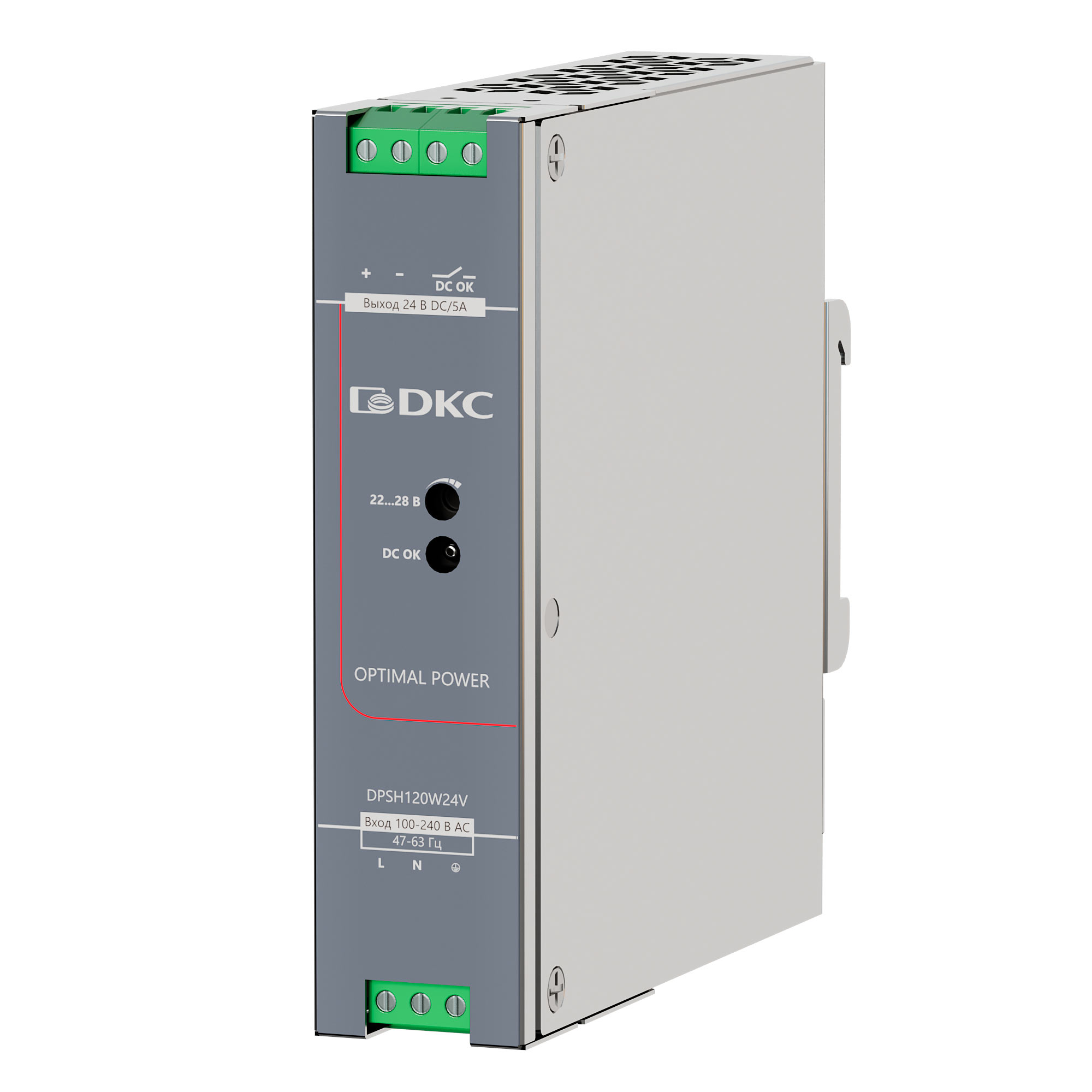

| Type of product | Power supply |
| Number of phases | 1 |
