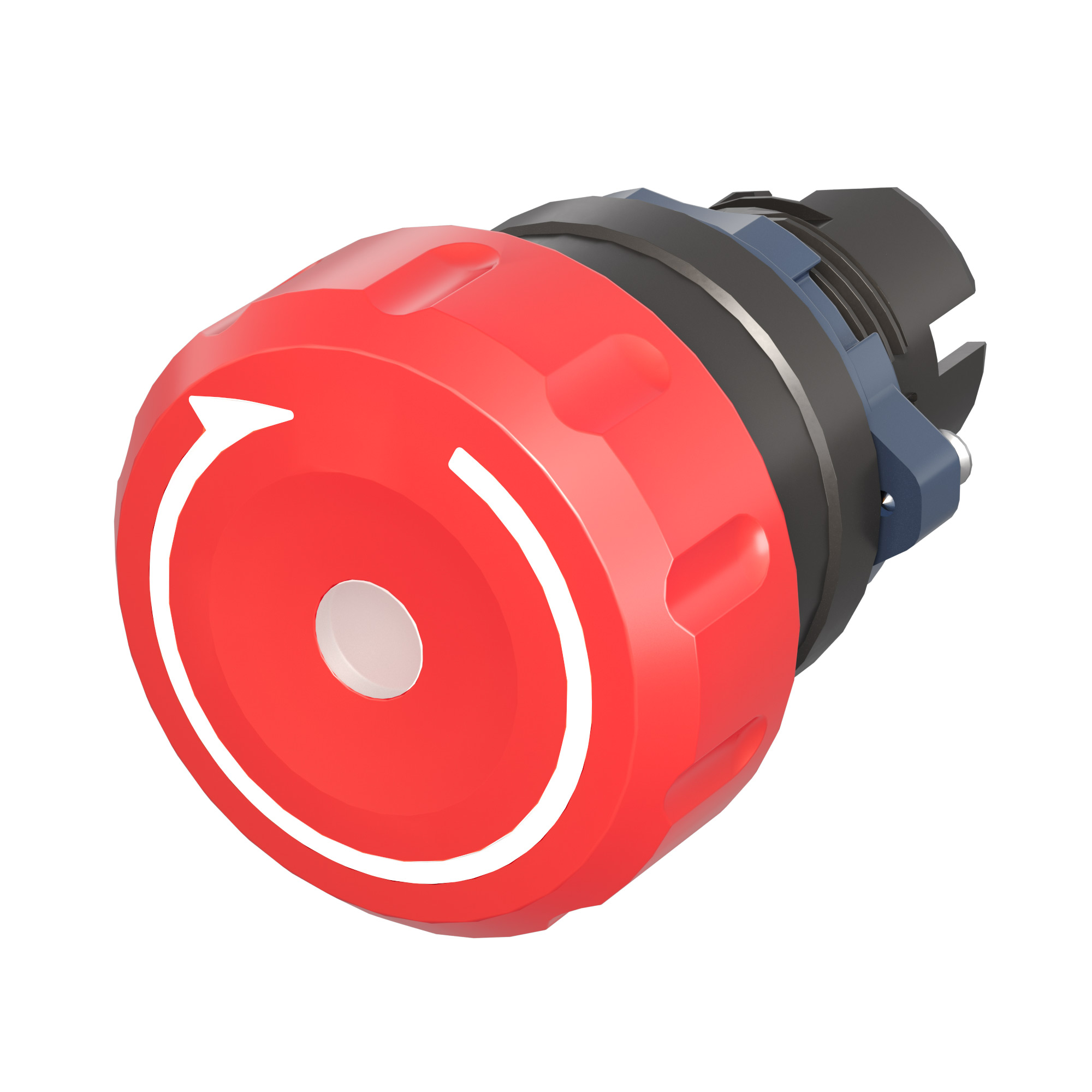

Emergency button head mushroom-shaped swivelling pushbutton head 40 withlocking device
Code:
M22E-MLLRP
Code:
M22E-MLLRP
| Hole diameter, mm | 22.2 |
| Colour button | Red |
| Suitable for illumination | Yes |
| Unlocking method | Turn-release |
| Spring-return | No |
| Diameter cap, mm | 40 |
| Suitable for emergency stop | Yes |
| Type of button | High |
| Width opening, mm | 22.2 |
| Height opening, mm | 22.2 |
| Degree of protection (IP) | IP65 |
| Material front ring | Plastic |
| With front ring | Yes |
| Construction type lens | Round |
| Switching function latching | Yes |
| Product type | Button head |
| Degree of protection (IP) | IP65 |
| Fixation | Yes |
| Color | Red |
| Button type | Mushroom |
| Backlighting option | Yes |
