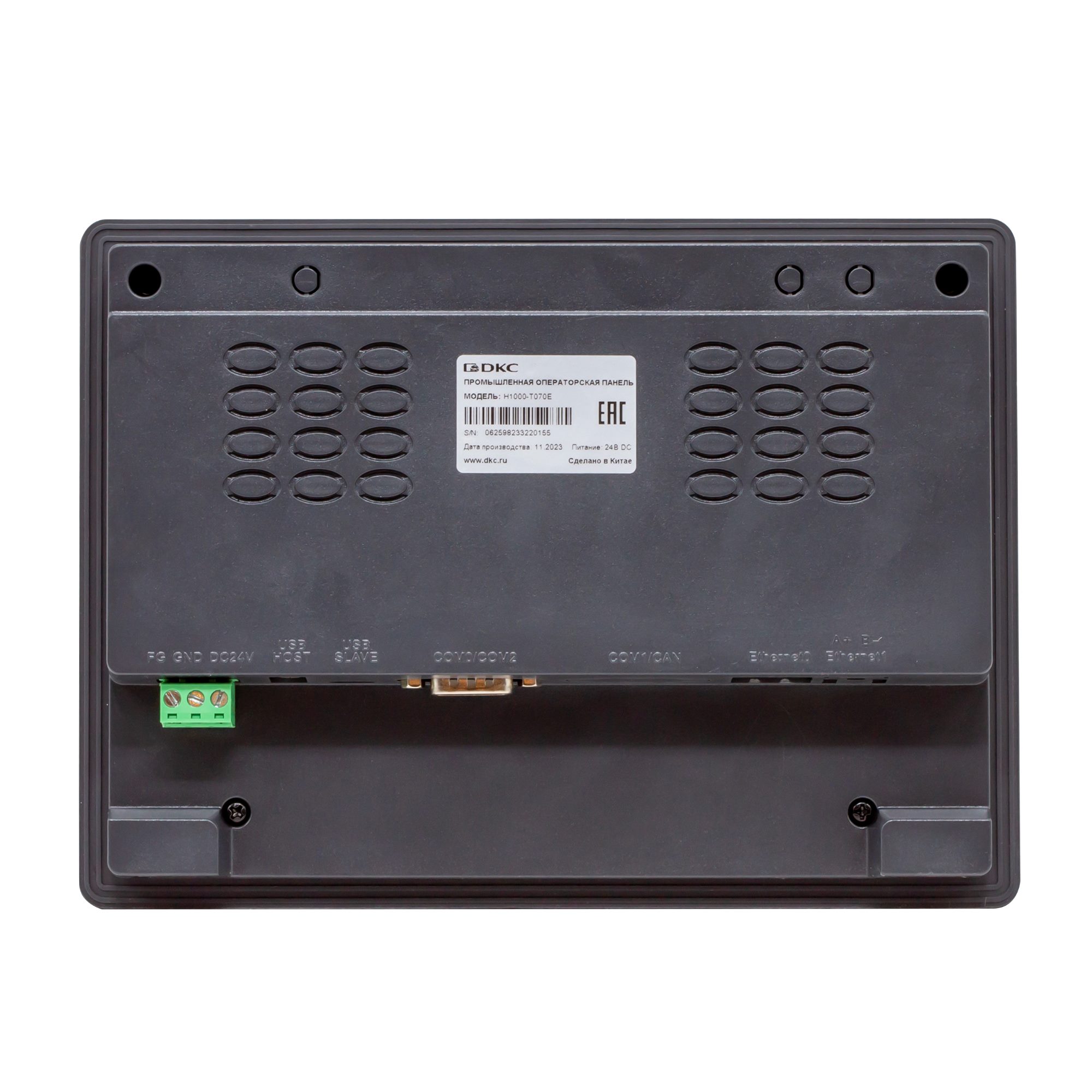

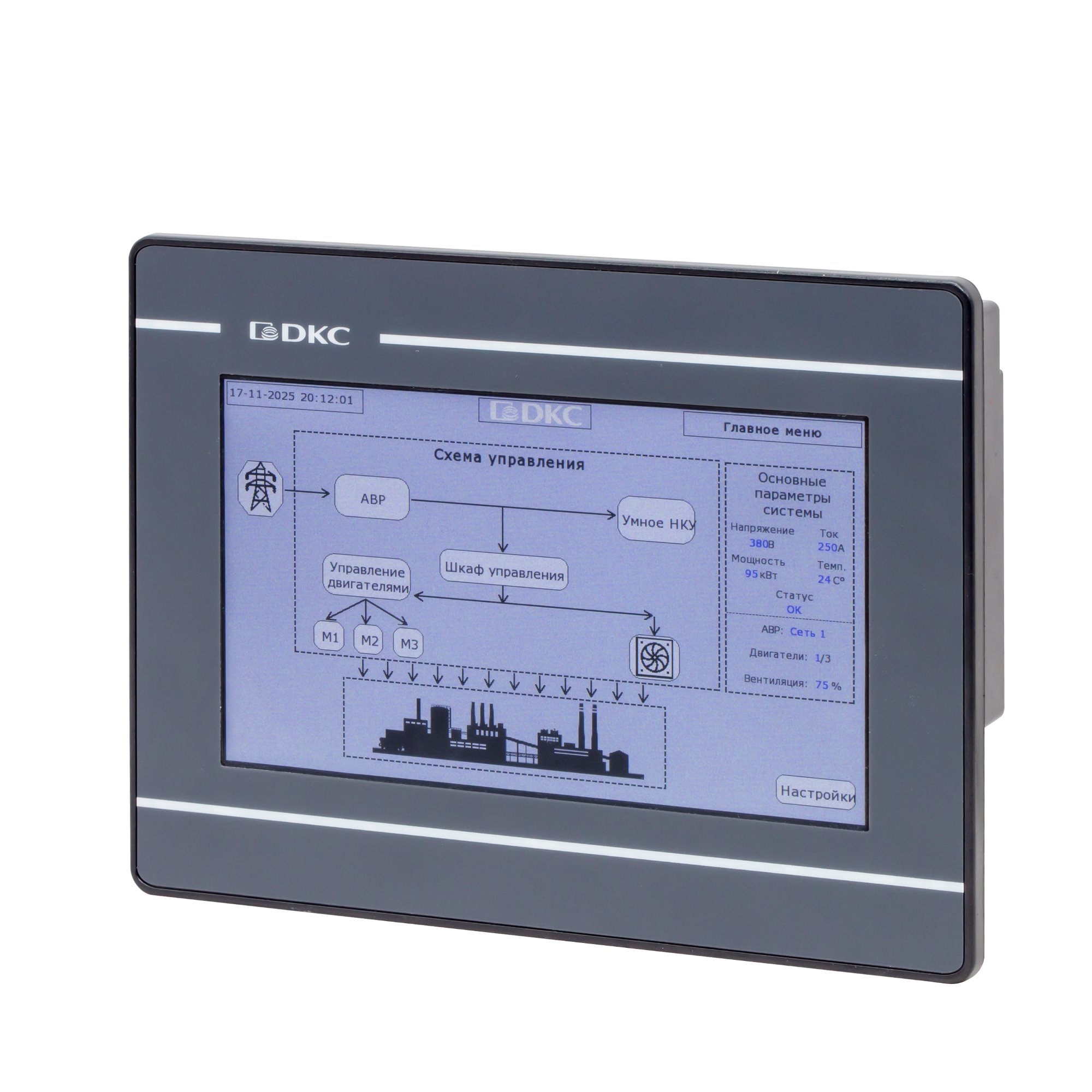

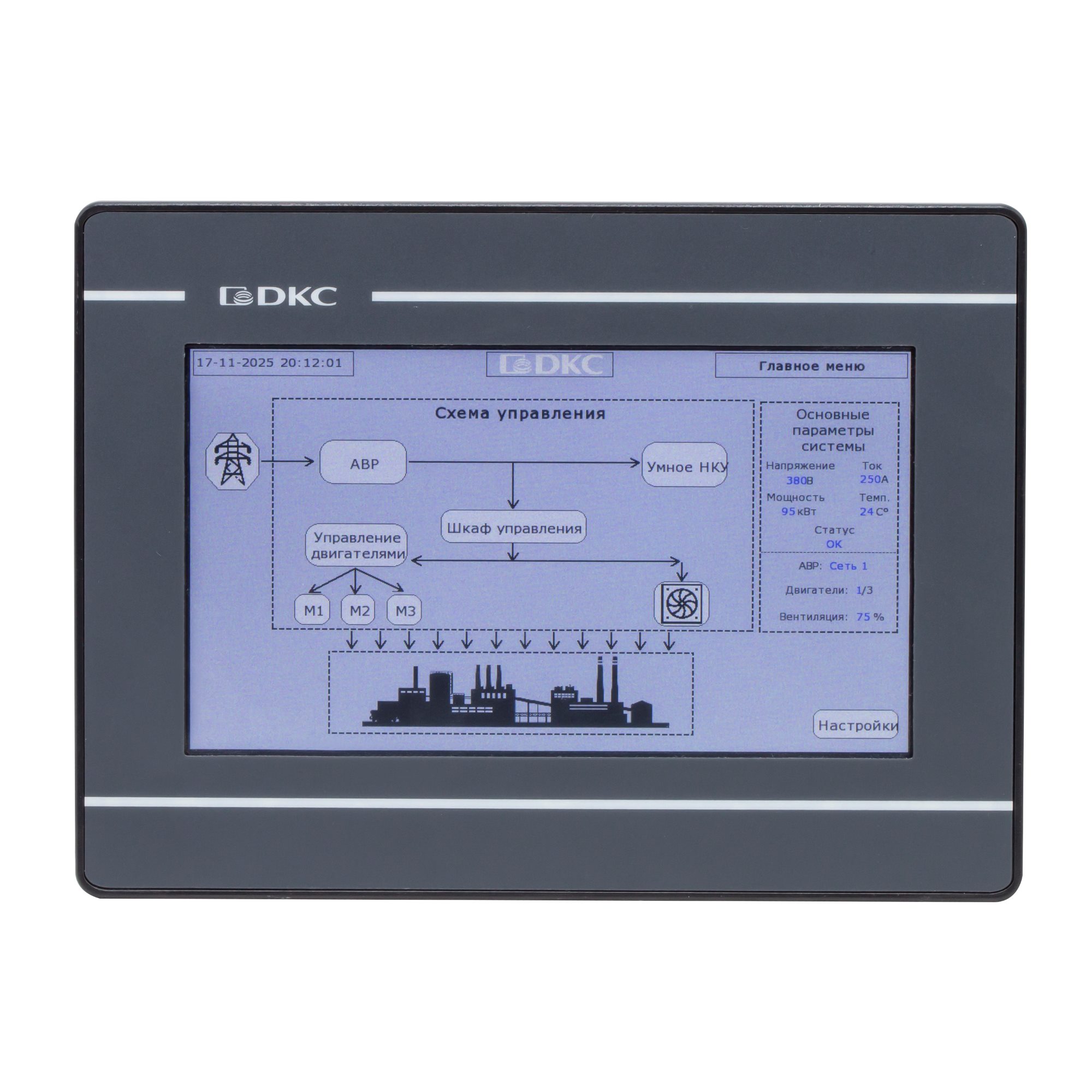

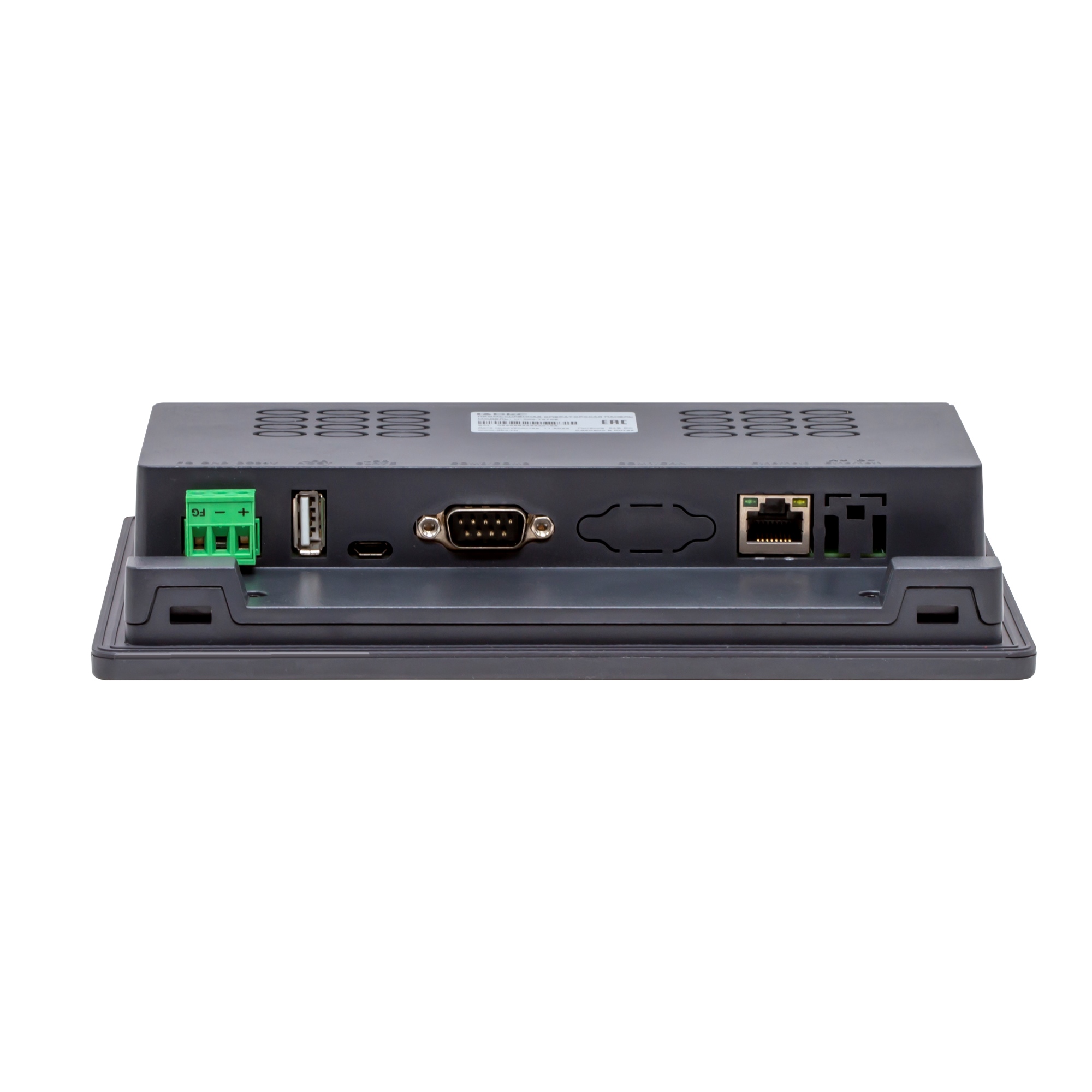

Industrial operator terminal, display size 7", 16,77М color TFT display, 800*480 px resolution, 2 COM ports, 1 USB HOST, 1 Micro USB, 1 Ethernet port
Code:
H1000-T070E
Code:
H1000-T070E
| Built-in depth, mm | 37.2 |
| Screen diagonal, inch | 7 |
| Operating temperature, °C | 0...50 |
| Voltage type of supply voltage | DC |
| Number of HW-interfaces industrial Ethernet | 1 |
| Number of HW-interfaces RS-232 | 2 |
| Number of HW-interfaces RS-422 | 1 |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces USB | 1 |
| Supporting protocol for Modbus | Yes |
| With colour display | Yes |
| Number of colours of the display | 16770000 |
| Number of pixels, horizontal | 800 |
| Number of pixels, vertical | 480 |
| Degree of protection (IP), front side | IP65 |
| Height of the front, mm | 150 |
| Supply voltage DC, V | 10...28 |
| Type of display | TFT |
| Rail mounting possible | No |
| Touch technology | Resistive touch |
