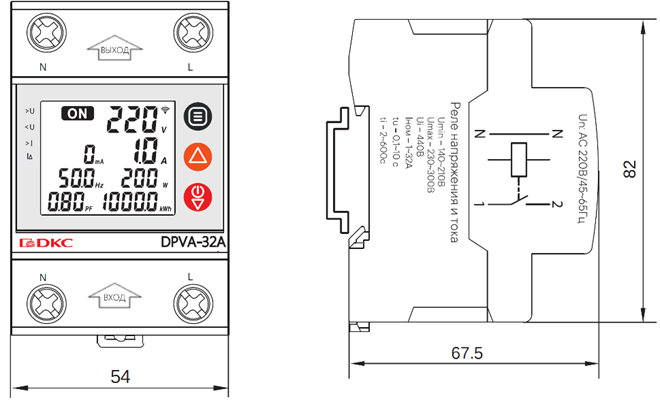

| Width, mm | 54 |
| Height, mm | 82 |
| Depth, mm | 67.5 |
| With detachable clamps | No |
| Single-phase under voltage possible | Yes |
| Three-phase under voltage possible | No |
| Single-phase over voltage possible | Yes |
| Three-phase over voltage possible | No |
| Single-phase hysteresis possible | Yes |
| Three-phase hysteresis possible | No |
| Contains function DC-under voltage | No |
| Contains function DC-over voltage | No |
| Contains function DC-voltage hysteresis | No |
| Type of voltage measurement range | AC |
| Type of electric connection | Screw connection |
| Rated control supply voltage Us at AC 50HZ, V | 80...240 |
| Voltage measurement range 1, V | 140...210 |
| Voltage measurement range 2, V | 230...300 |
| Rated switch current, A | 63 |
| Max. permitted delay-on energization time, s | 600 |
| Min. adjustable delay-on energization time, s | 2 |
| Max. permitted off-delay time, s | 10 |
| Min. adjustable off-delay time, s | 0.1 |
| Voltage type for actuating | AC |
| Number of contacts as change-over contact | 1 |
