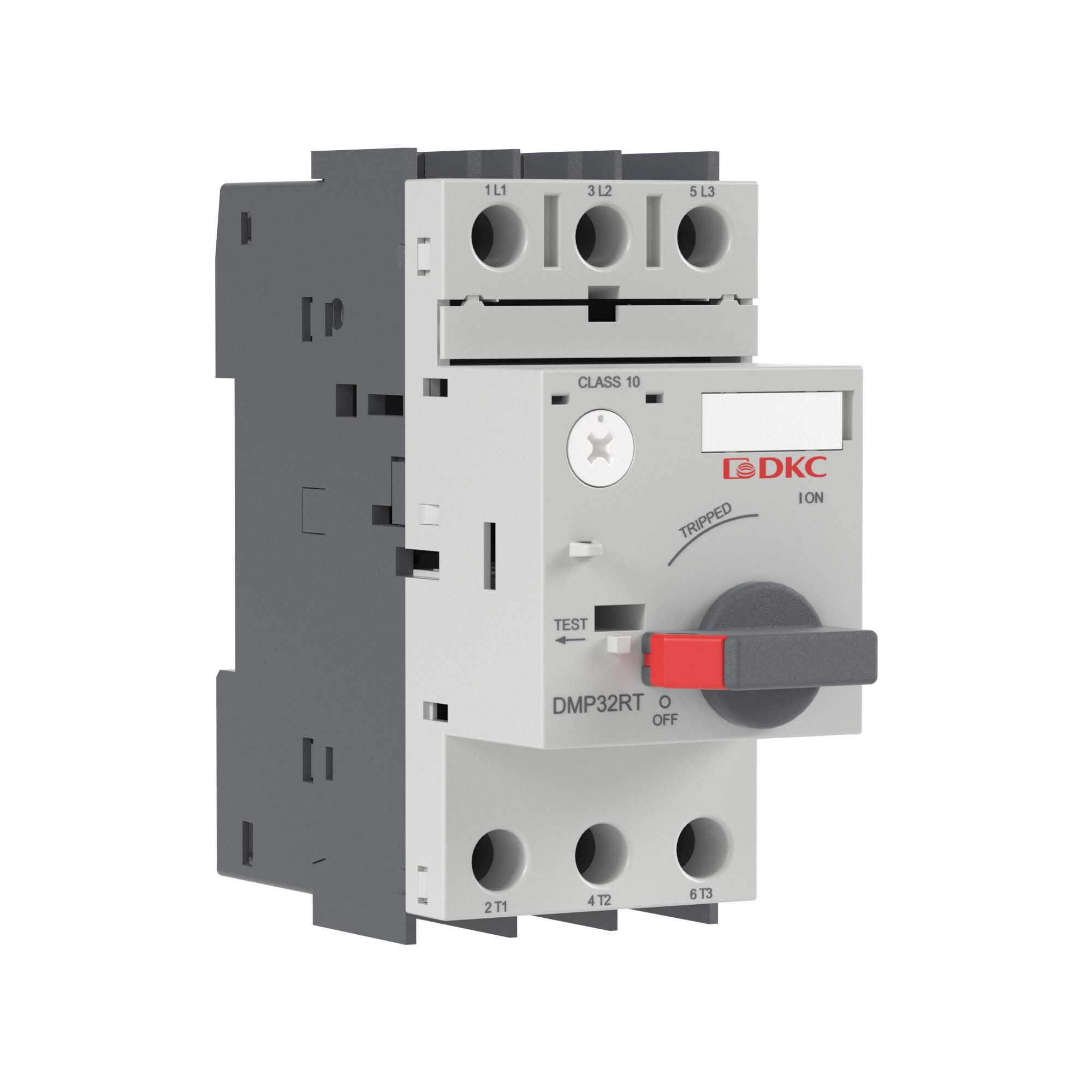

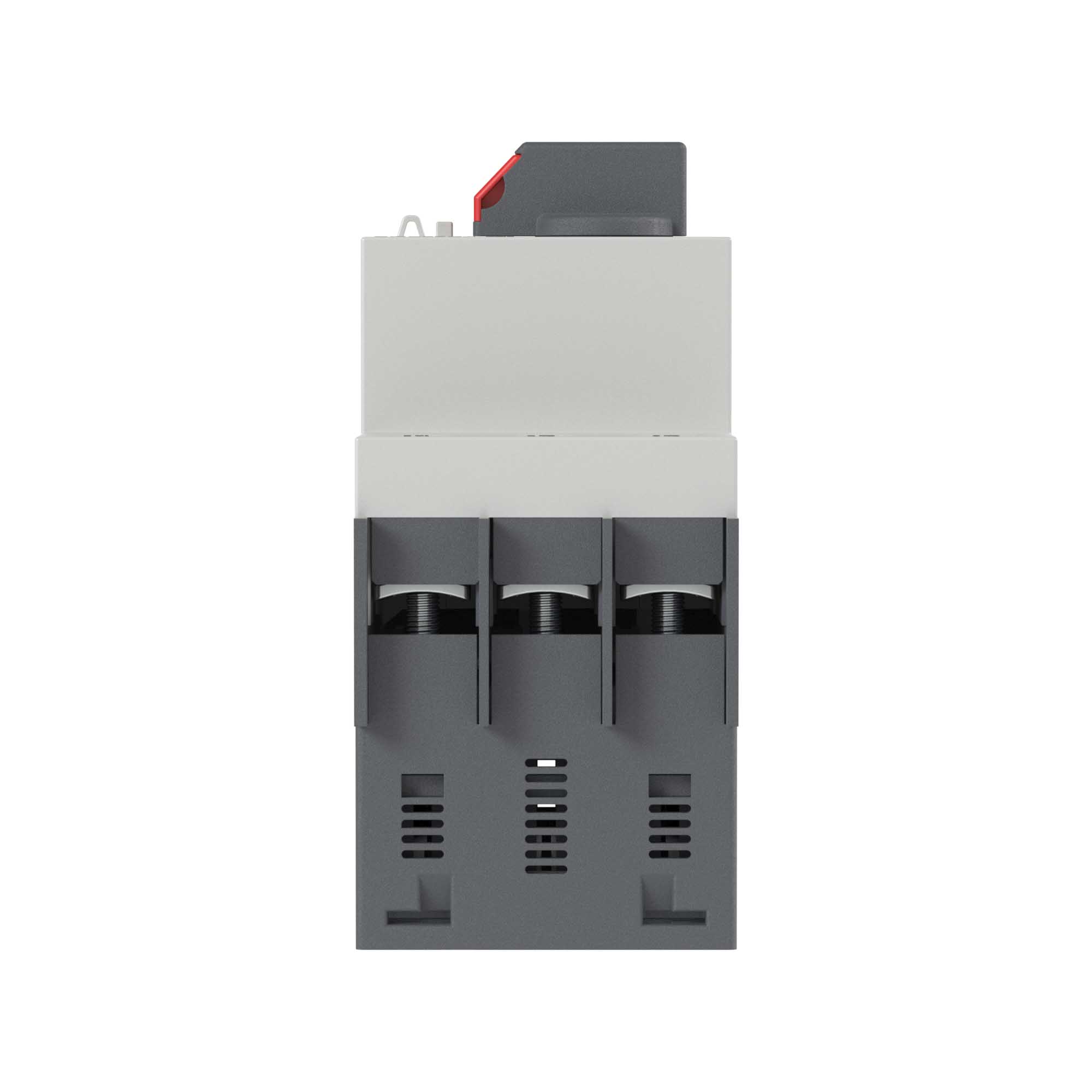

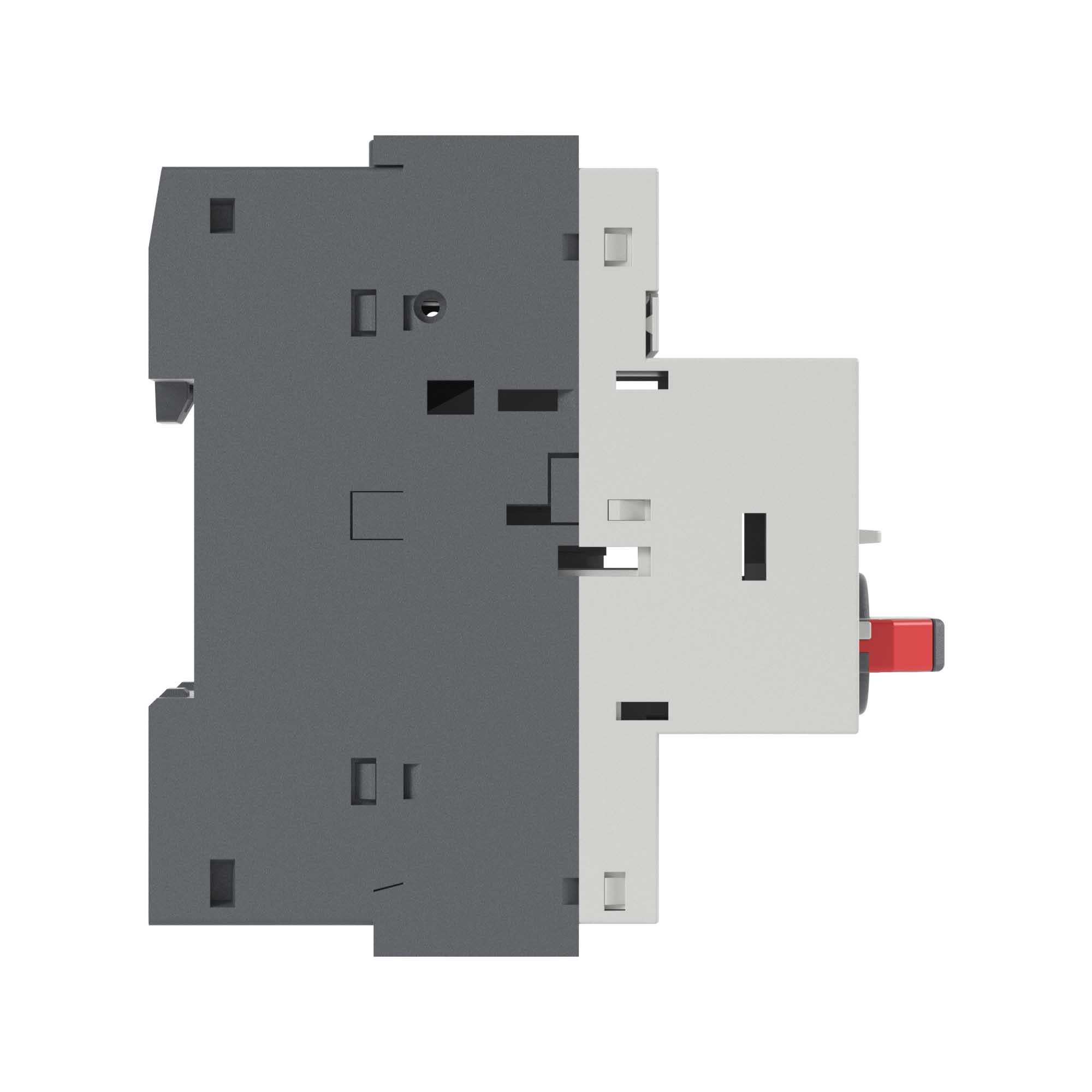

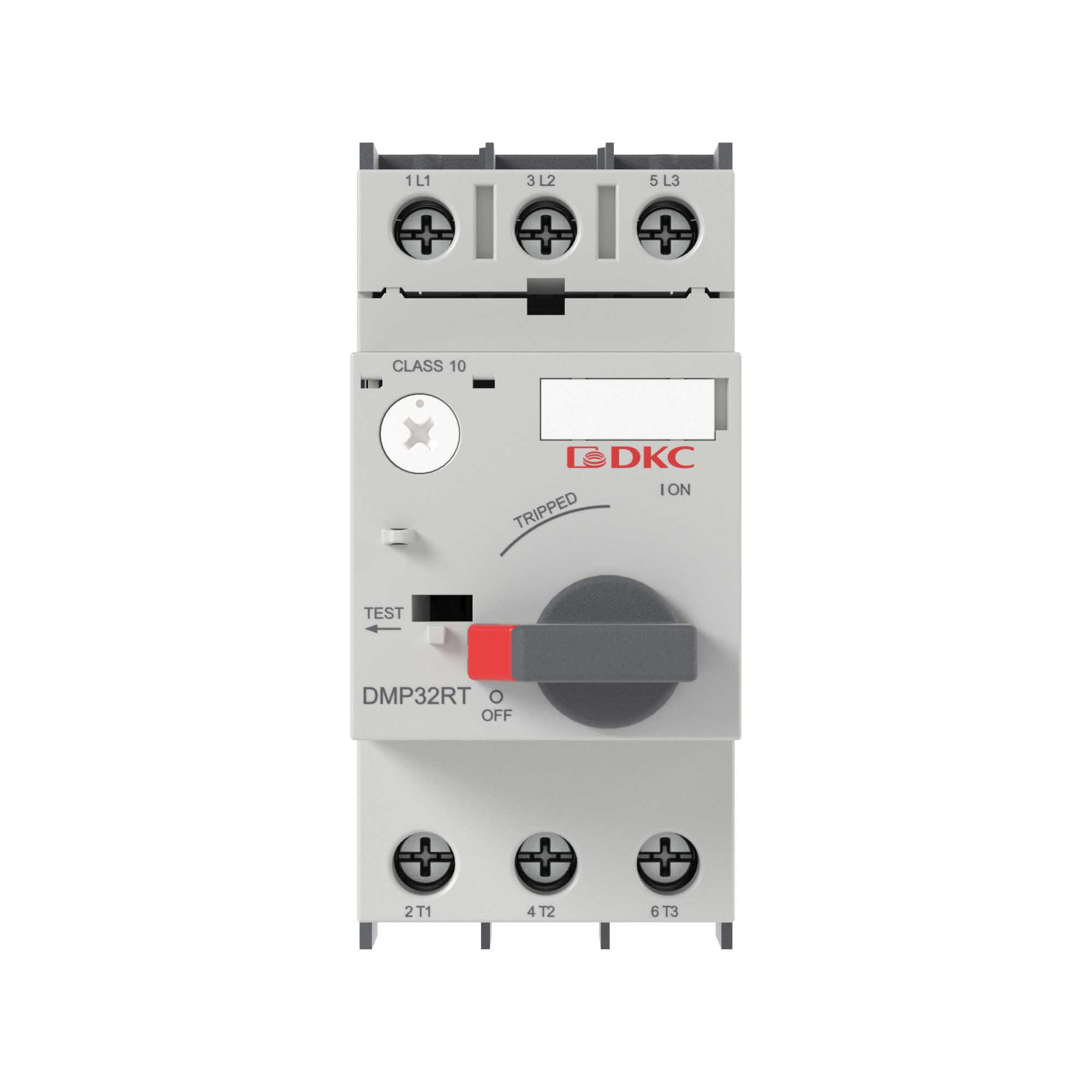

MP132TS2L16 MPCB 32A with Thermal and Magnetic Trip 0.1 ~ 0.16 A
Code:
DMP32RT-0P16
Code:
DMP32RT-0P16
| Width, mm | 45 |
| Height, mm | 97.3 |
| Depth, mm | 96 |
| With integrated auxiliary switch | No |
| With integrated under voltage release | No |
| Number of poles | 3 |
| Rated operating voltage, V | 400...400 |
| Overload release current setting, A | 0.1...0.16 |
| Degree of protection (IP) | IP20 |
| With thermal protection | Yes |
| Type of electrical connection of main circuit | Screw connection |
| Type of control element | Turn button |
| Switch off technique | Thermomagnetic |
| Rated short-circuit breaking capacity lcu at 400 V, AC, kA | 100 |
| Phase failure sensitive | Yes |
| Device construction | Complete device in housing |
| Rated permanent current Iu, A | 0.16 |
| Adjustment range undelayed short-circuit release, A | 2.08...2.08 |
| Number of contacts as normally open contact | 3 |
| Type of contactors | DMP32 |
| Tripping type | Thermal + Magnetic |
| Overload protection | Yes |
| Current Adjustment Range | 0.1 - 0.16 A |
| Breaking capacity Icu at 400 V, AC | 100 kA |
| Mechanical life | 100 000 oper |
| Electrical endurance | 100 000 oper |
| Russian Classification of Products by Economic Activities (OKPD 2) | 27.12.22.000 |
| Commodity Nomenclature of Foreign Economic Activity | 8536201007 |
