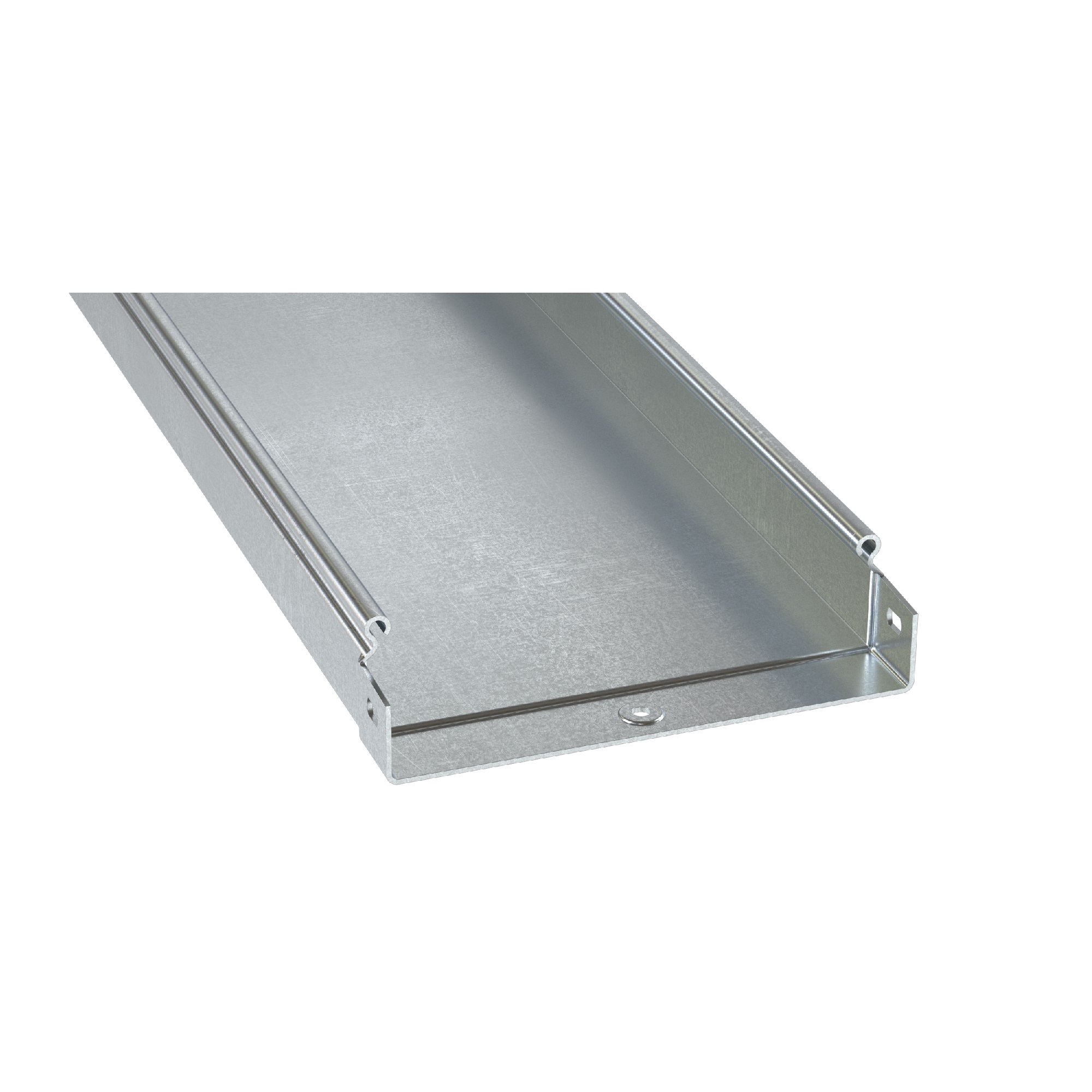

Non Perforated Straight Element 500х35 L3000
Code: SNS33550
Non Perforated Straight Element 500х35 L3000
Code: SNS33550
| Colour | Light grey |
| Width, mm | 500 |
| Height, mm | 35 |
| Material thickness, mm | 1 |
| Side wall perforation | Yes |
| Length, mm | 3000 |
| Material | Steel |
| Useful cross section, mm² | 17430 |
| Surface protection | Sendzimir galvanized |
| Material quality | Steel |
| Model | Without connector |
| Mounting perforation in bottom | Yes |
| Suitable for circuit integrity | Yes |
| Wide span model | Yes |
| Product type | Non perforated straight elements |
| Type | Metal sheet trays - " S5 Combitech" |
| Height | 35 mm |
| Length | 3000 mm |
| Thickness | 1 mm |
| Material | Pre-galvanized |
| Width | 500 mm |
Accessories
Analogs

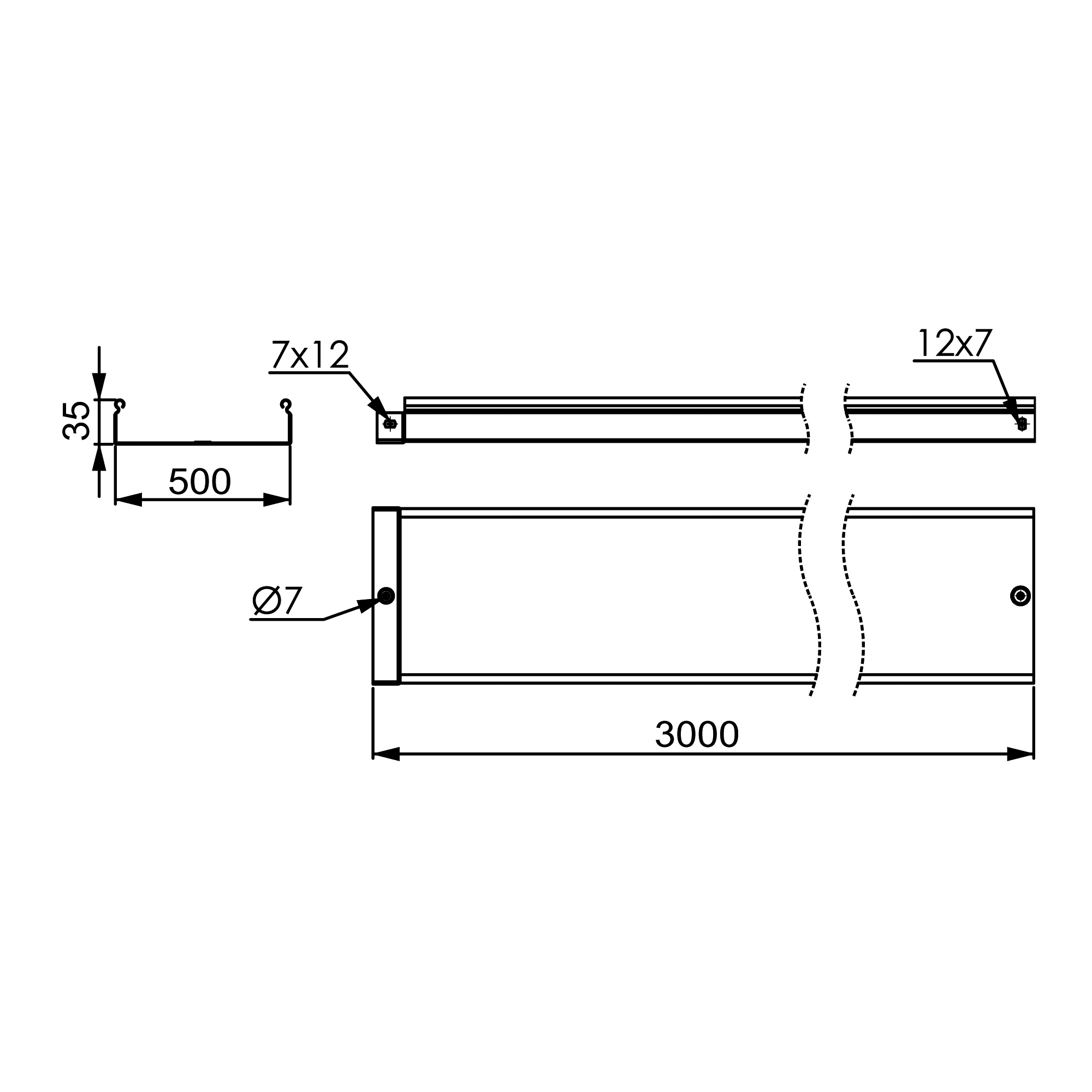

Drawings
| Seria | Name | AVEVA | DWG (dynamic.) | Autodesk Revit | Intergraph | SAT | STEP |
|---|---|---|---|---|---|---|---|
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
Certificates
| Name | Document |
|---|---|
