Code: MD63S-4PB10

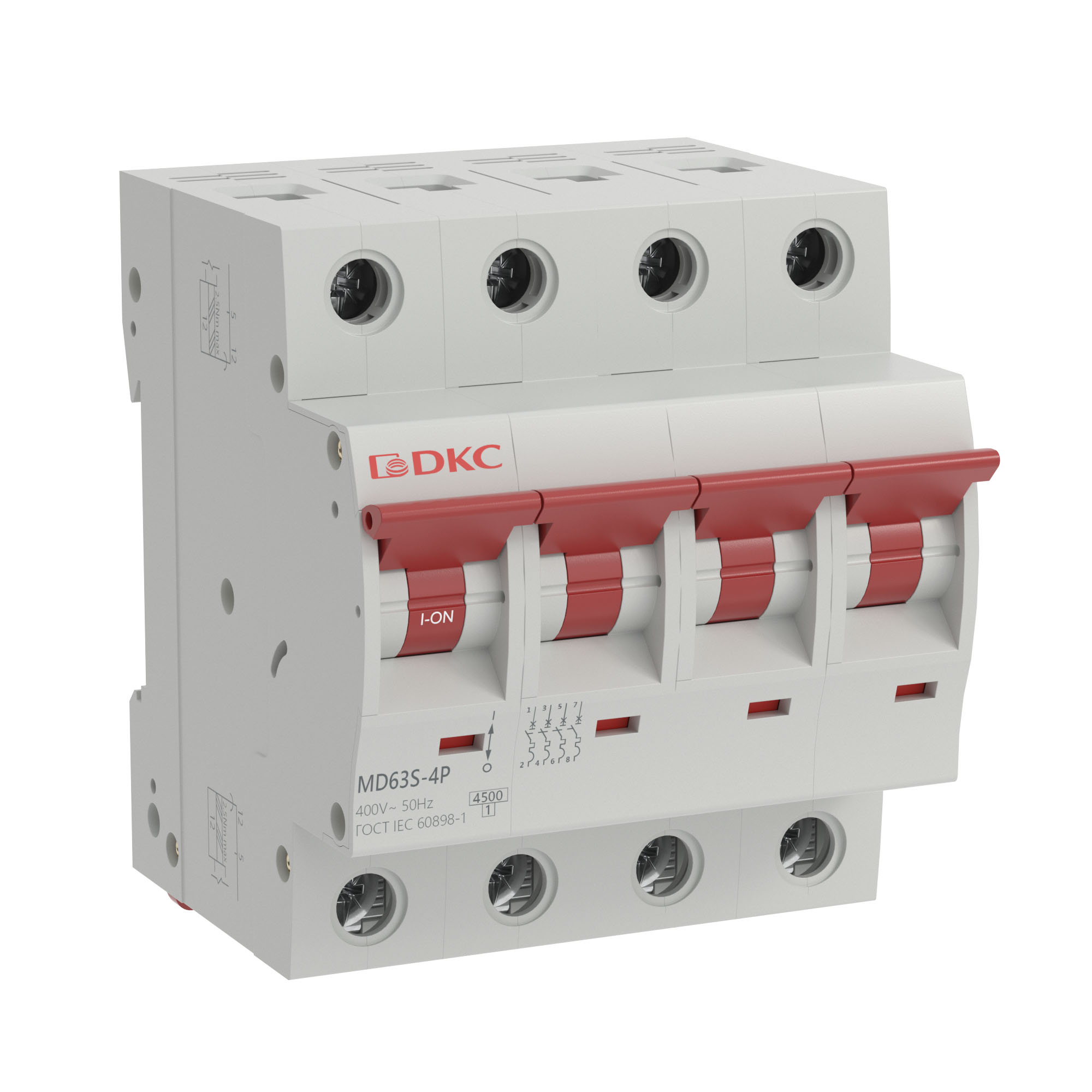

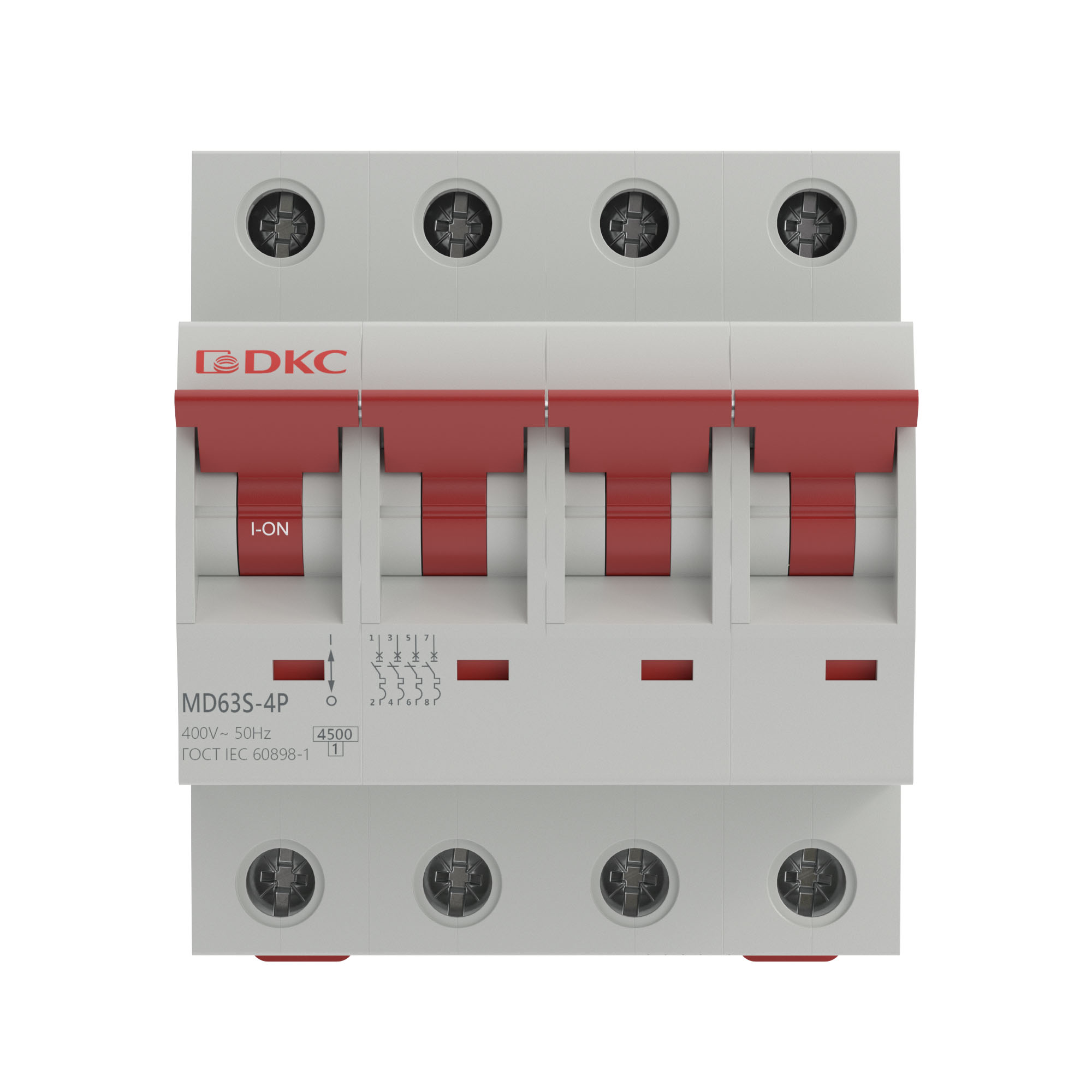

Miniature circuit breaker YON max , type MD63S, 4,5kA, 4P, curve B, 10A
Miniature circuit breaker YON max , type MD63S, 4,5kA, 4P, curve B, 10A
Code: MD63S-4PB10
  • To ask a question
  • Characteristics
  • Accessories
  • The accompanying goods
  • Promo
  • Viewed items
  • News
Voltage type AC
Rated current, A 10
Rated voltage, V 400
Frequency, Hz 50...50
Release characteristic B
Rated insulation voltage Ui, V 500
Current limiting class 1
Over voltage category 4
Pollution degree 3
Width in number of modular spacings 4
Degree of protection (IP) IP20
Number of protected poles 4
Concurrently switching N-neutral Yes
Connectable conductor cross section solid-core, mm² 25...25
Connectable conductor cross section multi-wired, mm² 16...16
Ambient temperature during operating, °C -25...40
Additional equipment possible Yes
Number of poles (total) 4
Rated short-circuit breaking capacity Icn EN 60898 at 400 V, kA 4.5
Rated short-circuit breaking capacity Icn EN 60898 at 230 V, kA 4.5
Rated impulse withstand voltage Uimp, kV 4
Rated short-circuit breaking capacity 4.5
