| Mounting method | DIN rail (top hat rail) 35 mm |
| Colour | Blue |
| Imprint | None |
| Rated voltage, V | 300 |
| Number of poles | 1 |
| Length, mm | 24.67 |
| Operating temperature, °C | -40...+105 |
| Inflammability class of insulation material according to with UL94 | V0 |
| Width/grid dimension, mm | 23.5 |
| Height at lowest possible mounting height, mm | 26 |
| Closing plate required | No |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Screw connection |
| PEN function possible | Yes |
| Number of levels | 1 |
| Number of clamp positions per level | 1 |
| Internally connected stages | Yes |
| Connectable conductor cross section solid-core, mm² | 0.5...6 |
| Connectable conductor cross section fine-strand without cable end sleeve, mm² | 0.5...4 |
| Connectable conductor cross section multi-wired, mm² | 0.5...4 |
| Material insulation body | Polyamide (PA) |
| Connection position | Sideways |
| Rated current In, A | 41 |

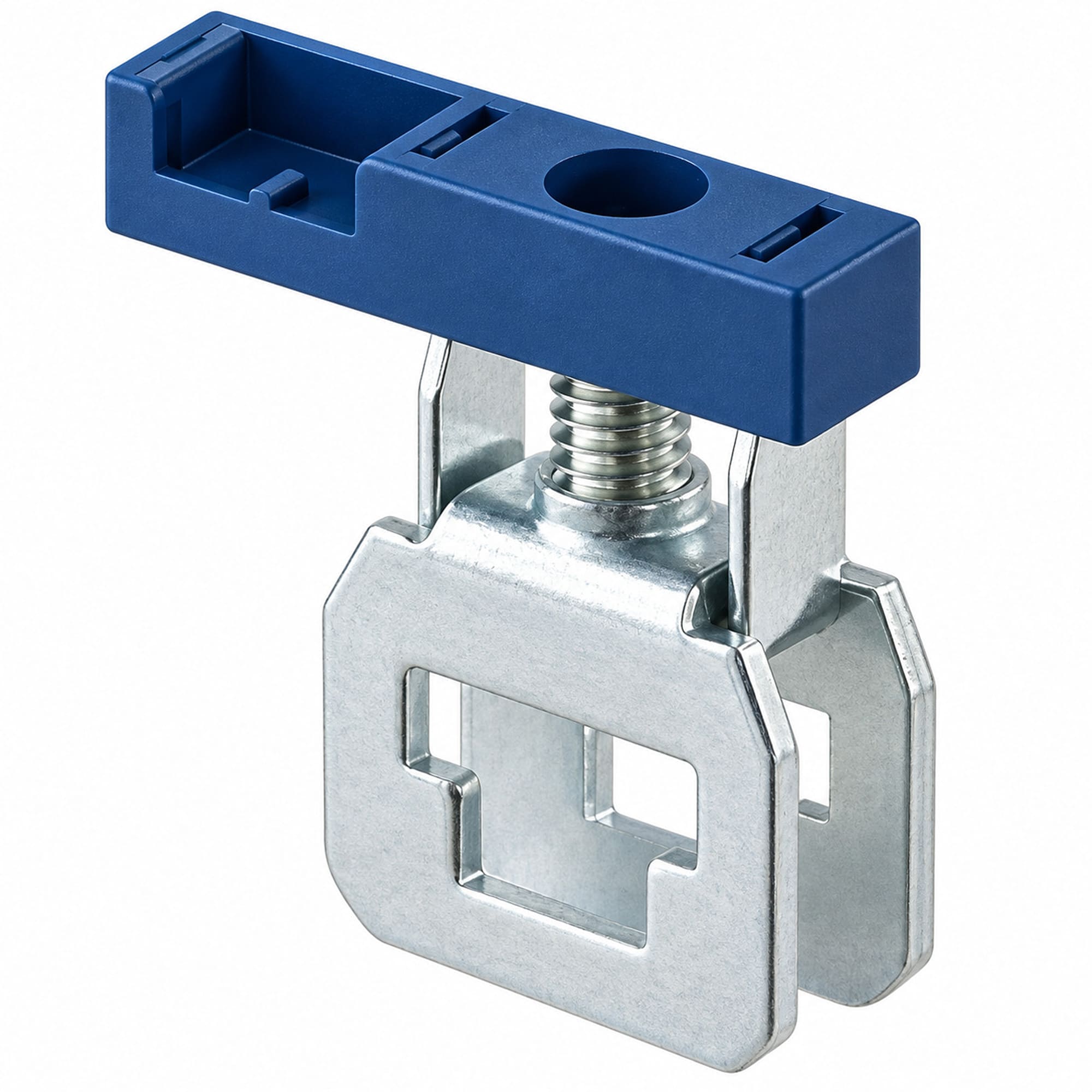

| Product type | Terminal block |
| Function | Bus-bar connection |
| Clamp type | Screws |
| Width | 6,8 mm |
| Number of levels | 1 |
| Number of connection points | 1 |
| Rated cross-section | 4 mm2 |
| Max. cross-section | 6 mm2 |
| Max.current | 41 A |
| Screw size | M4 |
| Tightening torque | 1,5−1,8 N∙m |
| Blade size | 0,6 × 3,5 |
| Material of case | PA |
