Material PVC
Height, mm 50
Width, mm 500
Length, mm 3000
Average filled area, sq.mm 24500
Thickness of metal sheet, mm 1
Perforation YES
Colour Light grey
Width, mm 500
Model Without connector
Height, mm 50
Surface protection Sendzimir galvanized
Material thickness, mm 0,9
Side wall perforation Yes
Material quality Other
Length, mm 3000
Material Steel
Mounting perforation in bottom Yes
Useful cross section, mm2 24500
Accessories
Joint Plate   h. 50
Code: 37301
Divider  h. 50 mt3
Code: 36480
Zinc paint spray 473 ml
Code: 37039HDZ

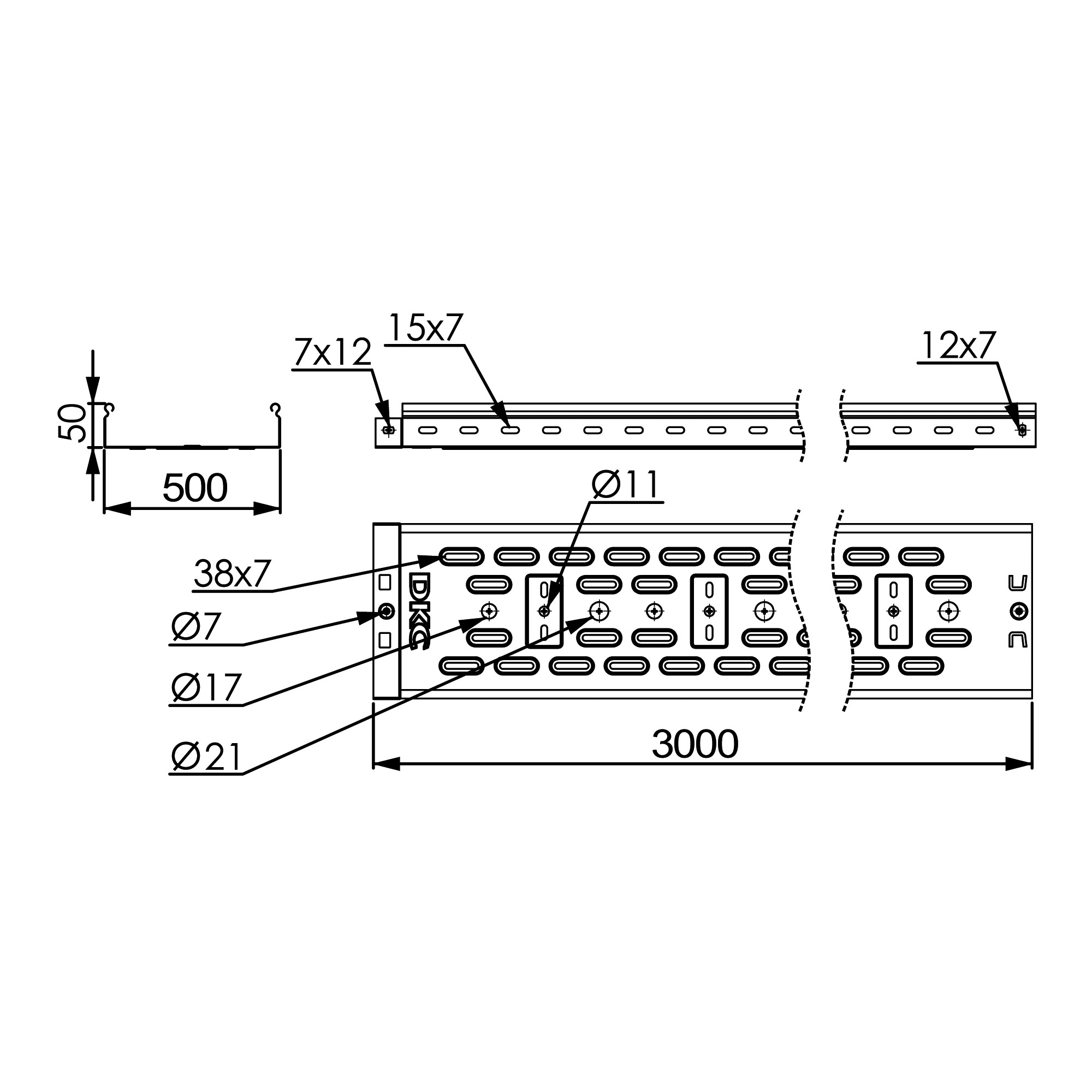

Drawings
Seria Name STEP SAT Intergraph Autodesk Revit DWG (dynamic blocks) AVEVA
S5 Combitech - metal sheet trays
S5 Combitech - metal sheet trays
S5 Combitech - metal sheet trays
S5 Combitech - metal sheet trays
S5 Combitech - metal sheet trays
S5 Combitech - metal sheet trays
Certificates
Name Document
