Double-wall tube HDPE rigid for cabling system ? 125 mm, SN 10, 750N, 5.7 m, red color
Code: 16091257
Double-wall tube HDPE rigid for cabling system ? 125 mm, SN 10, 750N, 5.7 m, red color
Code: 16091257
| Colour | Red |
| Model | Rigid |

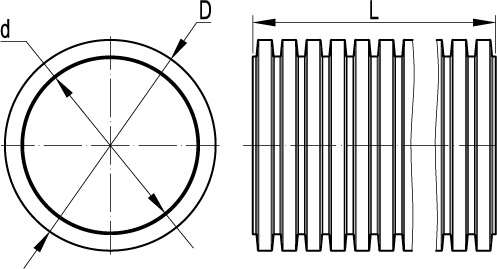

| Outer diameter, mm | 125 |
| Inner diameter, mm | 107 |
| Surface protection | Untreated |
| Material quality | Polyethylene (PE) |
| Shape | Outer side ribbed, inner side plain |
| Material | Plastic |
| Transparent | Yes |
| Surface polished | No |
| Length, mm | 5700 |
| Radius of bending (min) , mm | 5000 |
| Color | Red |
| Material | PVC |
| -5°С ... +60°С | -40°С ... +90°С |
| Ingress Protection rating, IP | IP44 (IP55) |
| от -25°С до +60°С | from -40°С to +90°С |
| Cord for wires | No |
| ТУ 2248-012-47022248-2009 | Technical specifications 2248-019-47022248-2008 |
| 3 года | 2 years |
| 15 лет | 50 years |
| Product type | Double-walled pipes |
| Ring stiffness | 10 kPa |
| Compression resistance | 980 N |
| Complete set of broaching | No |
| Packing type | Segments |
| Packing standards | 432\5.7 m |
