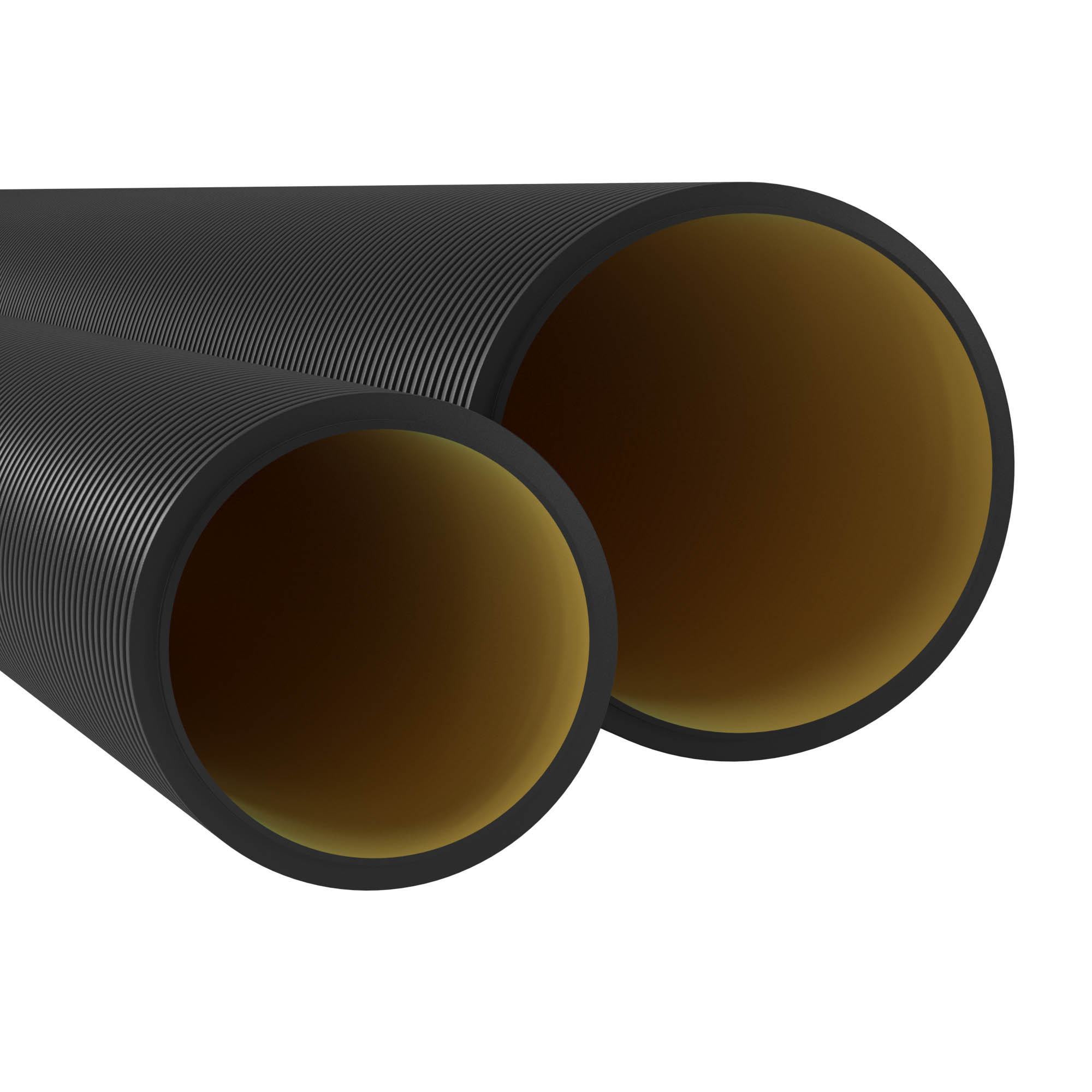

Double-wall tube HDPE rigid for cabling system ? 110 mm, SN 12, 750N, 5.7 m, black color
Code: 160911A57
Double-wall tube HDPE rigid for cabling system ? 110 mm, SN 12, 750N, 5.7 m, black color
Code: 160911A57
| Colour | Black |
| Model | Rigid |
| Outer diameter, mm | 110 |
| Inner diameter, mm | 91 |
| Surface protection | Untreated |
| Material quality | Polyethylene (PE) |
| Shape | Outer side ribbed, inner side plain |
| Material | Plastic |
| Transparent | Yes |
| Surface polished | No |
| Length, mm | 5700 |
| Radius of bending (min) , mm | 4400 |
| Color | Black |
| Material | PVC |
| -5°С ... +60°С | -40°С ... +90°С |
| Ingress Protection rating, IP | IP44 (IP55, IP67) |
| от -25°С до +60°С | from -40°С to +90°С |
| Cord for wires | No |
| ТУ 2248-012-47022248-2009 | Technical specifications 2248-019-47022248-2008 |
| 3 года | 2 years |
| 15 лет | 50 years |
| Ring stiffness | 12 kPa |
| Compression resistance | 1030 N |
| Complete set of broaching | No |
| Packing type | Segments |
| Packing standards | 630\5.7 m |
