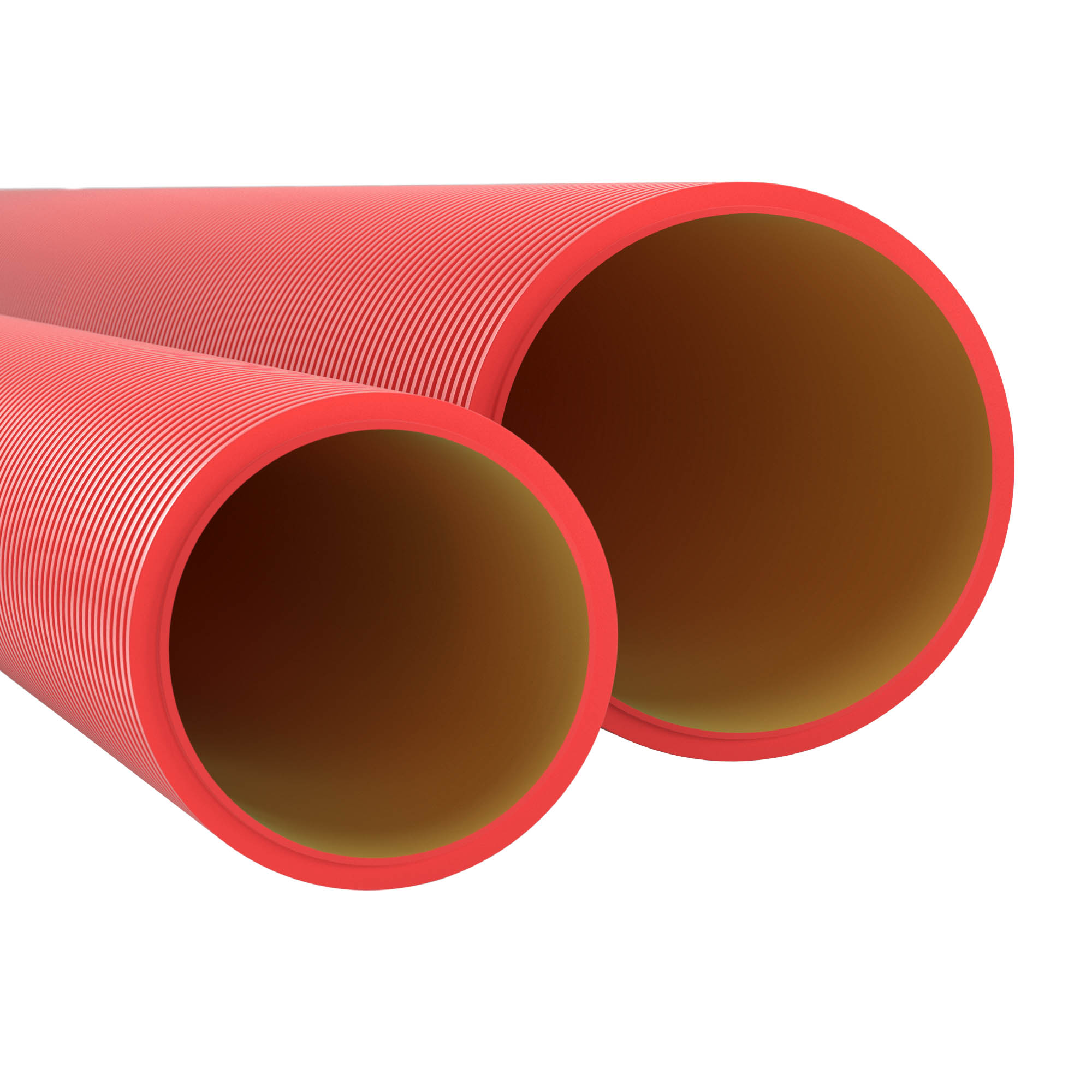

Double-wall tube HDPE rigid for cabling system ? 110 mm, SN 12, 750N, 6 m, red color

Code: 160911
Colour Red
Model Rigid

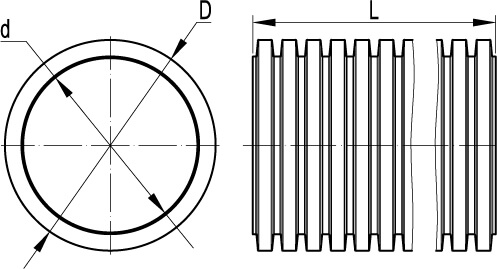

Outer diameter, mm 110
Inner diameter, mm 91
Surface protection Untreated
Material quality Polyethylene
-- No
Shape Outer side ribbed, inner side plain
Length, mm 6000
Temperature of mounting, °C -40°С ... +90°С
Ingress Protection rating, IP IP44 (IP55, IP67)
Temperature of operation, °C from -40°С to +90°С
Cord for wires No
Radius of bending (min) , mm 4400
