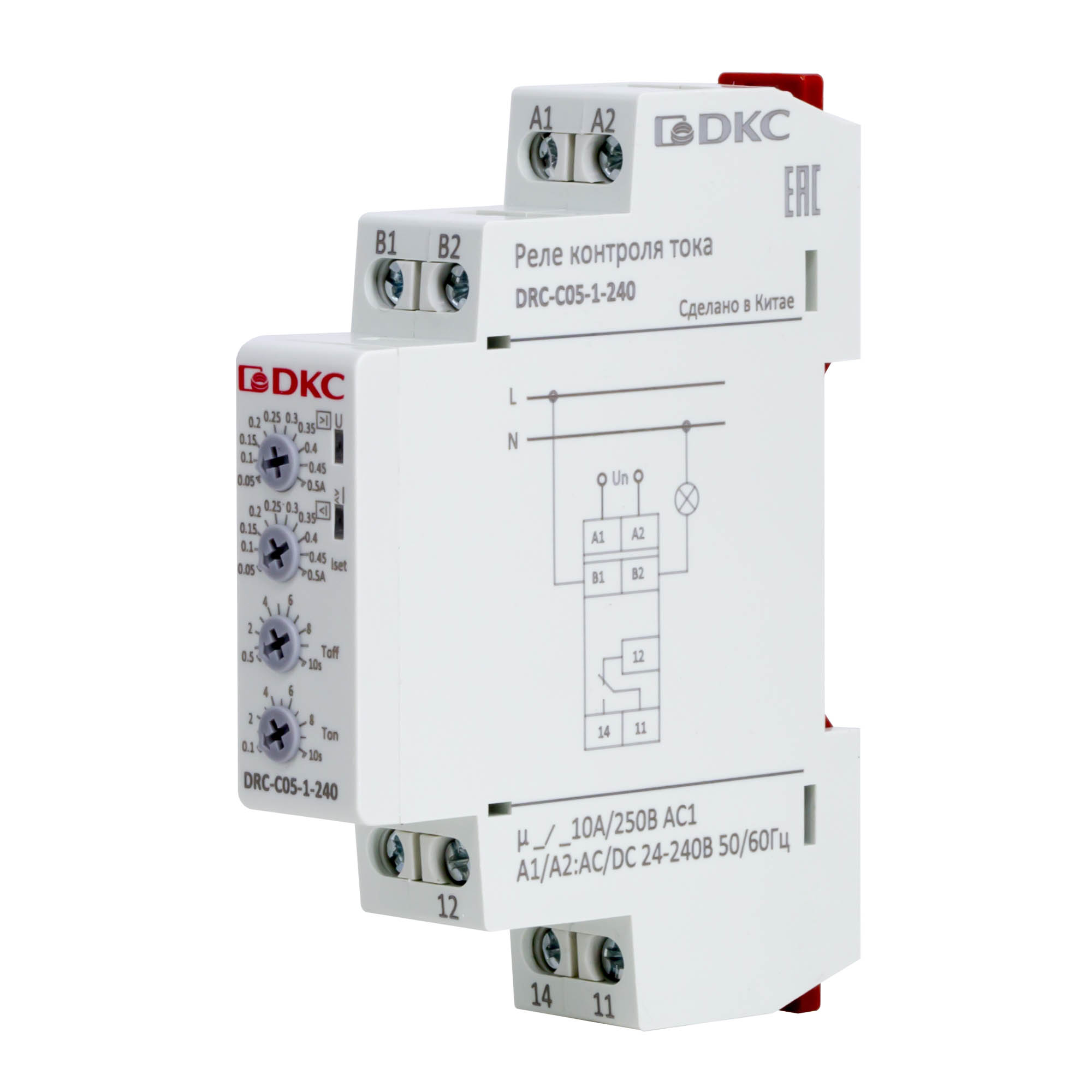

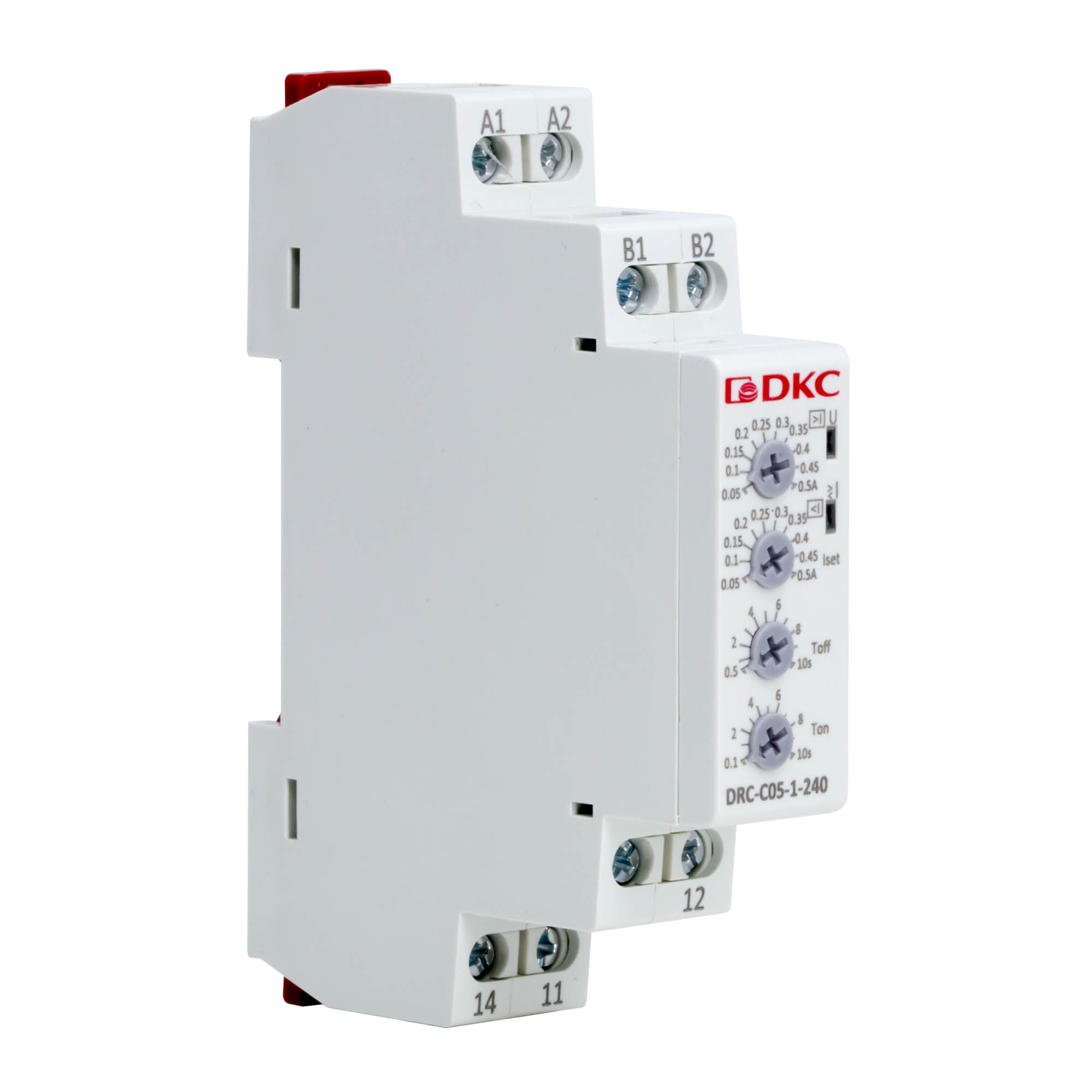

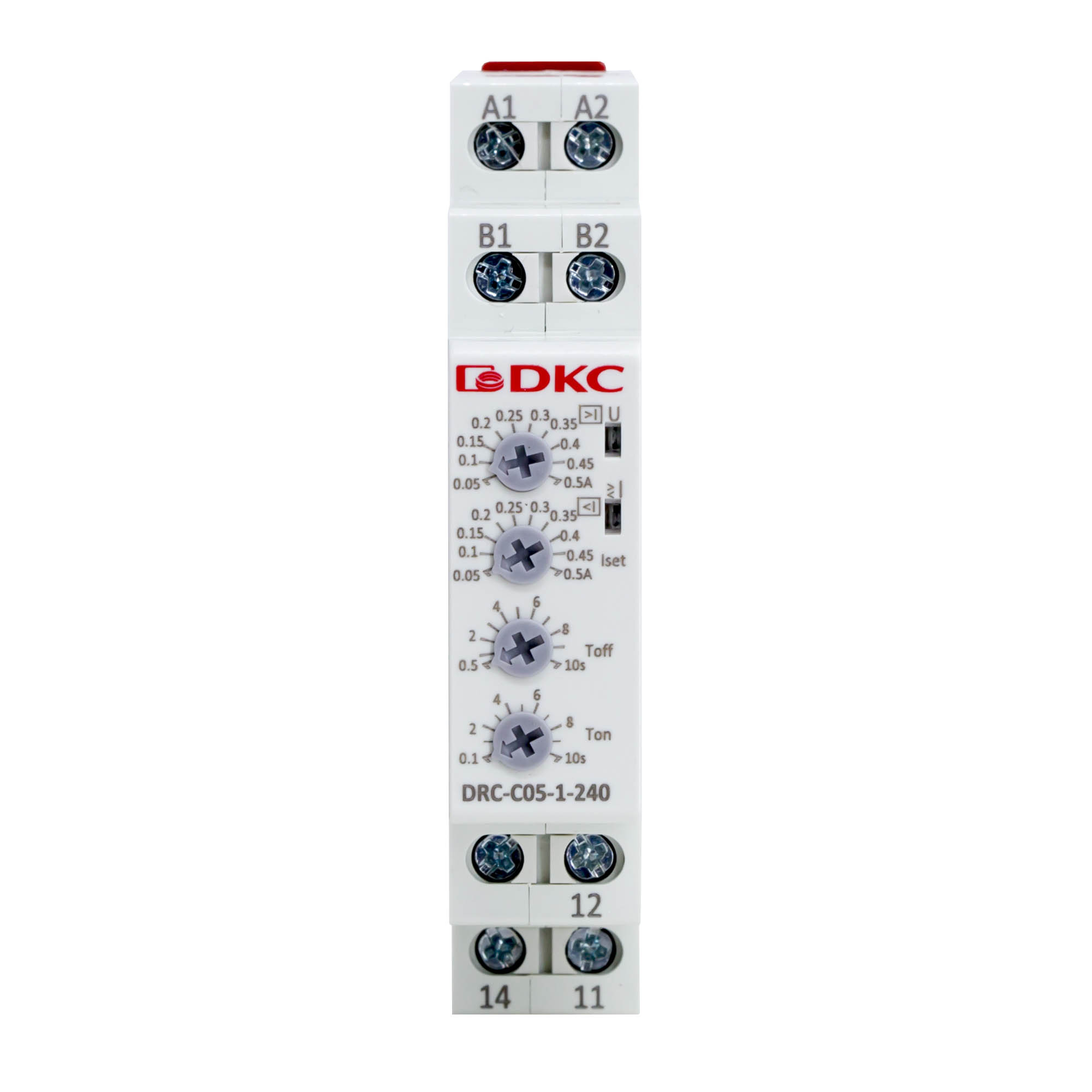

Current monitoring relay type DRC, 0.05-0.5А, contact configuration 1CO, 24-240 AC/DC
Code:
DRC-C05-1-240
Code:
DRC-C05-1-240

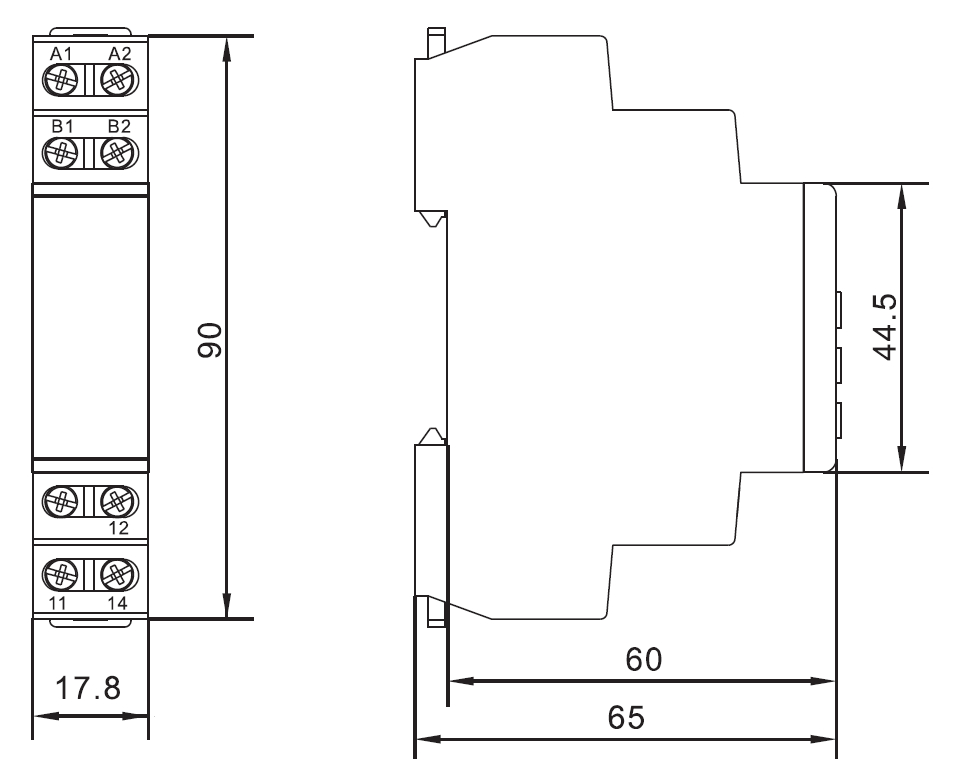

| Width, mm | 18 |
| Height, mm | 90 |
| Depth, mm | 65 |
| Current measurement range, A | 0.05...0.5 |
| Single-phase hysteresis possible | Yes |
| Single-phase under current possible | Yes |
| Three-phase under current possible | No |
| Single-phase over current possible | Yes |
| Three-phase over current possible | No |
| Type of electric connection | Screw connection |
| Rated control supply voltage Us at AC 50HZ, V | 24...240 |
| Rated control supply voltage Us at DC, V | 24...240 |
| Max. permitted off-delay time, s | 10 |
| Min. adjustable off-delay time, s | 0.1 |
| Voltage type for actuating | AC/DC |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 1 |
| Contains function DC-voltage under current | No |
| Contains function DC-voltage over current | No |
| Max. permitted delay-on energization time, s | 10 |
| Min. adjustable delay-on energization time, s | 0.1 |
| Three-phase hysteresis possible | No |
| Product type | Current monitoring relay |
| Rated voltage | AC/DC 24-240 V |
| Rated current | 10A |
| Number and type of contacts | 1СО |
| Number of phases | 1 |
| Current measurement range | 0,05 А-0,5 А |
