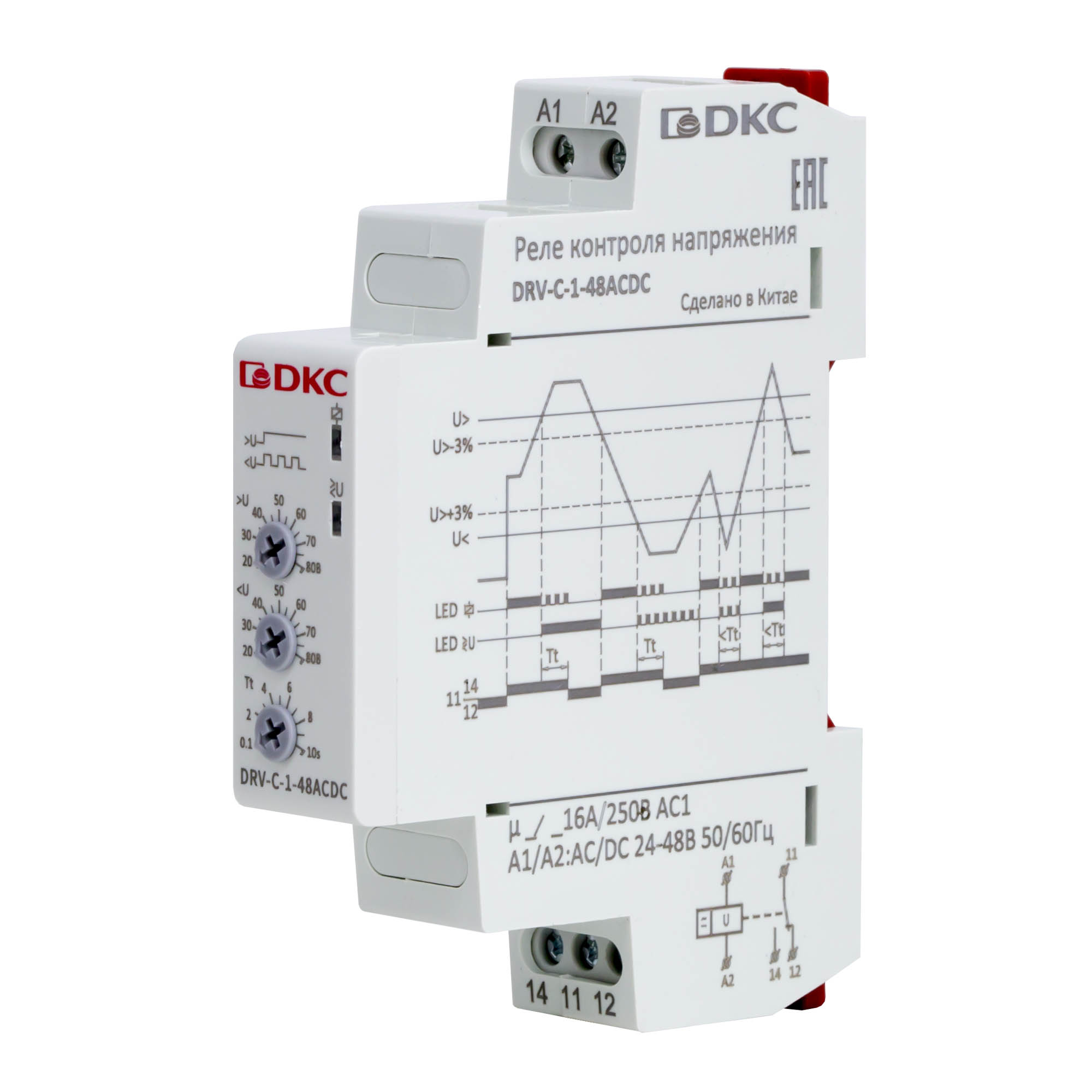

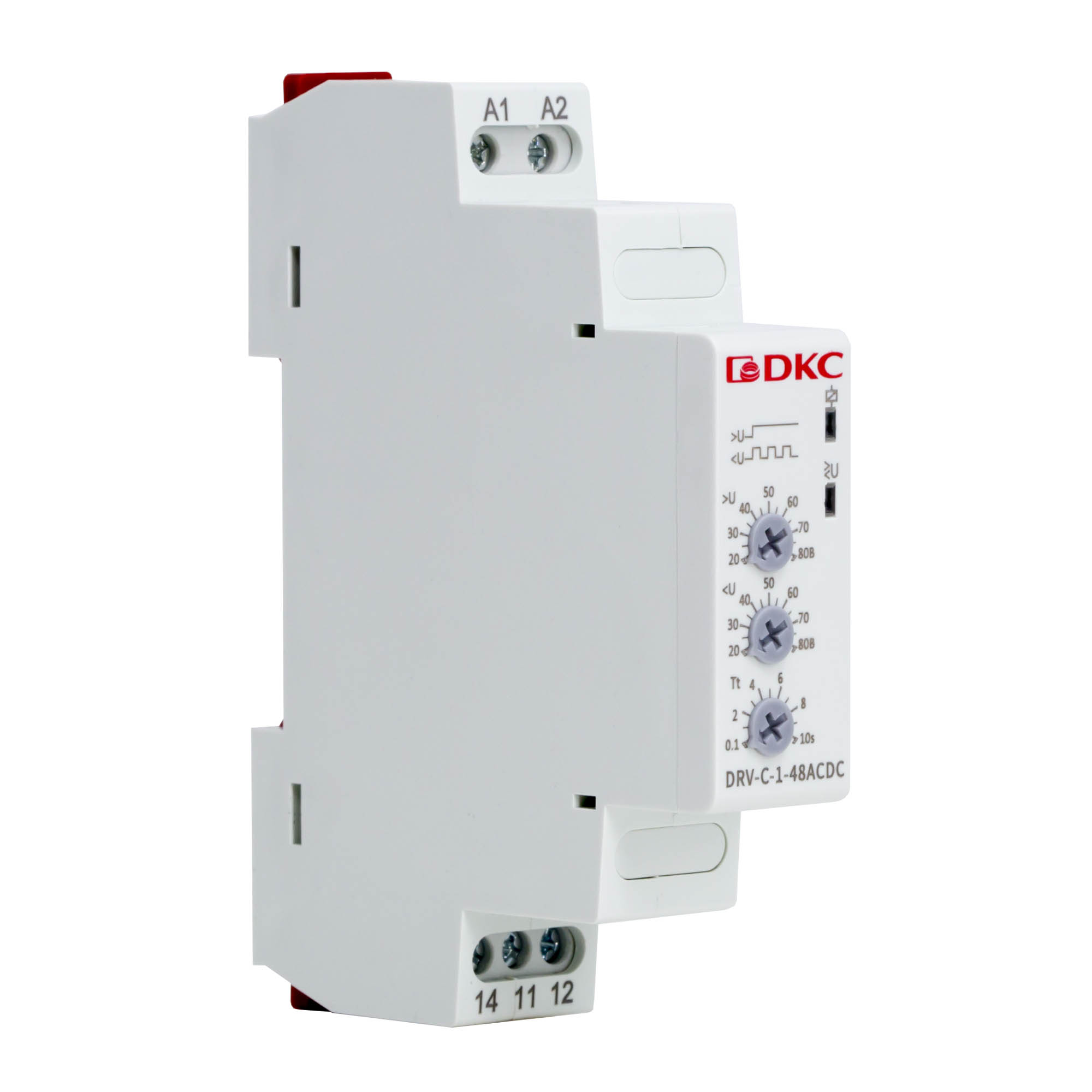

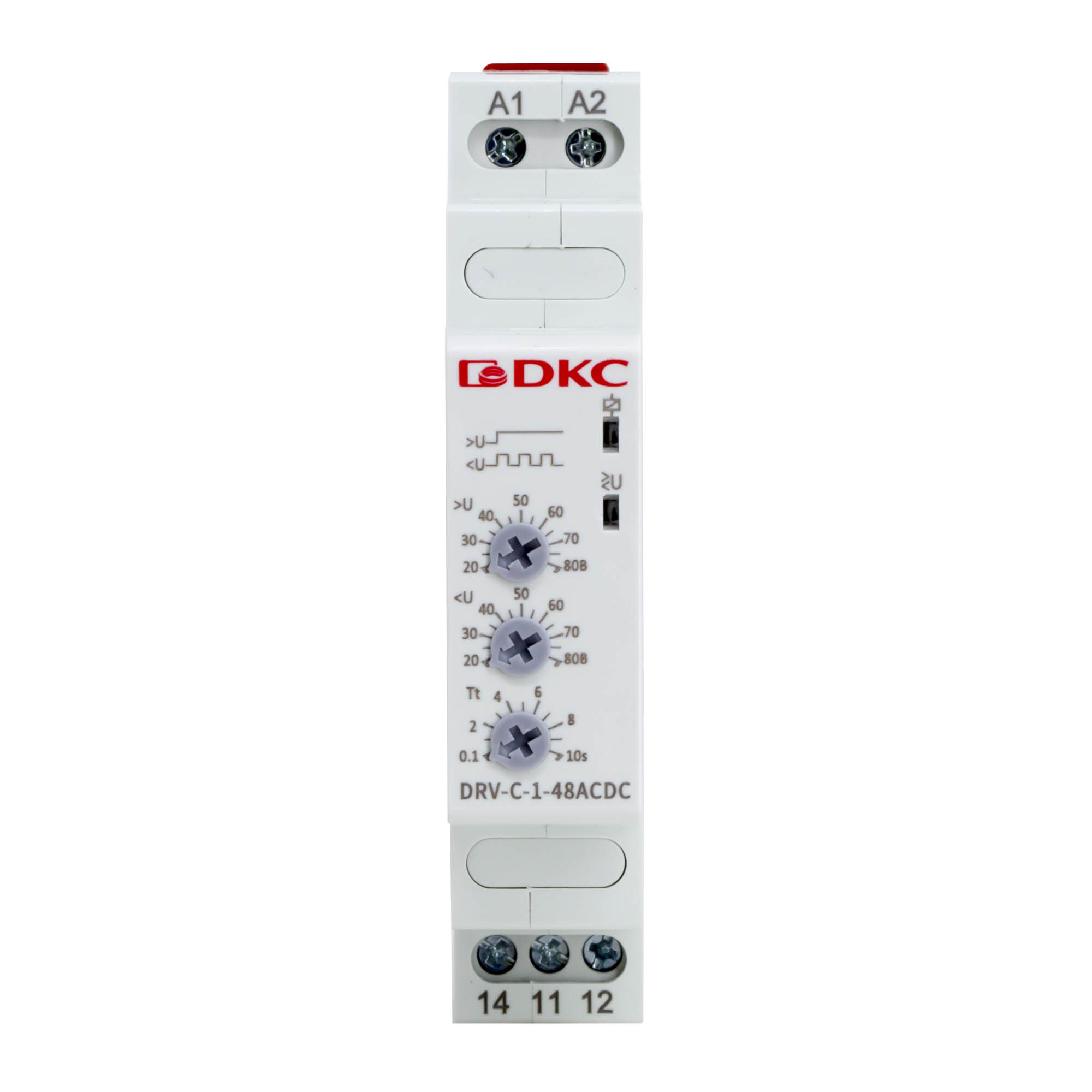

Single phase voltage monitoring relay type DRV, contact configuration 1CO, AC/DC 24..48V
Code:
DRV-C-1-48ACDC
Code:
DRV-C-1-48ACDC

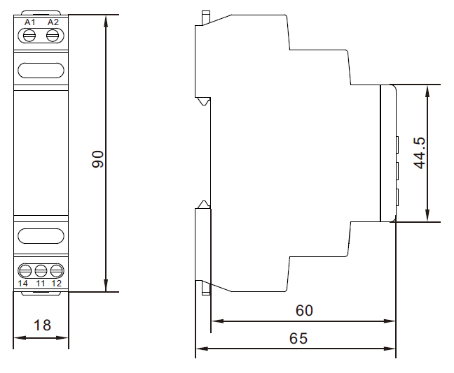

| Width, mm | 18 |
| Height, mm | 90 |
| Depth, mm | 65 |
| With detachable clamps | No |
| Single-phase under voltage possible | Yes |
| Three-phase under voltage possible | No |
| Single-phase over voltage possible | Yes |
| Three-phase over voltage possible | No |
| Single-phase hysteresis possible | Yes |
| Three-phase hysteresis possible | No |
| Contains function DC-under voltage | Yes |
| Contains function DC-over voltage | Yes |
| Contains function DC-voltage hysteresis | Yes |
| Type of voltage measurement range | AC/DC |
| Type of electric connection | Screw connection |
| Rated control supply voltage Us at AC 50HZ, V | 24...48 |
| Rated control supply voltage Us at DC, V | 24...48 |
| Voltage measurement range 2, V | 20...80 |
| Max. permitted off-delay time, s | 10 |
| Min. adjustable off-delay time, s | 0.1 |
| Voltage type for actuating | AC/DC |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 1 |
| Voltage measurement range 1, V | 20...80 |
| Product type | Voltage monitoring relay |
| Rated voltage | AC/DC 24-48 V |
| Rated current | 16A |
| Number and type of contacts | 1СО |
| Number of phases | 1 |
