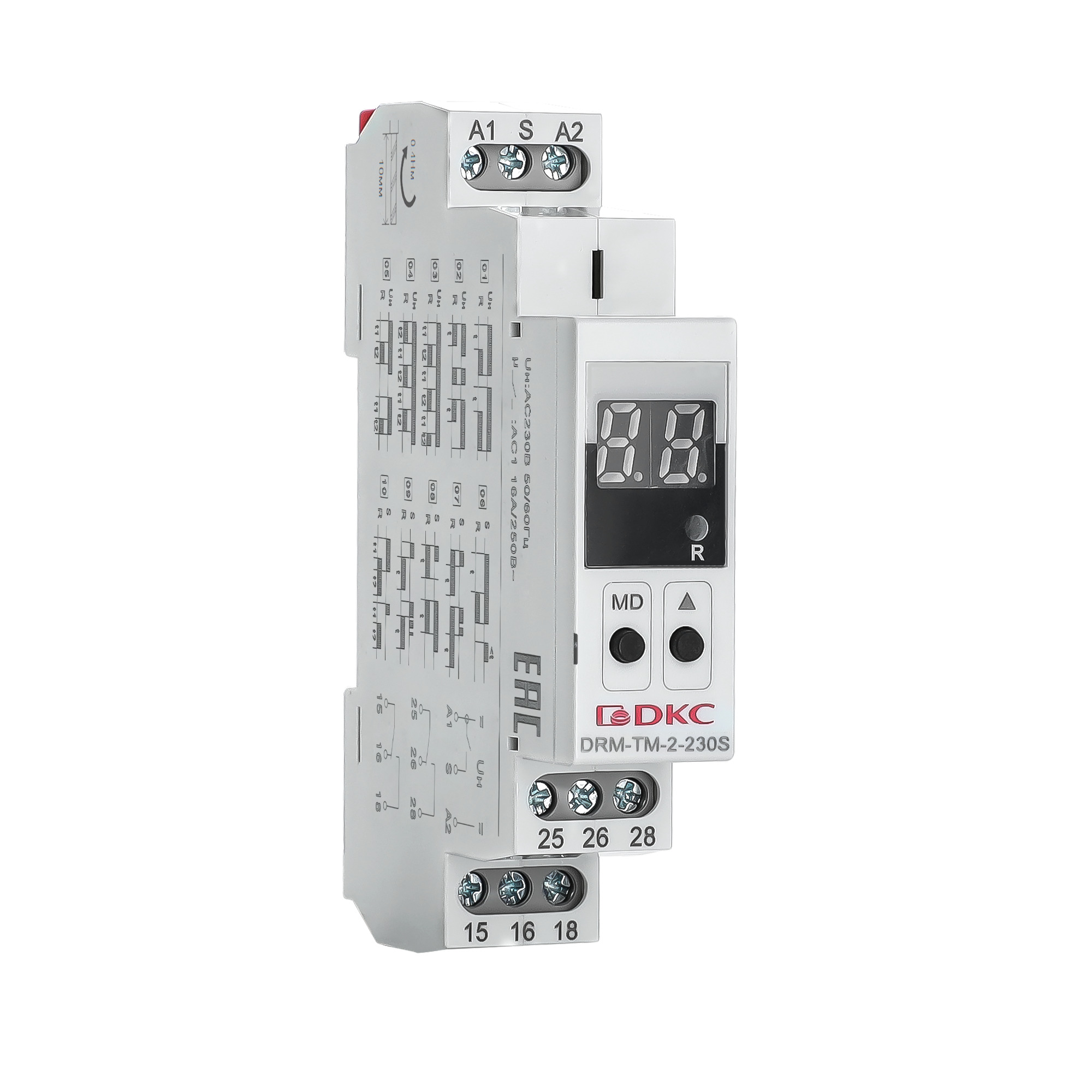

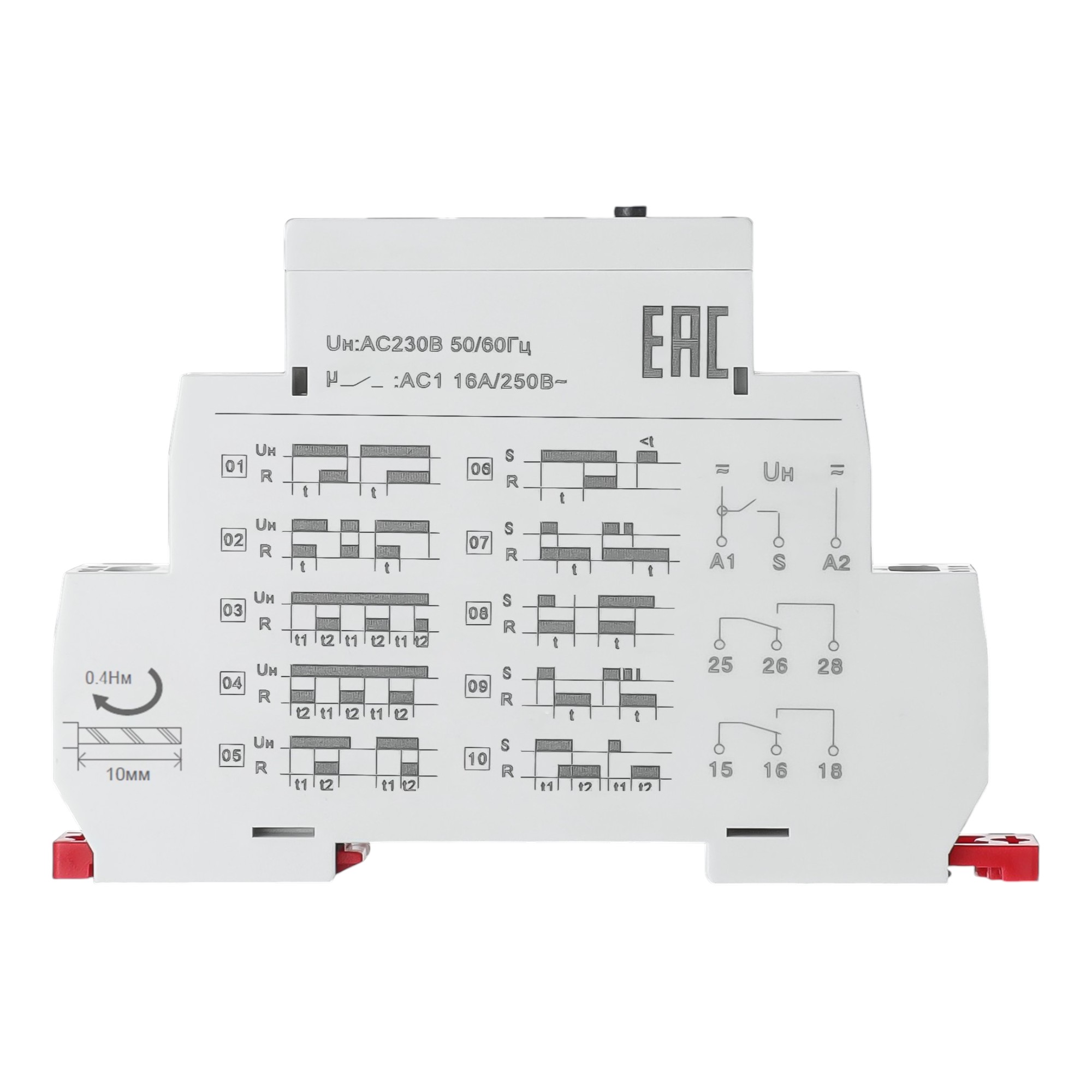

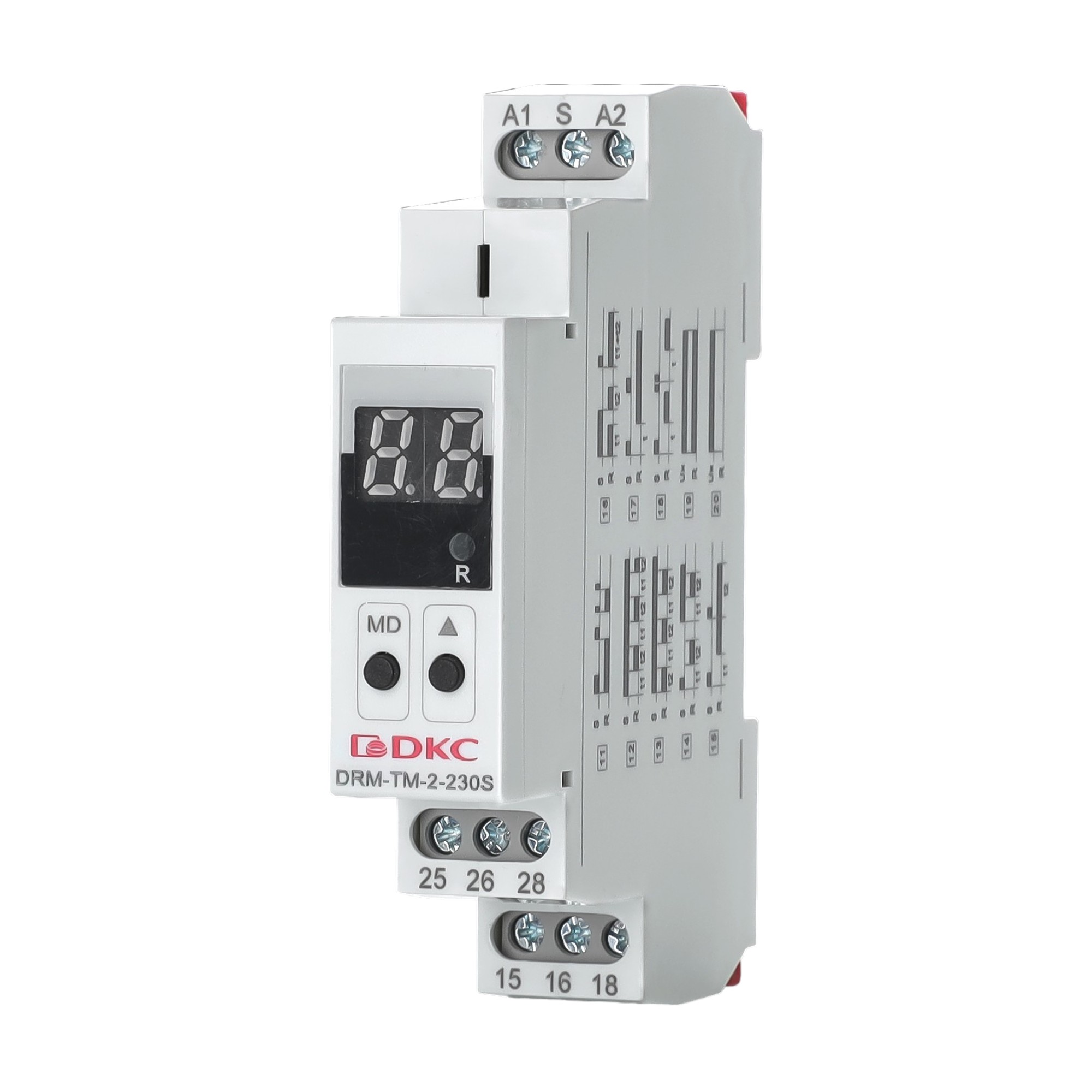

Multifunctional time relay with display, contact configuration 2CO, AC 230V
Code:
DRM-TM-2-230S
Code:
DRM-TM-2-230S
| Function flashing, starting with pause, fixed time | No |
| Function flashing, starting with pulse, fixed time | No |
| Clock function, starting with pause, variable | Yes |
| Clock function, starting with pulse, variable | No |
| Function delay-on energization | Yes |
| Function floating contact on energization | Yes |
| Function star-delta | No |
| Time range, s | 0.1...8640000 |
| Function delay on de-energization | No |
| Function floating contact on de-energization | No |
| Function pulse shaping | No |
| Rated control supply voltage Us at AC 50HZ, V | 230...230 |
| Rated control supply voltage Us at DC, V | 230...230 |
| Suitable for DIN rail (top hat rail) mounting | Yes |
| Voltage type for actuating | AC |
