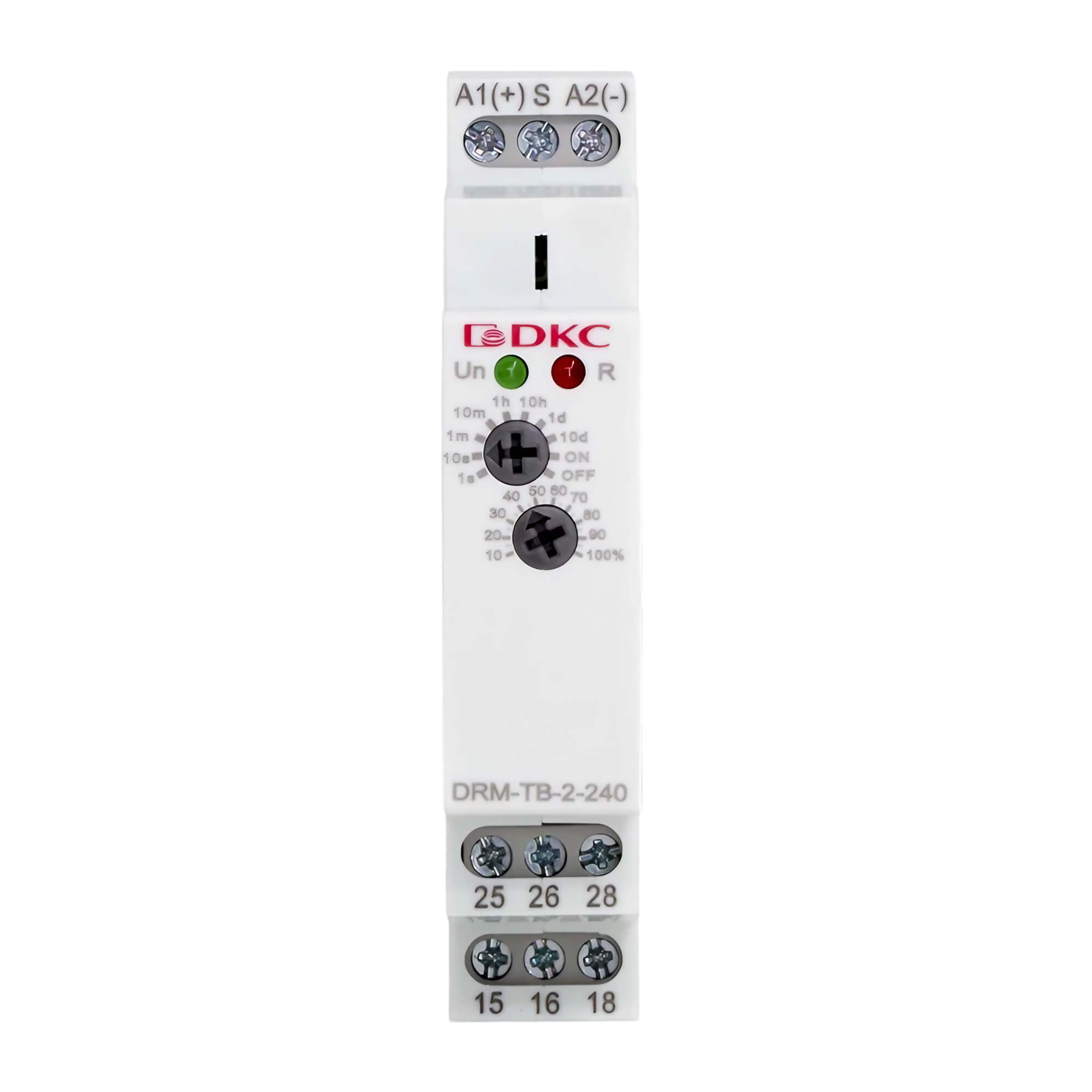

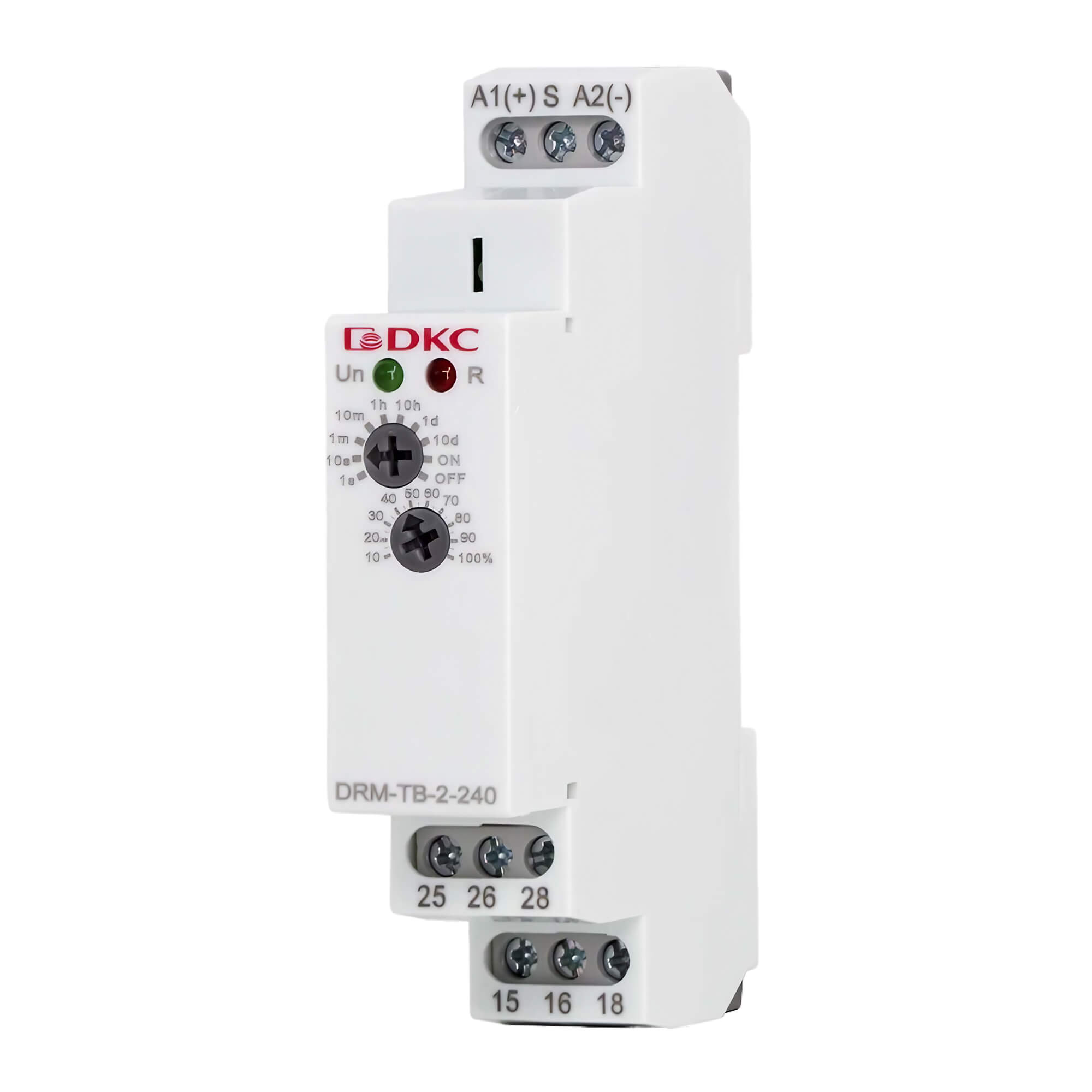

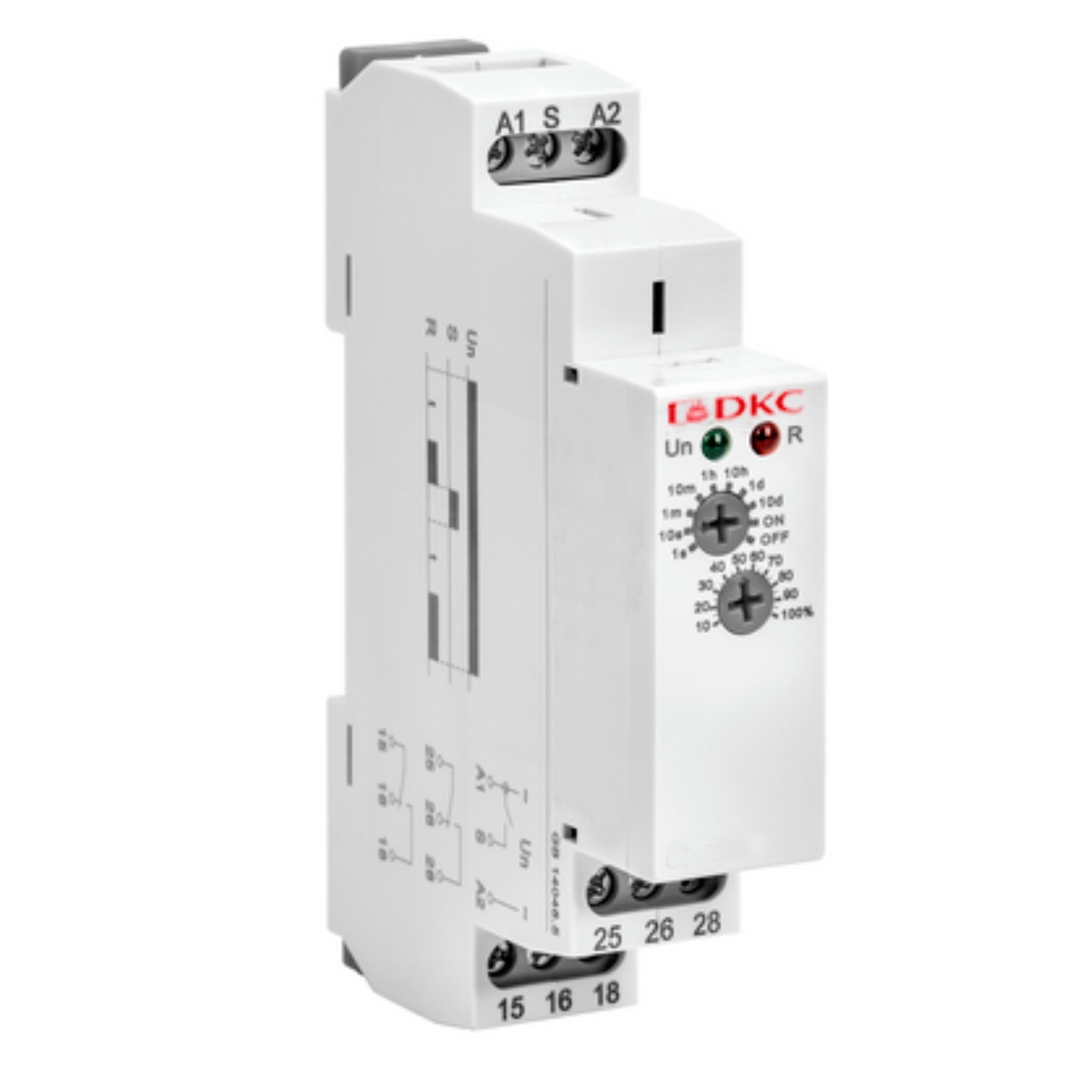

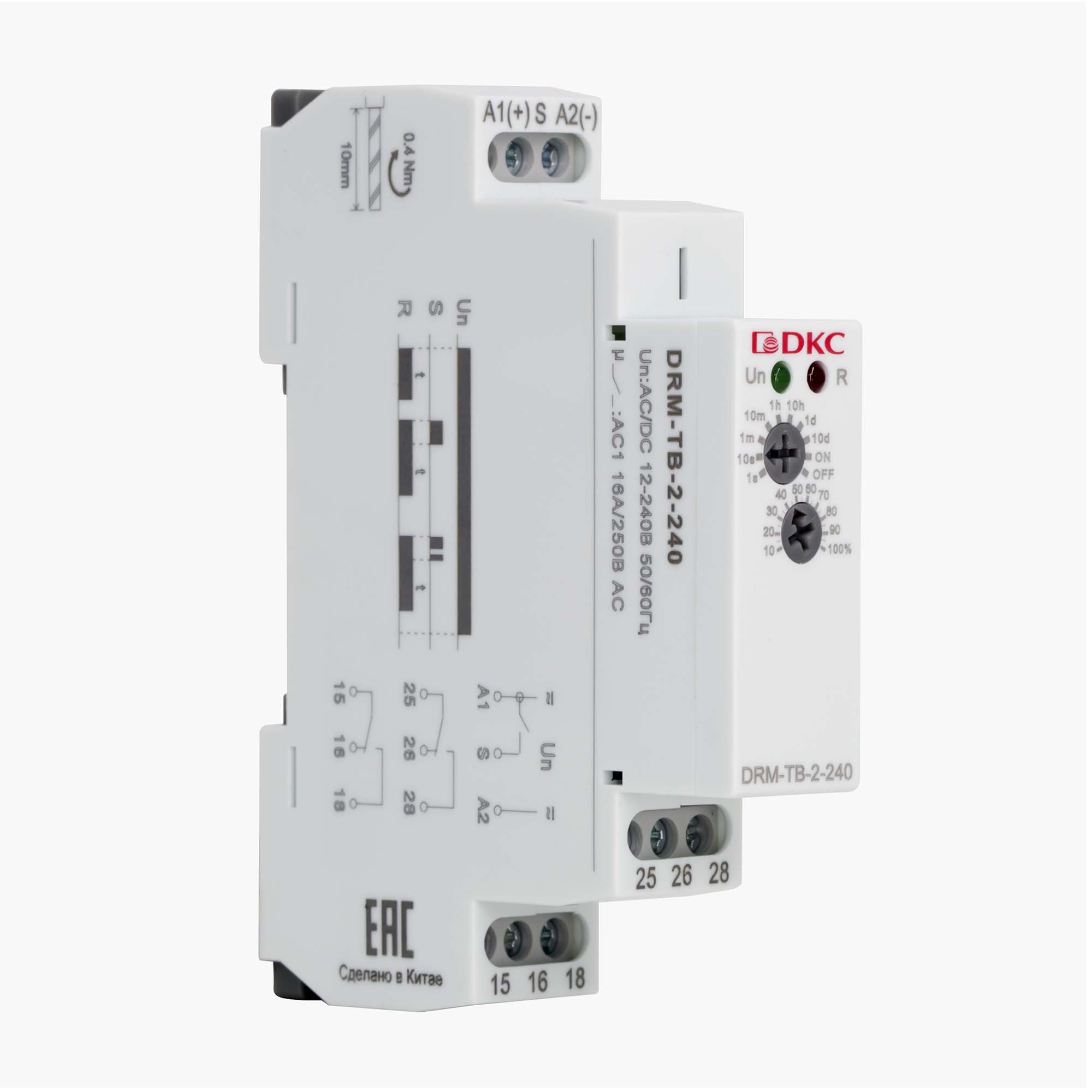

Time relay, delay off, contact configuration 2CO, AC/DC 12-240V
Code:
DRM-TB-2-240
Code:
DRM-TB-2-240
| Nominal current, A | 16 |

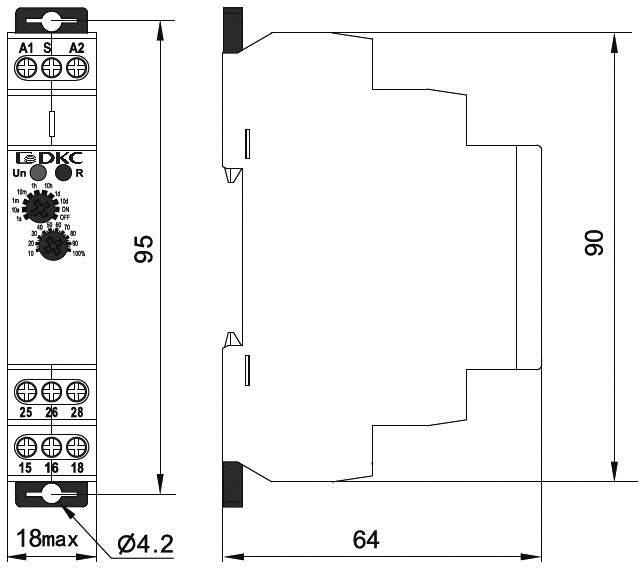

| Width, mm | 18 |
| Height, mm | 90 |
| Depth, mm | 64 |
| Suitable for front mounting | Yes |
| With plug-in socket | No |
| Remote operation possible | No |
| Suitable as remote control | No |
| Function flashing, starting with pause, fixed time | No |
| Function flashing, starting with pulse, fixed time | No |
| Clock function, starting with pause, variable | No |
| Clock function, starting with pulse, variable | No |
| With semiconductor output | No |
| Function delay-on energization | No |
| Function floating contact on energization | No |
| Function star-delta | No |
| Time range, s | 0.1...8640000 |
| Function delay on de-energization | Yes |
| Function floating contact on de-energization | Yes |
| Function pulse shaping | No |
| Type of electric connection | Screw connection |
| Rated control supply voltage Us at AC 50HZ, V | 12...240 |
| Rated control supply voltage Us at DC, V | 12...240 |
| Number of outputs, delayed, change-over contact | 2 |
| Pluggable on auxiliary contact block | No |
| Outputs, reversible delayed/undelayed | No |
| Suitable for DIN rail (top hat rail) mounting | Yes |
| Voltage type for actuating | AC/DC |
| Product type | Time relay |
| Response delay | Shutdown delay |
| Number and type of contacts | 2СО |
| Rated voltage | AC/DC 12-240V |
| Rated current | 16A |
| Number of phases | 1 |
