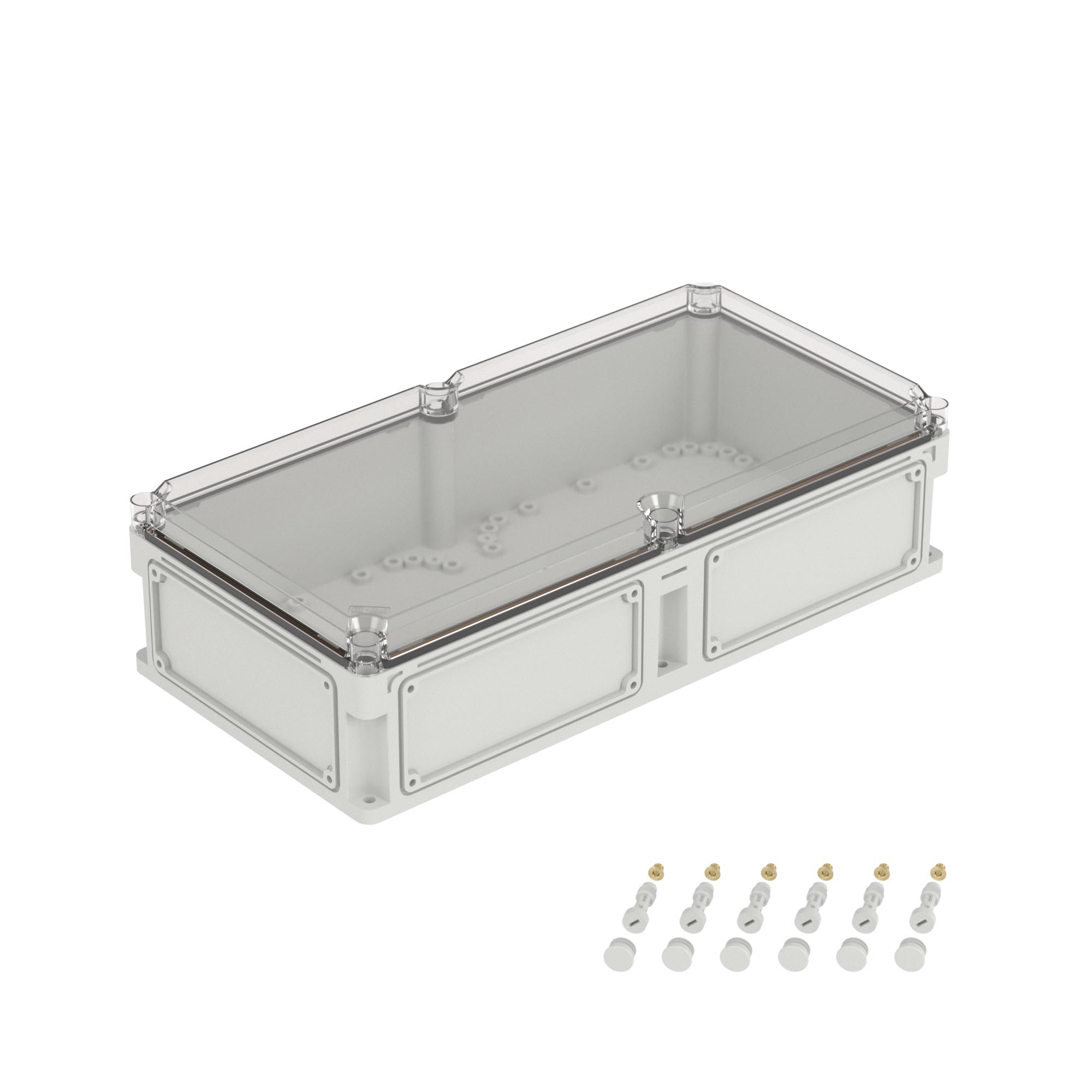

RAM box enclosure w/o MP 600х300х160 mm with flanges and transparent сover 35 mm, IP67
Code:
563311
Code:
563311
| Mounting method | Surface mounted (plaster) |
| Built-in depth, mm | 160 |
| Extension possible | No |
| Material housing | Plastic |
| Cover model | Transparent |
| Width, mm | 300 |
| Height, mm | 600 |
| Depth, mm | 160 |
| RAL-number | 7035 |
| With mounting plate | No |
| Degree of protection (IP) | IP67 |
| Product type | Enclosure |
| Series | RAM box |
| Material | Polycarbonate, RAL7035 |
| Height | 300 mm |
| Width | 600 mm |
| Depth | 160 mm |
| Cover design | Transparent |
| Walls design | Knock-out flanges |
| Fflanges quantity | 6 type C |
| Mounting plate | Optional |
| Mounting plate thickness | 2,0 mm |
| Degree of protection | IP66/IP67 |
| IK | IK09, at t - 50° C |
| Temperature range | -60 °С...+100 °С |
| Climate version | UHL1 |
| Flammability rating | Enclosure V-0, cover V-2 |
