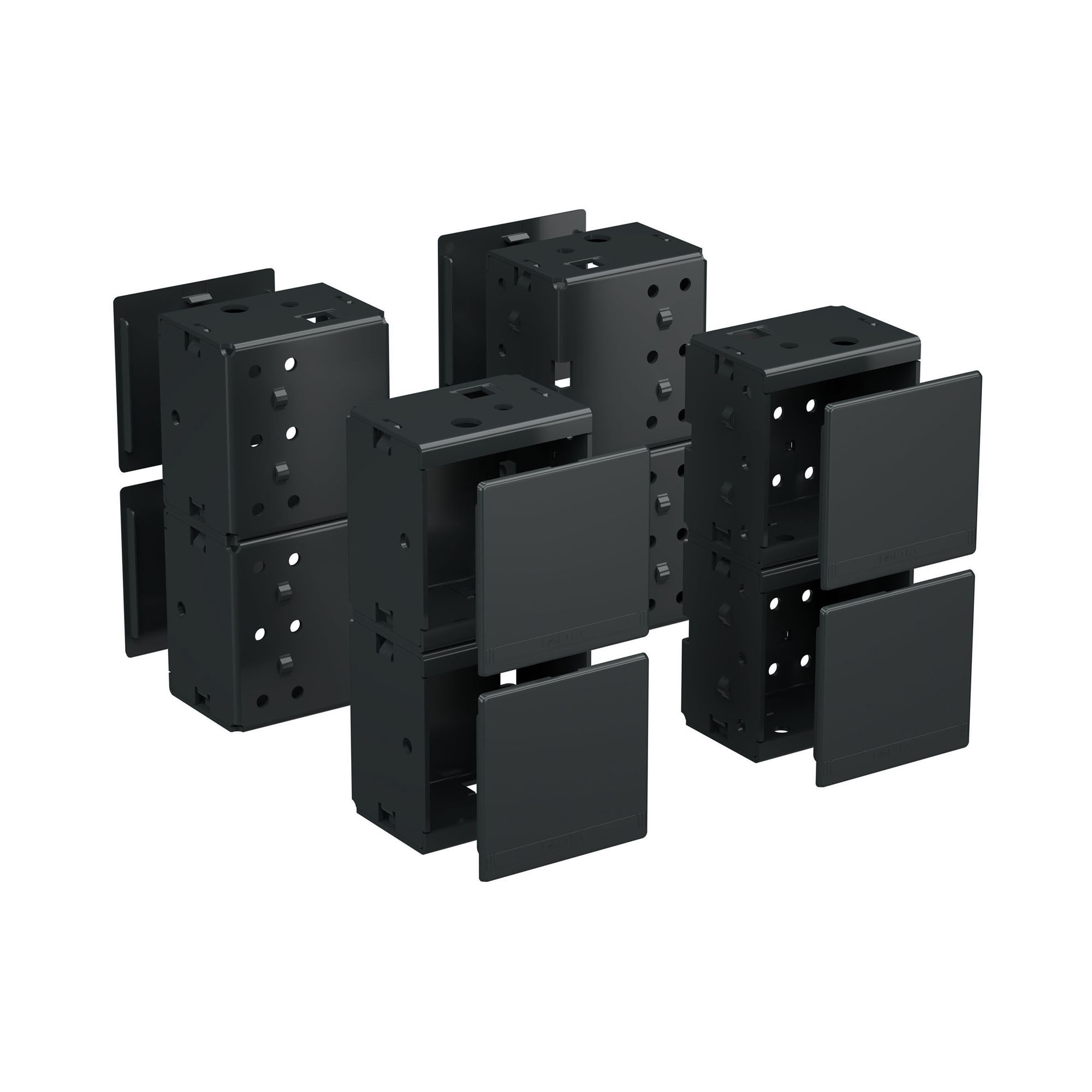

Set of corner elements with plastic plugs, V = 200 mm, 1 kmp = 4 pcs. RAL9005

Code: R5NBP02B
Set of corner elements with plastic plugs, V = 200 mm, 1 kmp = 4 pcs. RAL9005
Set of corner elements with plastic plugs, V = 200 mm, 1 kmp = 4 pcs. RAL9005
Code: R5NBP02B
  • To ask a question
  • Characteristics
  • Accessories
  • Promo
  • Viewed items
  • News
Width, mm 100
Depth, mm 75
Suitable for aeration/de-aeration No
Suitable for outdoor set-up Yes
Suitable for cable patch No
Colour Black
Model Base intermediate plate
Height, mm 200
Material Steel
Product type Base corner unit
Series RAM block
Material Steel, black, RAL9005
Height 200 mm
Width 92 mm
Depth 67 mm
Steel thickness 2,5 mm
Model Welded
Suitable for enclosure building height Any
Suitable for enclosure building width Any
Suitable for enclosure building depth Any
Degree of protection IP55 or IP65
IK IK10
Seismic resistance Degree 9 of MSK-64
Mechanical strength M40; M6
Temperature range -60...+90 °С
Climate version UHL1, OM2, OM3
Flammability G1
Coating class IV
Russian Maritime Register of Shipping Yes
Russian Classification Society Yes
