| Colour | Black |
| Width, mm | 300 |
| Model | Base side set |
| Depth, mm | 300 |
| Suitable for enclosure building width, mm | 300 |
| Suitable for enclosure building depth, mm | 300 |
| Material | Steel |
| Height, mm | 100 |
| Suitable for outdoor set-up | Yes |
| Suitable for aeration/de-aeration | No |
| Suitable for cable patch | No |

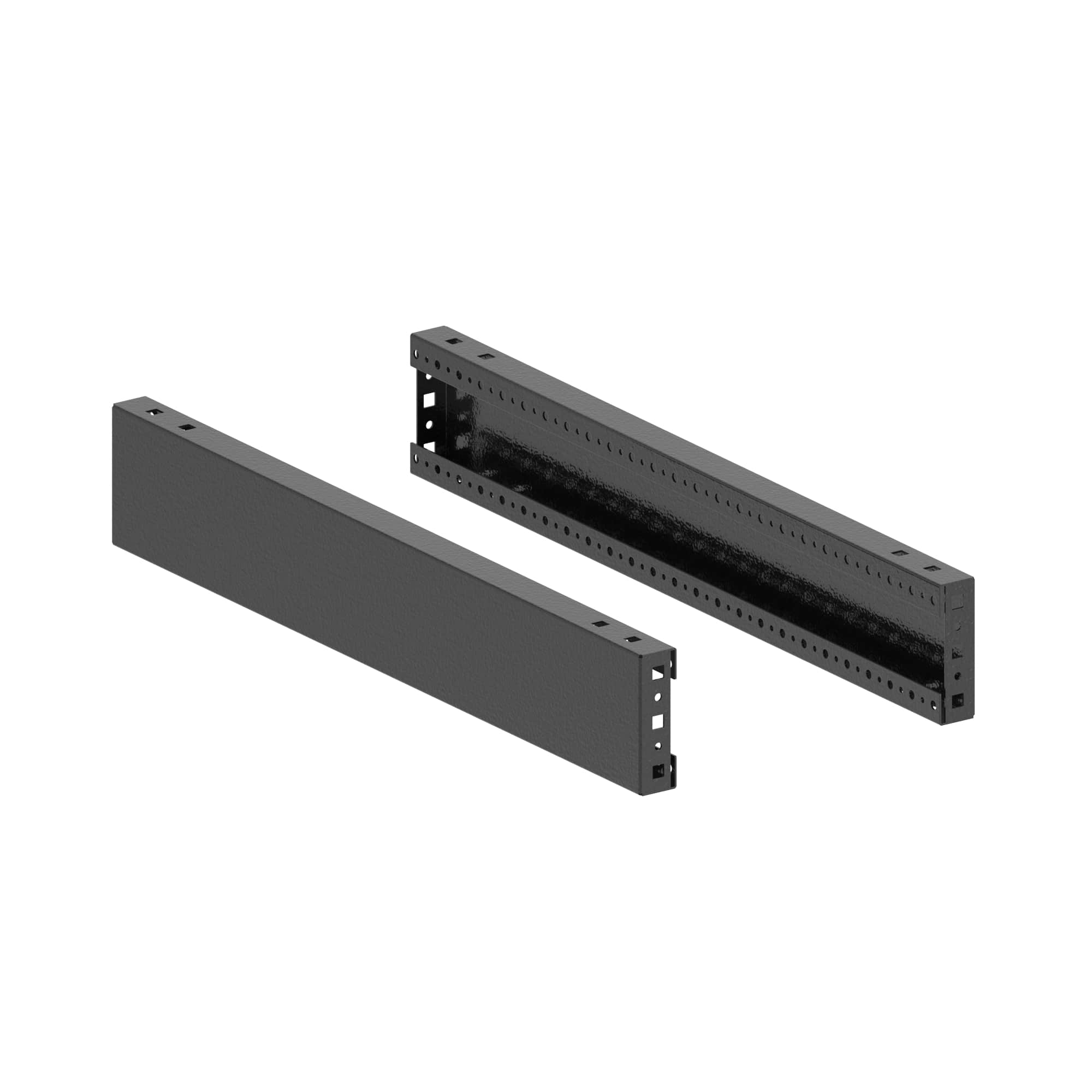

| Product type | Base trim panel |
| Series | RAM block |
| Material | Steel, black, RAL9005 |
| Height | 100 mm |
| Width | 114 mm |
| Depth | 30 mm |
| Steel thickness | 1,2 mm |
| Model | Perforated panel |
| Suitable for enclosure building height | Any |
| Suitable for enclosure building width | 300 mm |
| Suitable for enclosure building depth | 300 mm |
| Degree of protection | IP55 or IP65 |
| IK | IK10 |
| Seismic resistance | Degree 9 of MSK-64 |
| Mechanical strength | M40; M6 |
| Temperature range | -60...+90 °С |
| Climate version | UHL1, OM2, OM3 |
| Flammability | G1 |
| Coating class | IV |
| Russian Maritime Register of Shipping | Yes |
| Russian Classification Society | Yes |
