| Width, mm | 800 |
| Suitable for enclosure building depth, mm | 800 |
| Suitable for 19 inch mounting | No |
| Suitable as side panel | Yes |
| Suitable as rear panel | No |
| Colour | Grey |
| Height, mm | 2200 |
| RAL-number | 7035 |
| Material | Steel |
| Surface finishing | Powder coating |

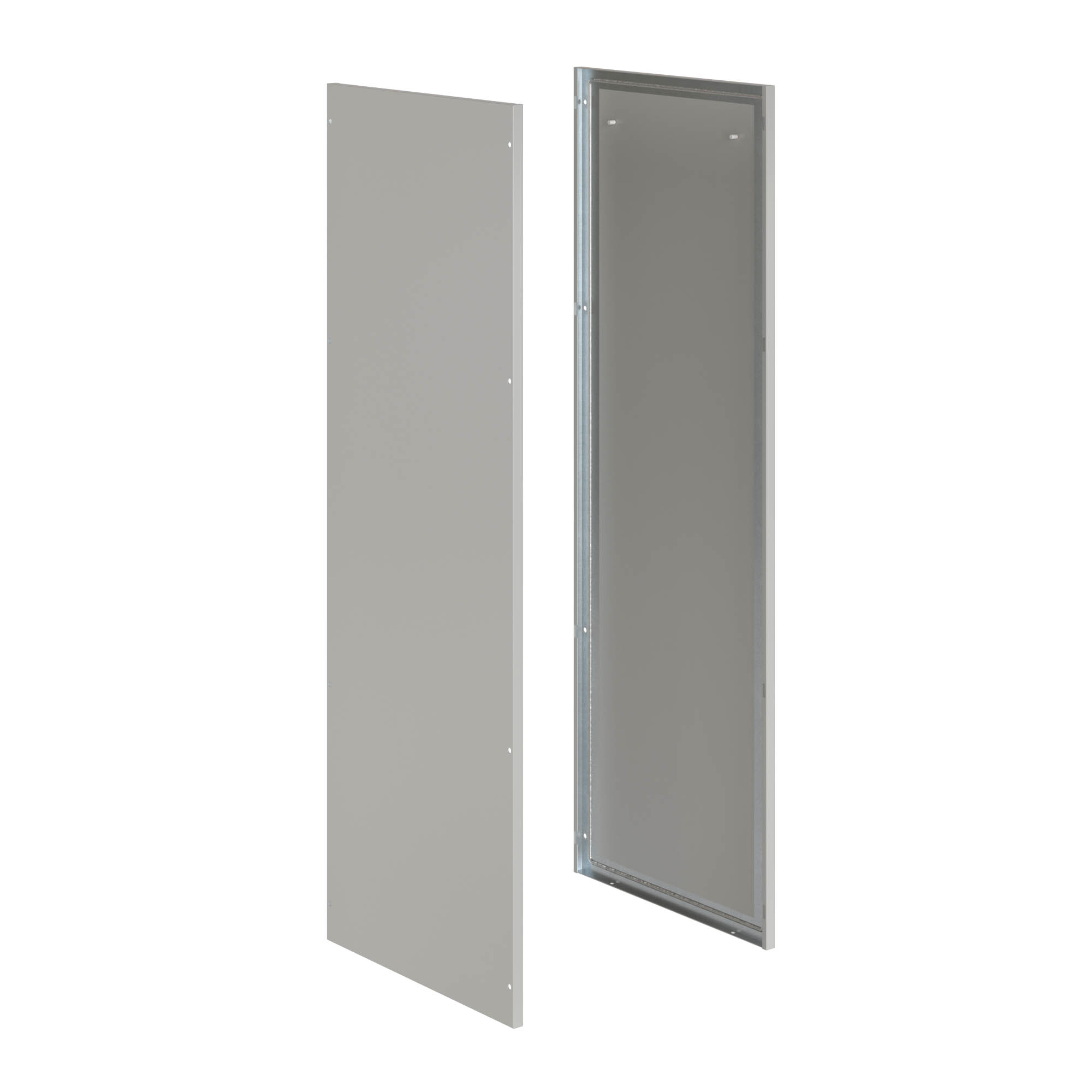

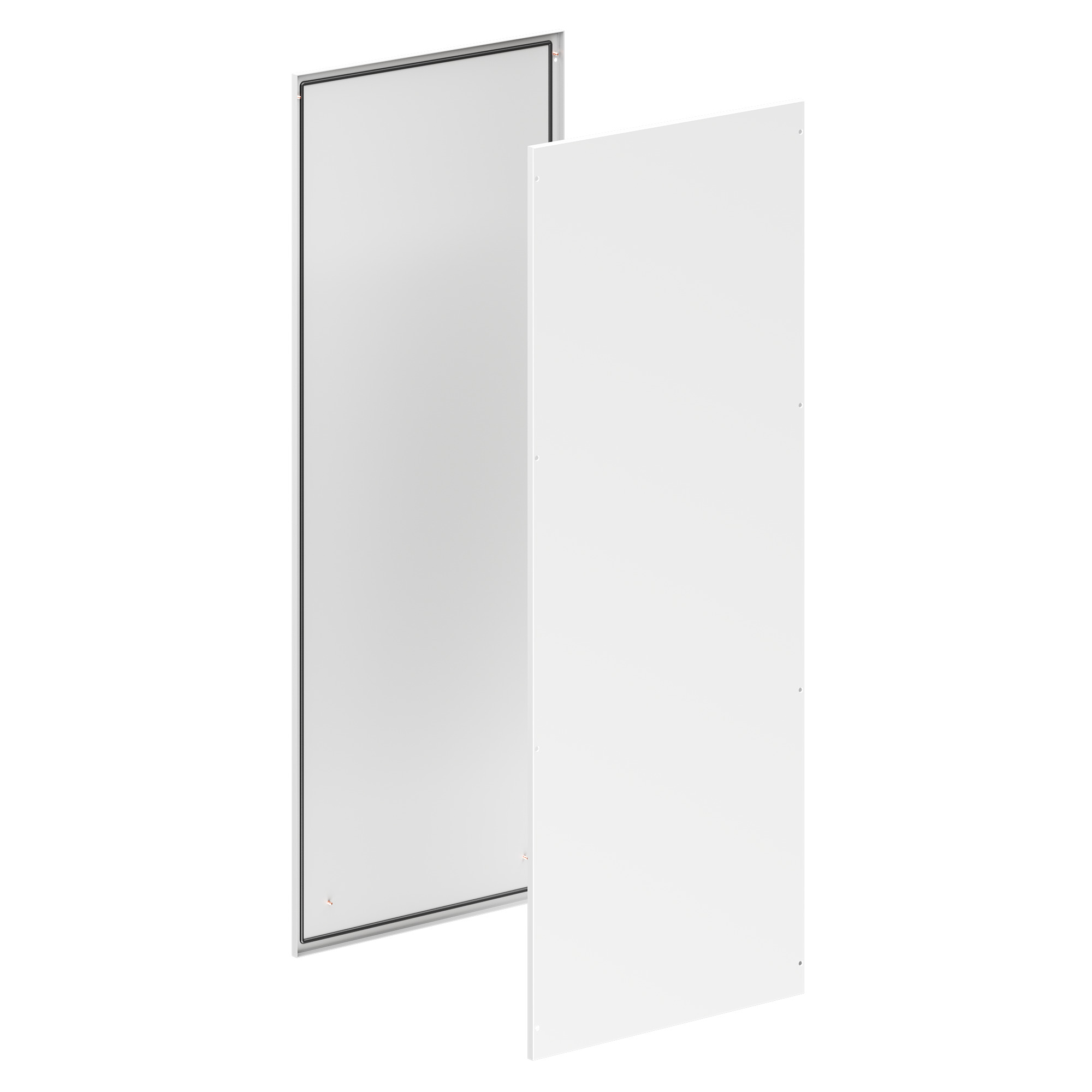

| Product type | Side panel |
| Series | RAM block |
| Material | Steel, light grey, RAL7035 |
| Height | 2161 mm |
| Width | 20 mm |
| Depth | 746 mm |
| Steel thickness | 1,5 mm |
| Model | Pre-fixing panel |
| Suitable for enclosure building height | 2200 mm |
| Suitable for enclosure building width | Any |
| Suitable for enclosure building depth | 800 mm |
| Degree of protection | IP55 or IP65 |
| IK | IK10 |
| Seismic resistance | Degree 9 of MSK-64 |
| Mechanical strength | M40; M6 |
| Temperature range | -60...+90 °С |
| Climate version | UHL1, OM2, OM3 |
| Flammability | G1 |
| Coating class | IV |
| Russian Maritime Register of Shipping | Yes |
| Russian Classification Society | Yes |
