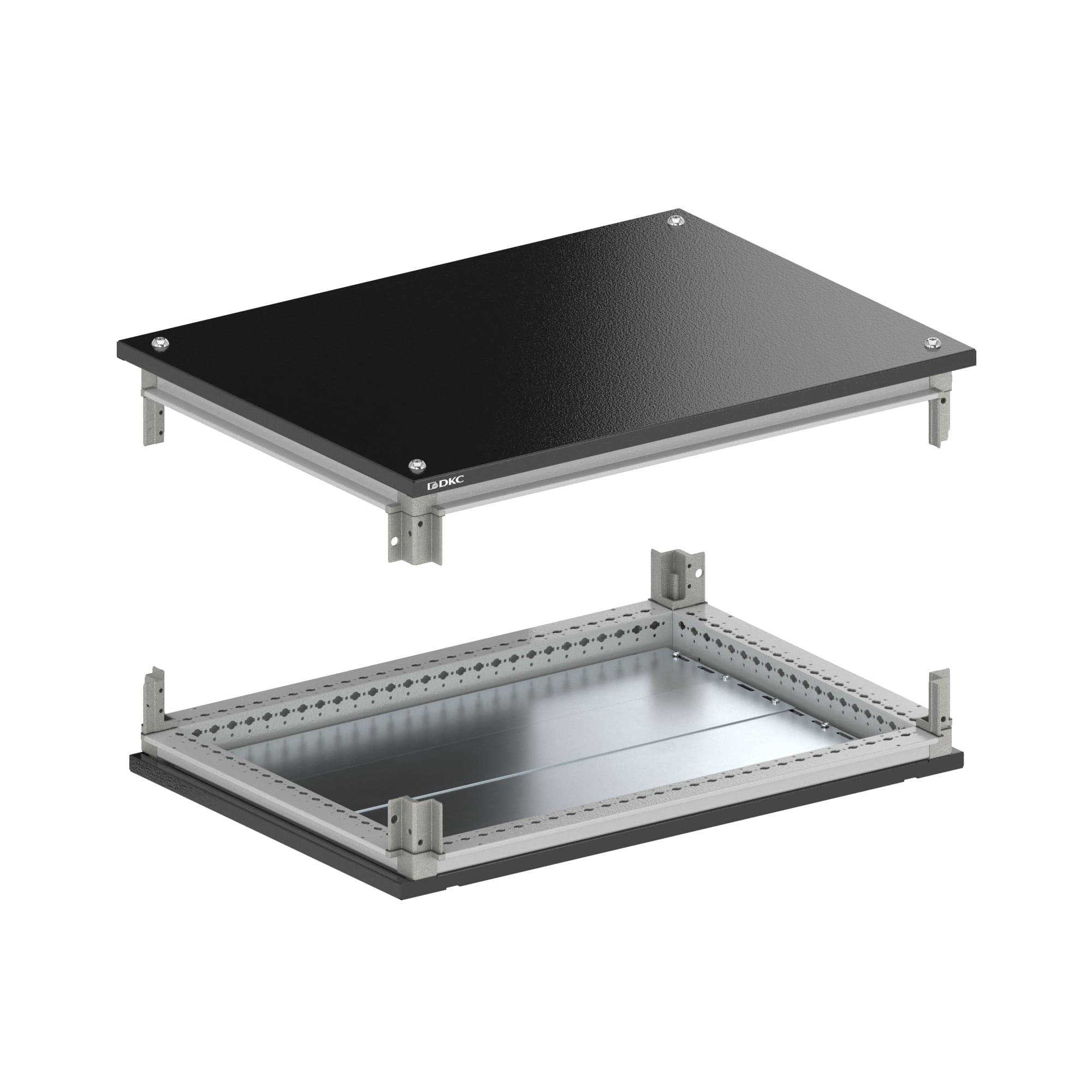

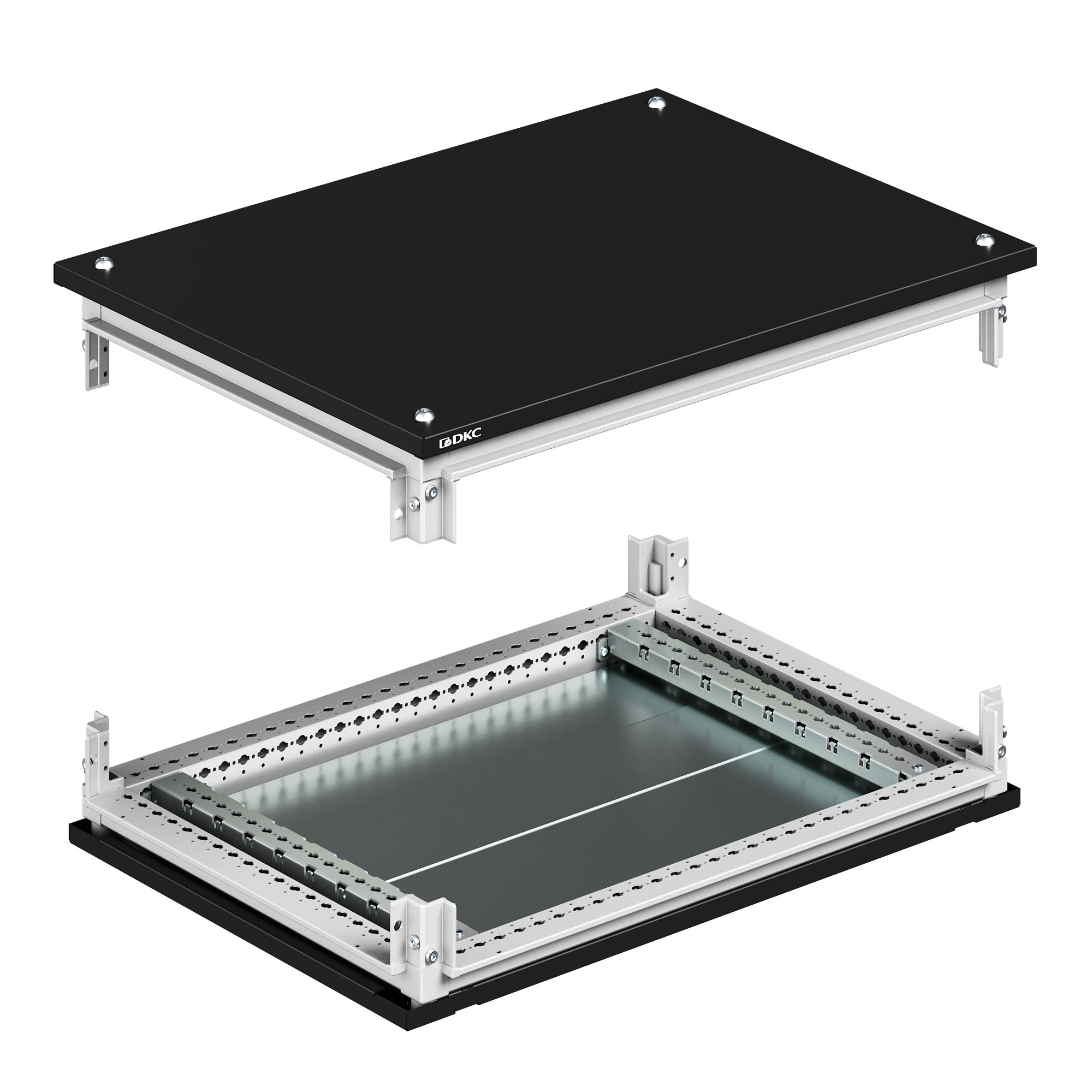

Roof and base for nCQE 300 x 600 mm

Code: R5NKTB36
Code: R5NKTB36
  • To ask a question
Surface finishing Powder coating
Colour Black
Width, mm 300
With de-aeration No
Material Steel
Depth, mm 600
RAL-number 9005
Suitable for enclosure building width, mm 300
Suitable for enclosure building depth, mm 600
Suitable for roof planking Yes
Suitable for bottom planking Yes
Product type Top-floor elements
Series RAM block
Material Steel, black, RAL9005
Height 230 mm
Width 300 mm
Depth 600 mm
Steel thickness 1,5 mm
Model Welded
Suitable for enclosure building height Any
Suitable for enclosure building width 300 mm
Suitable for enclosure building depth 600 mm
Degree of protection IP55 or IP65
IK IK10
Seismic resistance Degree 9 of MSK-64
Mechanical strength M40; M6
Temperature range -60...+90 °С
Climate version UHL1, OM2, OM3
Flammability G1
Coating class IV
Russian Maritime Register of Shipping Yes
Russian Classification Society Yes
