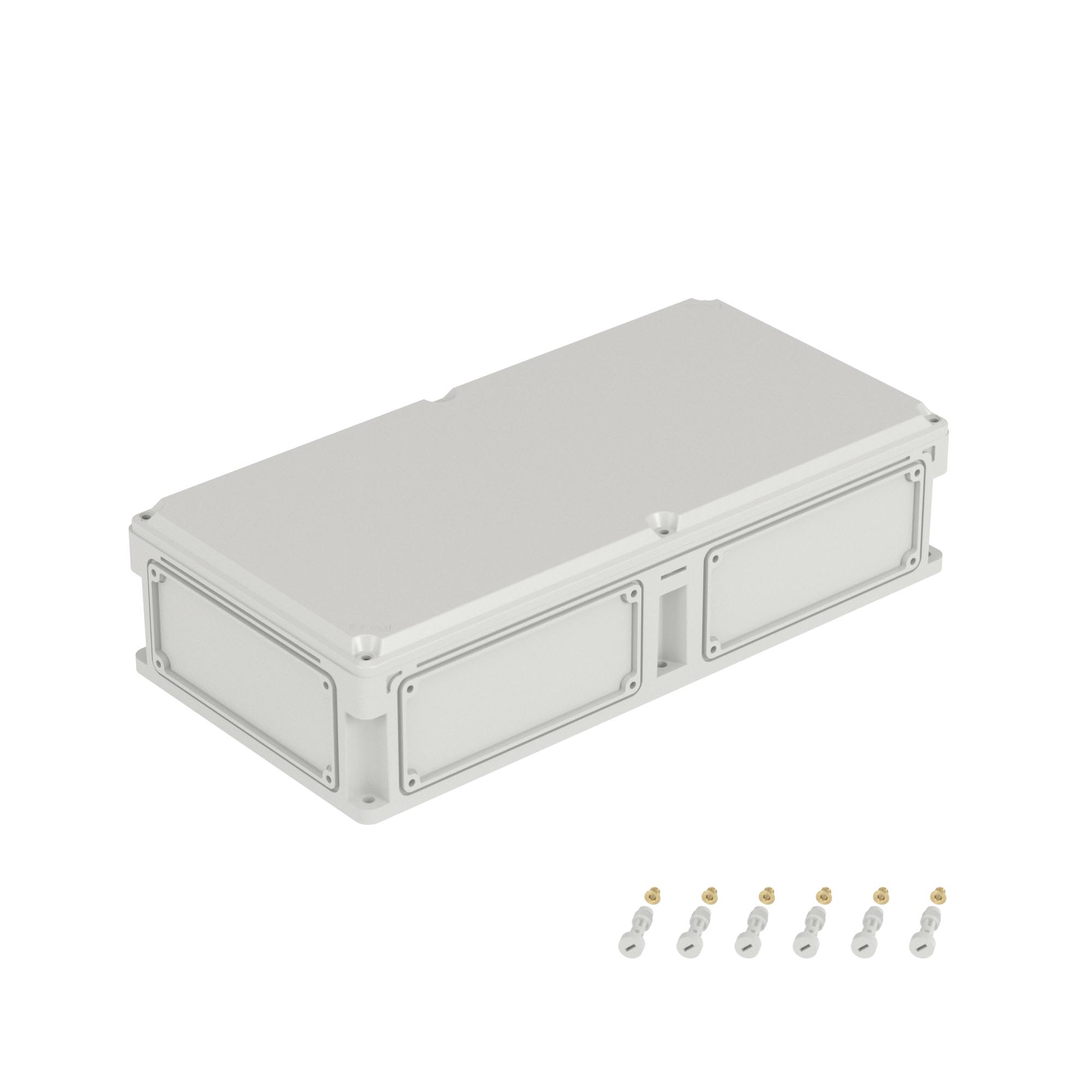

Polycarbonate box IP67, 600x300x146 (height of cover 21), sides with removable flanges, non-transparent cover

Code: 563210
Colour Grey
Width, mm 300
Height, mm 146
Depth, mm 600
RAL-number 7035
With mounting plate No
Number of doors 1
Number of locks 1
EMC-version No
With glazed door No
Floor mounting possible No
Material Plastic
Wall mounting possible Yes
Degree of protection (IP) IP67
Suitable for outdoor set-up Yes
Suitable for metrical mounting Yes
Mounting plate depth-adjustable No
Tackable Yes
With ventilation door No
Type of surface Other
Surface mounting Yes
With backside door No
Flush-mounted installation No
Length, mm 600
Temperature of mounting, °C -40...+60
Ingress Protection rating, IP IP67
Temperature of operation, °C -80 - +100
Temperature of operation, °C 160
Shock resistance, J 10
The accompanying goods
Hinge. Type 1
Code: 502001
Kit for lock mounting
Code: 502003
Flange. Type C
Code: 501003
Sealant for flange
Code: 501012
Screw for box-joining
Code: 501013
