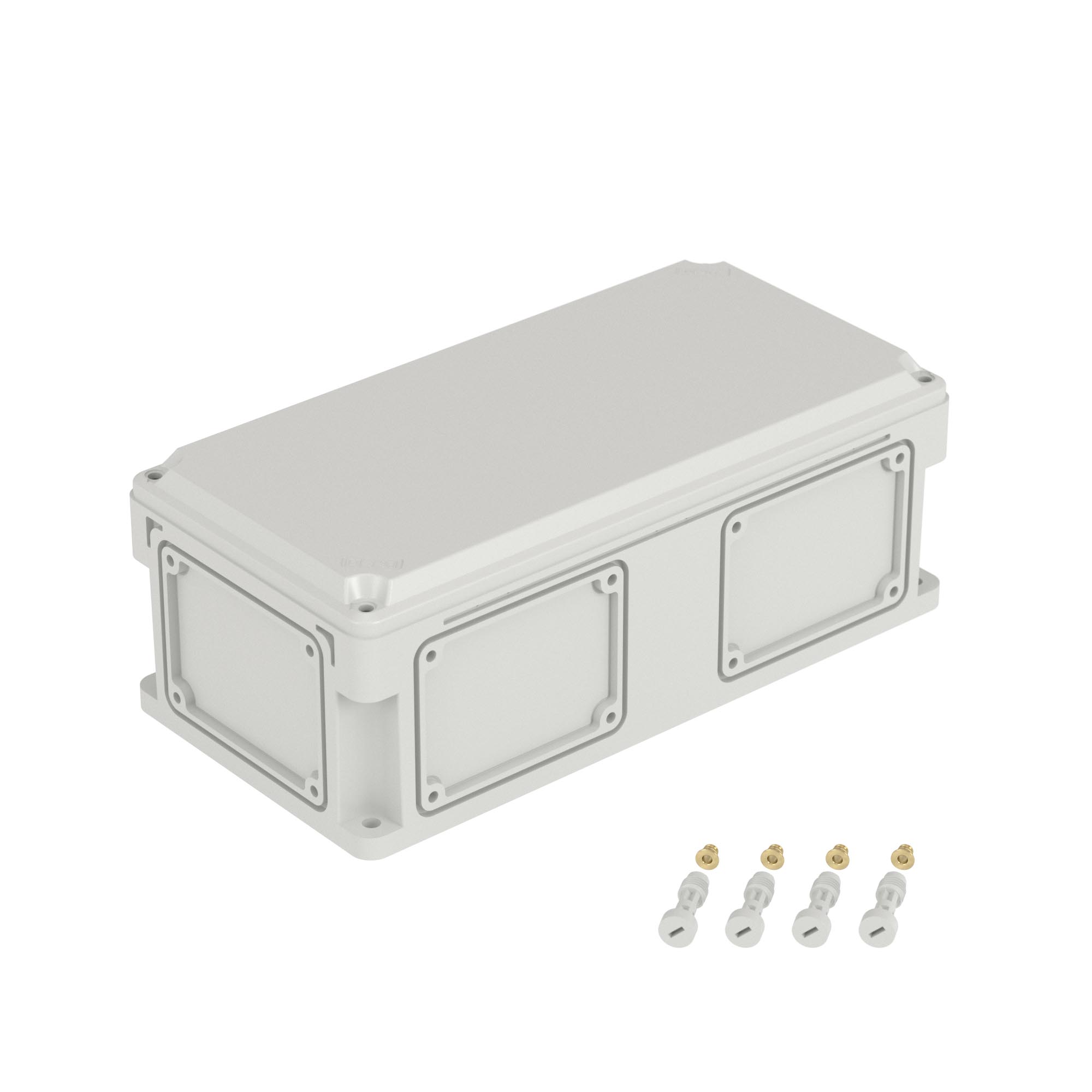

RAM box enclosure w/o MP 400х200х146 mm with flanges and non-transparent сover 21 mm, IP67
Code:
542210
Code:
542210
| Mounting method | Surface mounted (plaster) |
| Built-in depth, mm | 146 |
| Extension possible | No |
| Material housing | Plastic |
| Cover model | Closed |
| Width, mm | 200 |
| Height, mm | 400 |
| Depth, mm | 146 |
| RAL-number | 7035 |
| With mounting plate | No |
| Degree of protection (IP) | IP67 |
| Product type | Enclosure |
| Series | RAM box |
| Material | Polycarbonate, RAL7035 |
| Height | 200 mm |
| Width | 400 mm |
| Depth | 146 mm |
| Cover design | Non-transparent |
| Walls design | Knock-out flanges |
| Fflanges quantity | 6 type B |
| Mounting plate | Optional |
| Mounting plate thickness | 1,5 mm |
| Degree of protection | IP66/IP67 |
| IK | IK09, at t - 50° C |
| Temperature range | -60 °С...+100 °С |
| Climate version | UHL1 |
| Flammability rating | Enclosure and cover V-0 |
