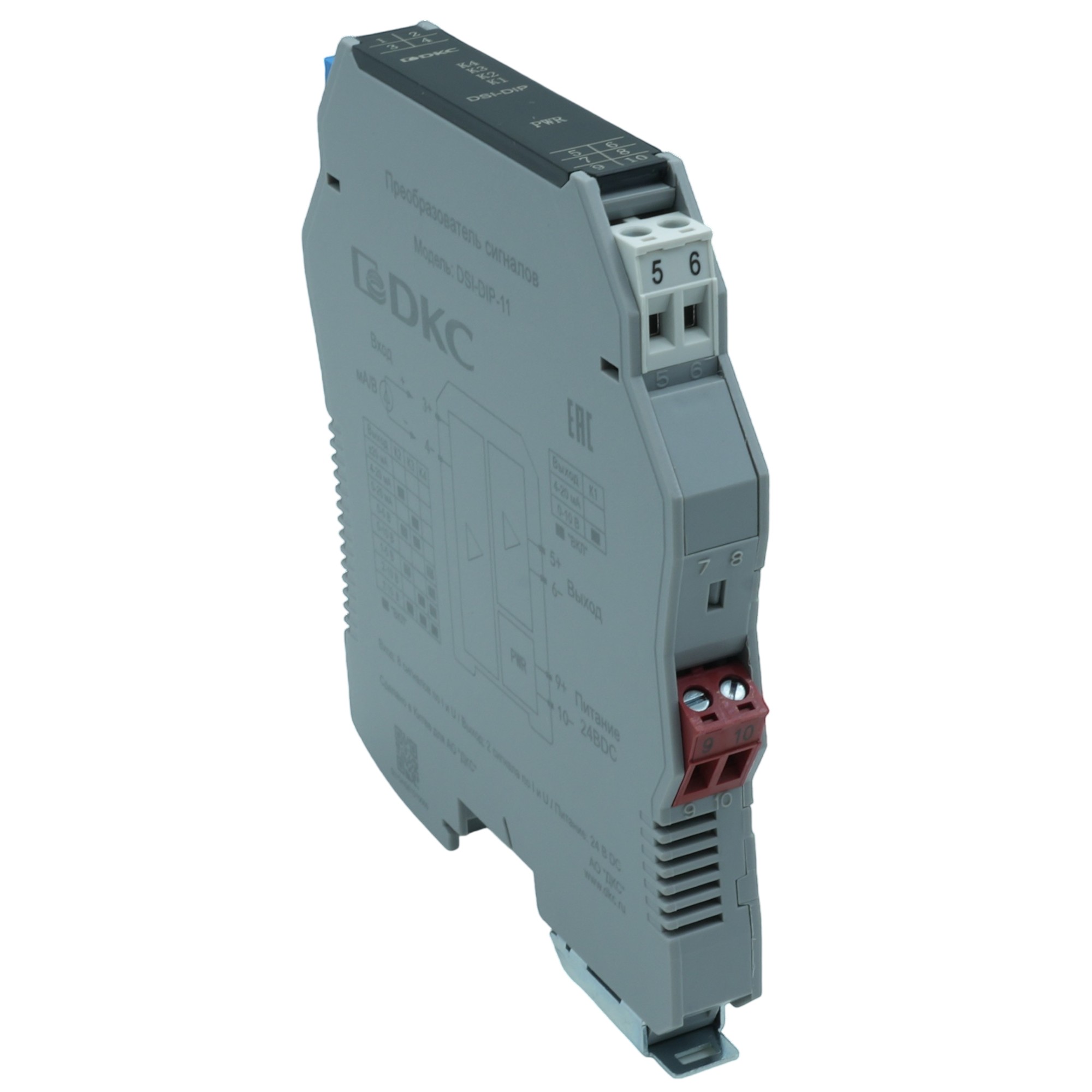

Signal converter with DIP switch, 1 input, 1 output 4...20 mA/0...10 V
Code:
DSI-DIP-11
Code:
DSI-DIP-11
| Mounting method | Snap mounting support rail |
| Width, mm | 12.5 |
| Height, mm | 108 |
| Depth, mm | 118 |
| Number of channels | 1 |
| Type of power supply | Passive |
| Operating temperature, °C | -25...60 |
| Integrated configuration function | Yes |
| Type of electric connection | Screw connection |
| Degree of protection (IP) | IP20 |
| Number of output ranges 0 V ... 10 V | 1 |
| Number of output ranges 4 mA ... 20 mA | 1 |
| Number of input ranges 0 V ... 10 V | 1 |
| Number of input ranges 0 mA ... 20 mA | 1 |
| Number of input ranges 0 V ... 5 V | 1 |
| Number of input ranges 1 V ... 5 V | 1 |
| Number of input ranges -10 V ... +10 V | 1 |
| Number of input ranges 2 V ... 10 V | 1 |
| Number of input ranges -20 mA ... +20 mA | 1 |
| Number of input ranges 4 mA ... 20 mA | 1 |
| Rated supply voltage at DC, V | 24...24 |
| Load, Ohm | 0...500 |
| Galvanic separation between supply voltage and all other current circuits | Yes |
| Temperature drift, %/K | 0.005 |
