Signal conditioner DSI, 1 input TC type K, 2 output 4…20 mA

Code: DSI-C1-1211
Signal conditioner DSI, 1 input TC type K, 2 output 4…20 mA
Signal conditioner DSI, 1 input TC type K, 2 output 4…20 mA
Code: DSI-C1-1211
  • To ask a question
  • Characteristics
  • Accessories
  • Analogs
  • The accompanying goods
  • Promo
  • Viewed items
Mounting method Snap mounting support rail

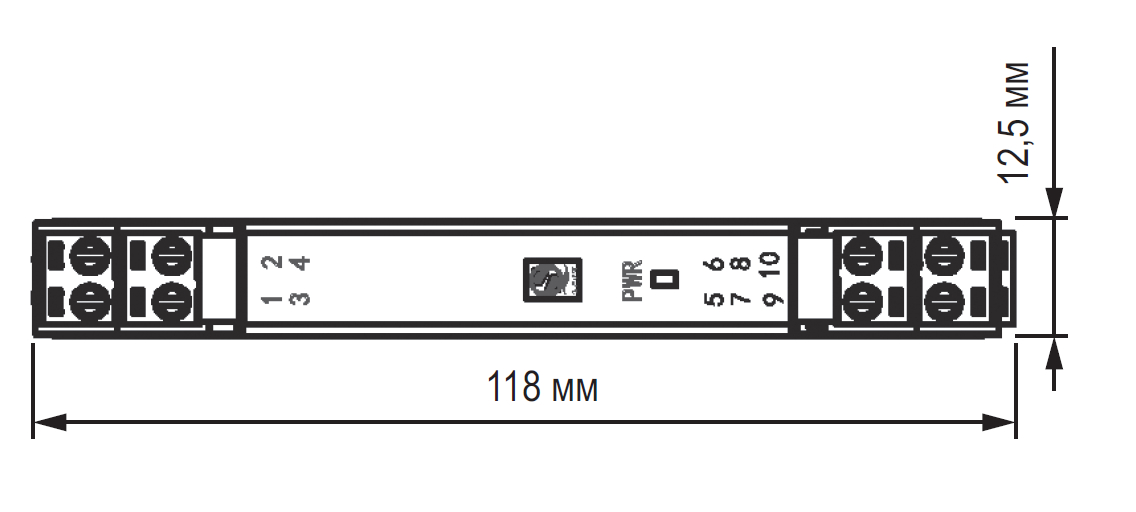

Width, mm 12.5
Height, mm 108
Depth, mm 118
Number of channels 2
Power consumption, W 1.6
Operating temperature, °C -20...60
Type of electric connection Screw connection
Degree of protection (IP) IP20
Number of output ranges 4 mA ... 20 mA 2
Rated supply voltage at DC, V 24...24
Load, Ohm 0...500
Galvanic separation between input and output Yes
Galvanic separation between inputs Yes
Galvanic separation between supply voltage and all other current circuits Yes
Temperature drift, %/K 0.01
Type of power supply Active
Input signal TC type K
Number of output channels 2
