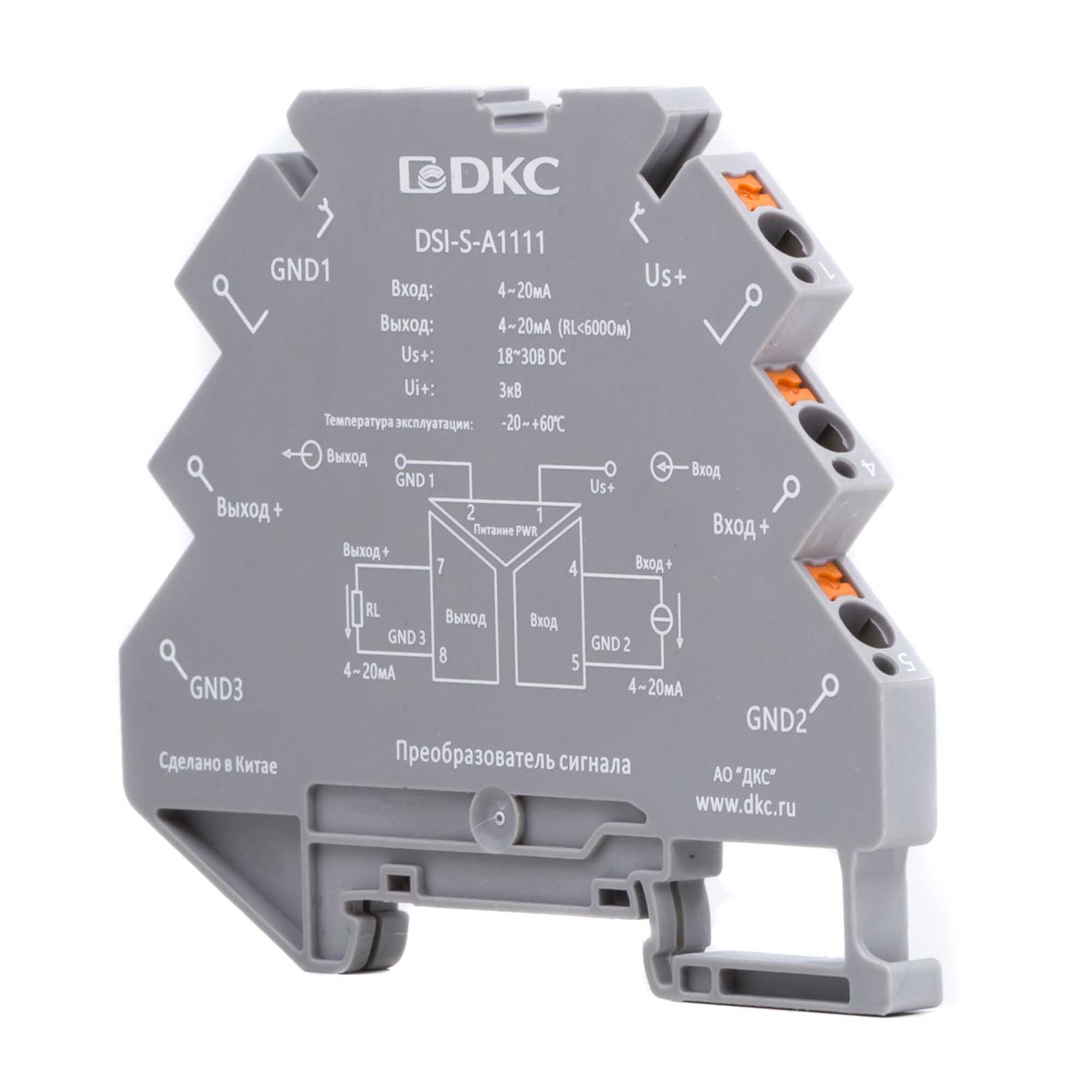

DSI signal converter, 6.2 mm 1 input 4...20 mA, 1 output 4...20 mA

Code: DSI-S-A1111
DSI signal converter, 6.2 mm 1 input 4...20 mA, 1 output 4...20 mA
DSI signal converter, 6.2 mm 1 input 4...20 mA, 1 output 4...20 mA
Code: DSI-S-A1111
  • To ask a question
  • Characteristics
  • The accompanying goods
  • Promo
  • Viewed items
Mounting method Snap mounting support rail

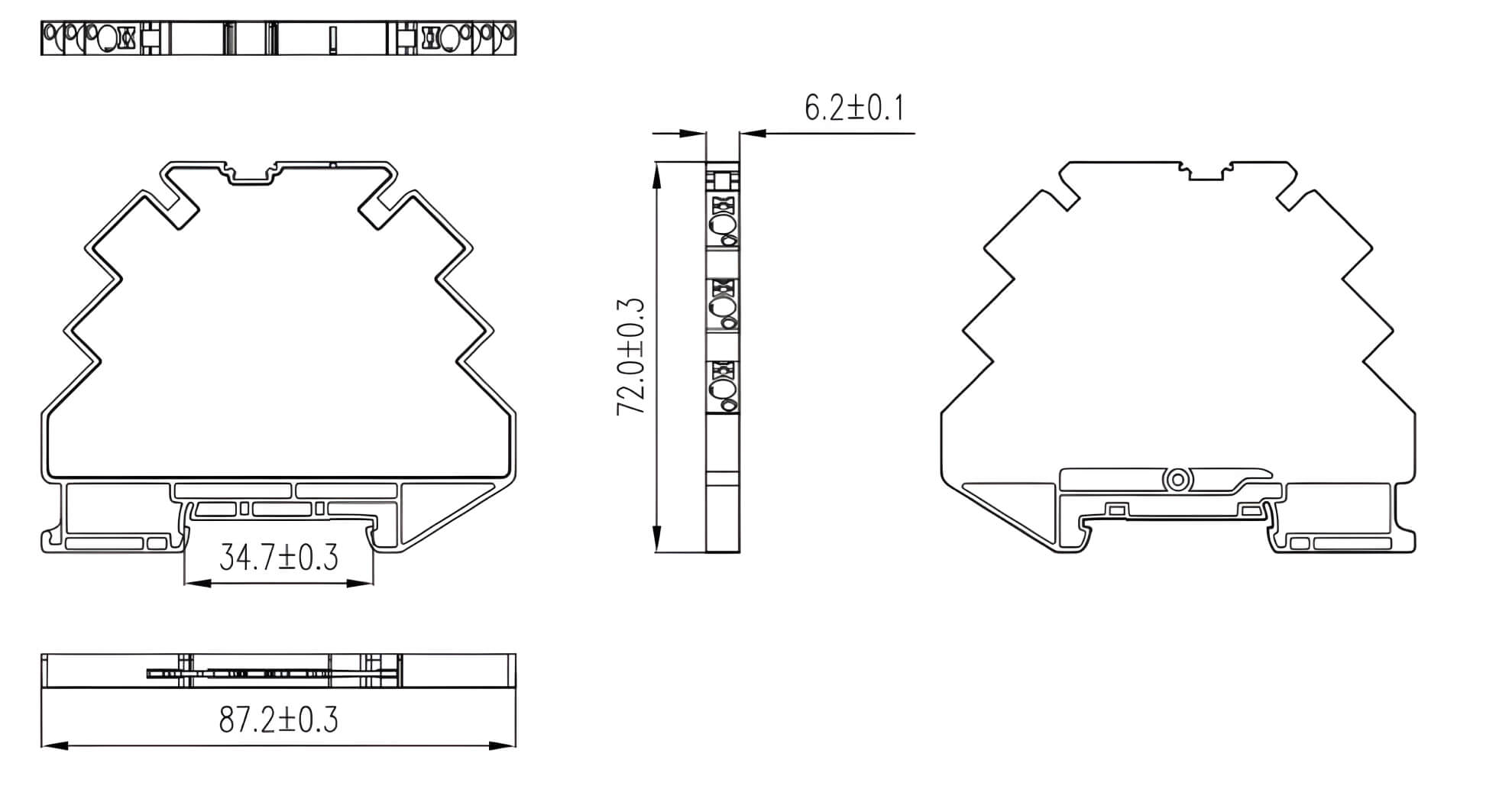

Width, mm 6.2
Height, mm 87.2
Depth, mm 72
Number of channels 1
Output signal 4-20 mA
Type of power supply Other
Operating temperature, °C 20...60
Type of electric connection Spring clamp connection
Degree of protection (IP) IP20
Rated supply voltage at DC, V 18...30
Load, Ohm 600...600
Galvanic separation between supply voltage and all other current circuits Yes
