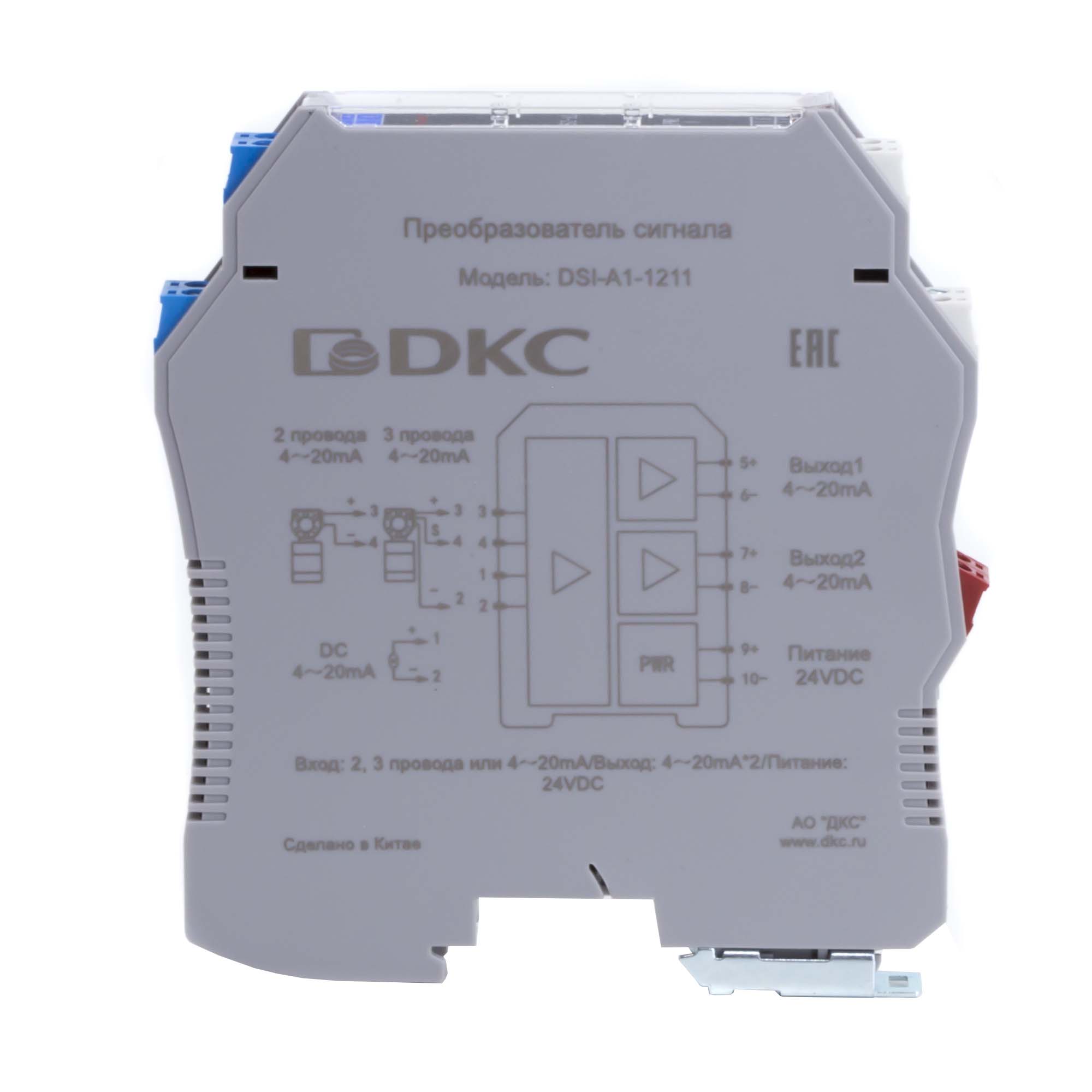

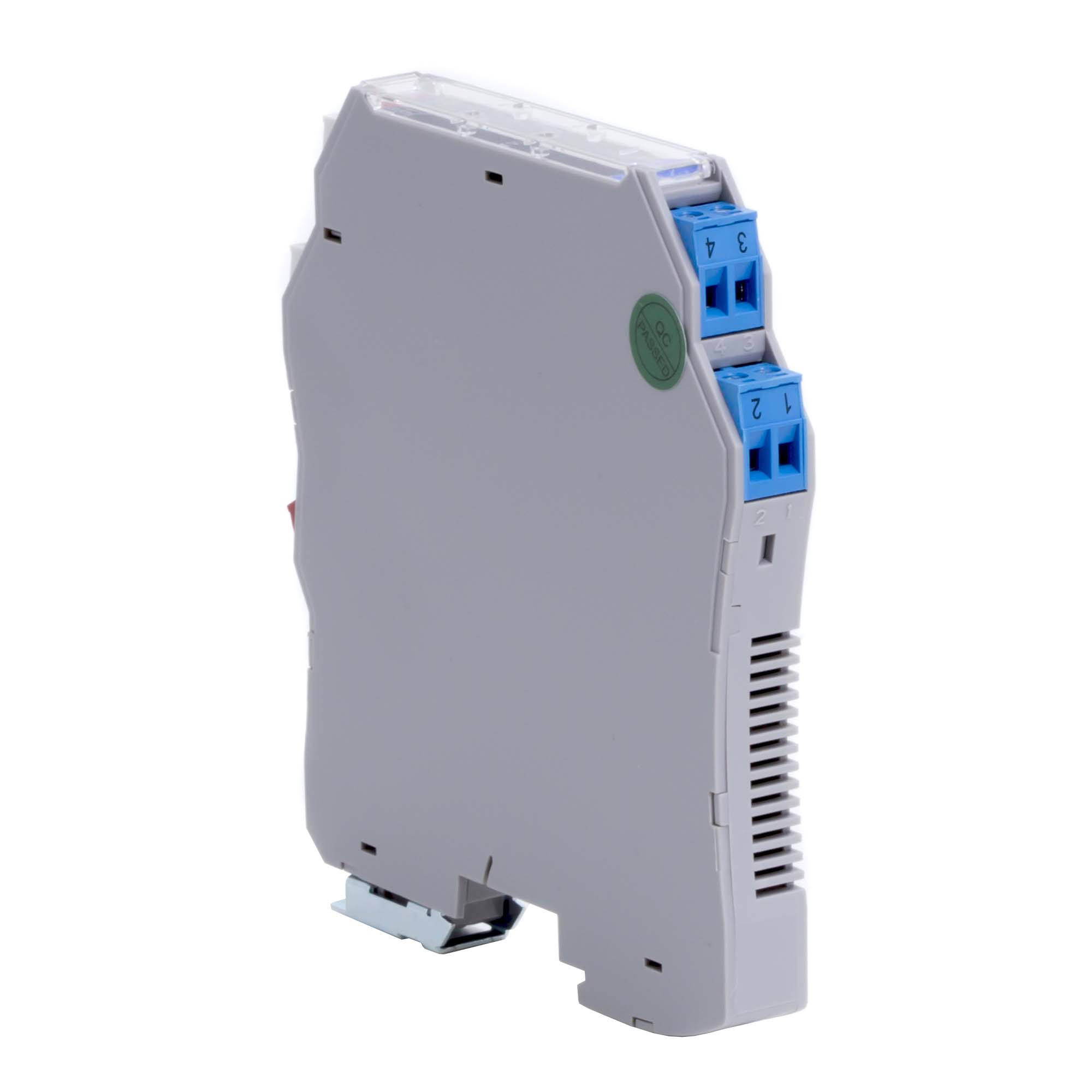

Signal conditioner DSI, 1 input 4…20 mA, 2 output 4…20 mA
Code: DSI-A1-1211
Signal conditioner DSI, 1 input 4…20 mA, 2 output 4…20 mA
Code: DSI-A1-1211
| Mounting method | Snap mounting support rail |

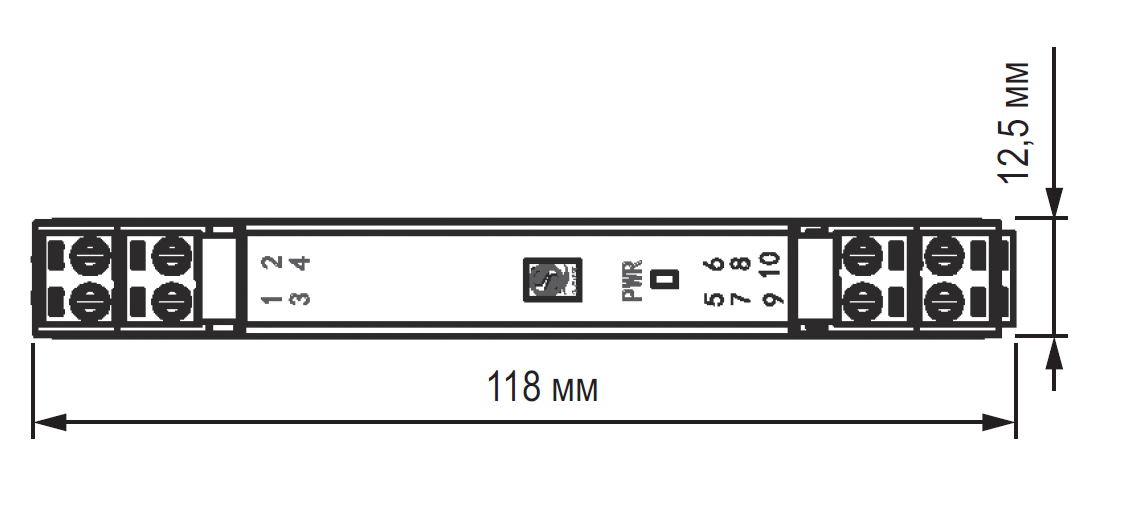

| Width, mm | 12.5 |
| Height, mm | 108 |
| Depth, mm | 118 |
| Number of channels | 2 |
| Power consumption, W | 1.8 |
| Operating temperature, °C | -20...60 |
| Type of electric connection | Screw connection |
| Degree of protection (IP) | IP20 |
| Number of output ranges 4 mA ... 20 mA | 2 |
| Number of input ranges 4 mA ... 20 mA | 1 |
| Rated supply voltage at DC, V | 24...24 |
| Load, Ohm | 0...500 |
| Galvanic separation between input and output | Yes |
| Galvanic separation between inputs | Yes |
| Galvanic separation between supply voltage and all other current circuits | Yes |
| Temperature drift, %/K | 0.0005 |
