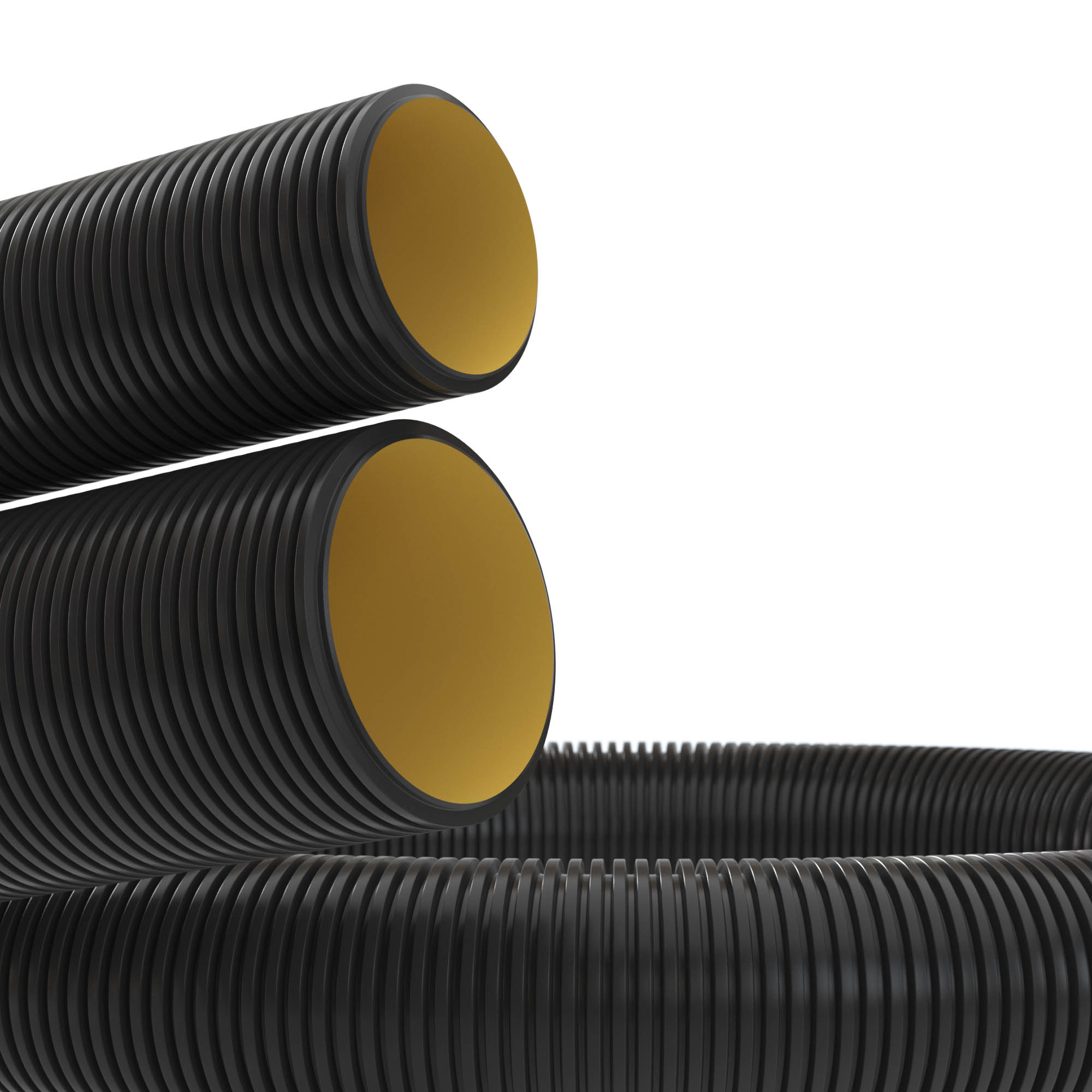

Double-wall tube HDPE flex. for cabling system ? 75 mm, SN 10, 450N, with pull, 100 m in coil, black color
Code:
121975A100
Code:
121975A100
| Colour | Black |
| Model | Pliable |

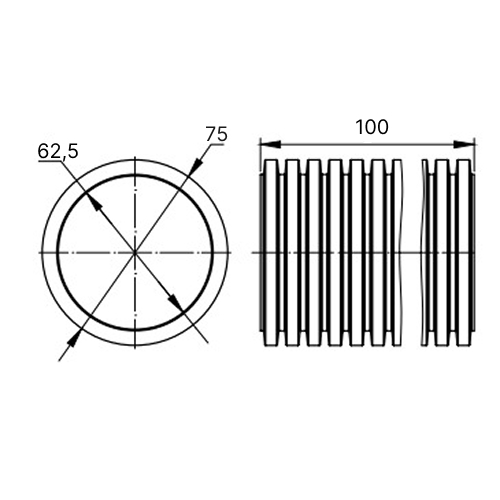

| Outer diameter, mm | 75 |
| Inner diameter, mm | 62.5 |
| Surface protection | Untreated |
| Material quality | Polyethylene (PE) |
| Shape | Outer side ribbed, inner side plain |
| Material | Plastic |
| Transparent | No |
| Surface polished | No |
| Length | 100 m |
| 8 диаметров мм | 600 mm |
| Color | Black |
| Material | PVC |
| -5°С ... +60°С | -25°С ... +90°С |
| Ingress Protection rating, IP | IP44 (IP55) |
| от -25°С до +60°С | from -55°С to +90°С |
| Cord for wires | Yes |
| ТУ 2248-012-47022248-2009 | Technical specifications 2248-015-47022248-2006 |
| 3 года | 2 years |
| 15 лет | 50 years |
| Product type | Double-walled pipes |
| Ring stiffness | 10 kPa |
| Compression resistance | 500 N |
| Complete set of broaching | Yes |
| Packing type | Coil |
| Packing standards | 100 m |
