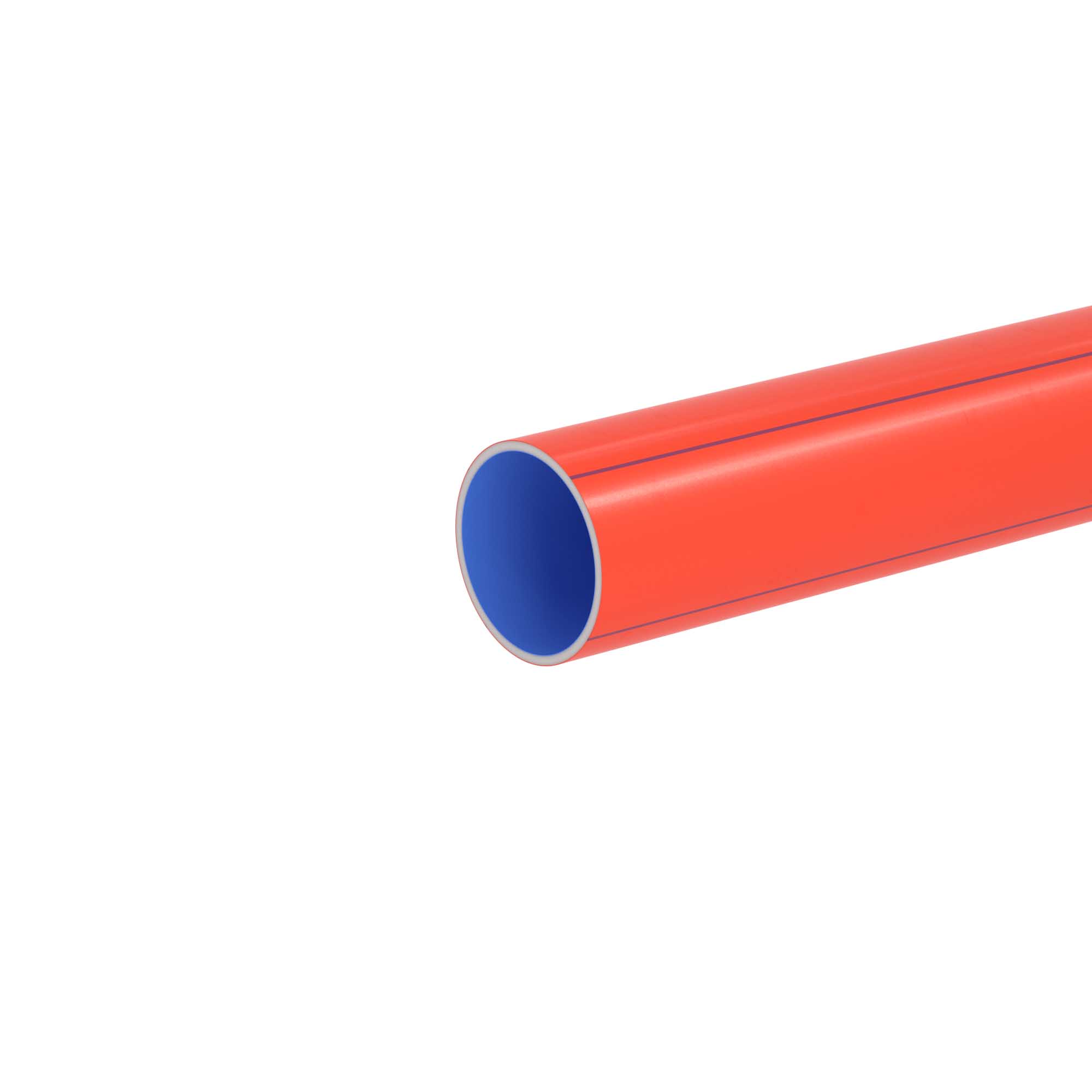

Smooth-walled three-layer polymer pipe d. 63mm SN32 bay 100m, color red
Code:
36347100SN32
Code:
36347100SN32
| Colour | Red |
| Model | Rigid |

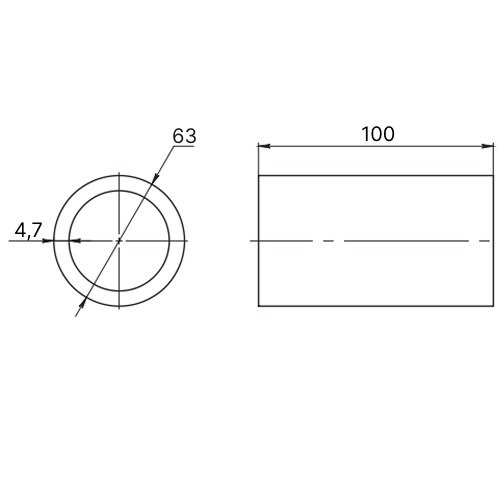

| Outer diameter, mm | 63 |
| Shape | Outer - and inner side plain |
| Inner diameter, mm | 53.6 |
| Surface protection | Untreated |
| Material quality | Polyethylene (PE) |
| Material | Plastic |
| Transparent | No |
| Surface polished | No |
| With draw wire | No |
| 15 лет | 50 years |
| Tightness of connections, GOST 14254-94 | IP 68 |
| Number of layers | 3 - layer |
| Ring stiffness | 32 kPa |
| Material | Polymer composition |
| Outer diameter | 63 mm |
| ТУ 2248-012-47022248-2009 | ТУ 22.21.21-117-4702248-2022 |
| Packing standards | 100 m |
| Compression resistance | Minimum 1250 N |
| Temperature mode of operation | -60 +110 °C |
| Product type | Smooth-walled polymer heat-resistant pipes |
| Packing type | Coil |
| Wall thickness | 4,7 mm |
| Maximum gravity force Fmax | 18 kN |
