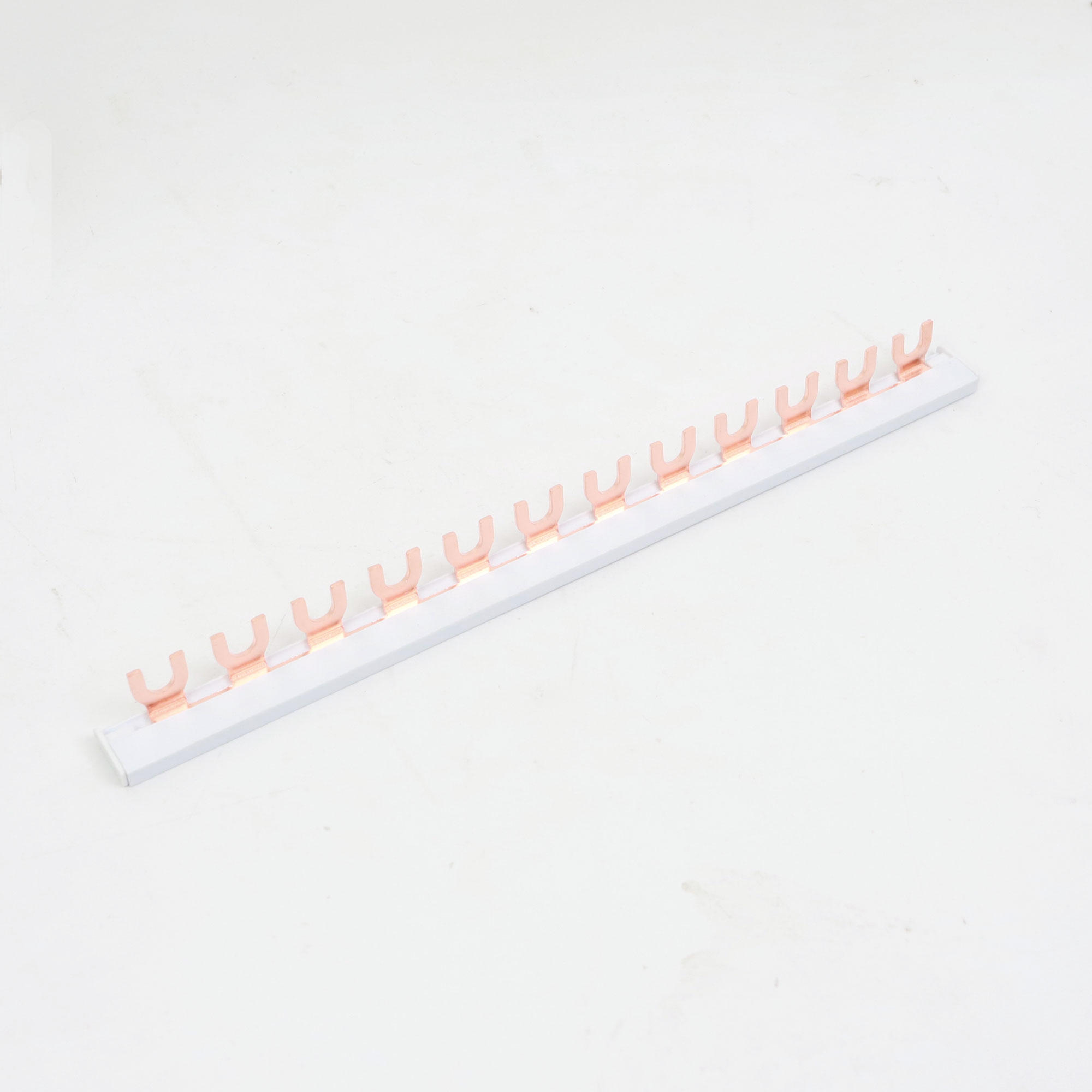

Busbar connection BBS-MD63, type FORK, 1 pole, 56 connections, formodular equipment
Code:
BBS-MD63F-1P56
Code:
BBS-MD63F-1P56
| Insulated | Yes |
| Number of phases | 1 |
| Cross section, mm² | 10 |
| Rated permanent current Iu, A | 63 |
| Number of poles | 1 |
| Length, mm | 1000 |
| Conditioned rated short-circuit current Iq, kA | 15 |
| Rated surge voltage, kV | 4 |
| Type of electric connection | Fork |
| Rated short-time withstand current lcw, kA | 15 |
| Suitable for devices with auxiliary switch | No |
| Suitable for devices with N-conductor | No |
| Suitable for number of devices | 56 |
| Max. rated operation voltage Ue, V | 400 |
| Module width, mm | 18 |
| Number of pins | 56 |
| Rated current In (A) | 63 |
| Rated voltage Ue (V) | 400 |
| Busbar length (in modules) | 56 |
| Voltage type | AC |
| Total number of poles | 1 |
| Product/component type | Comb busbar |
| Series | YON max |
