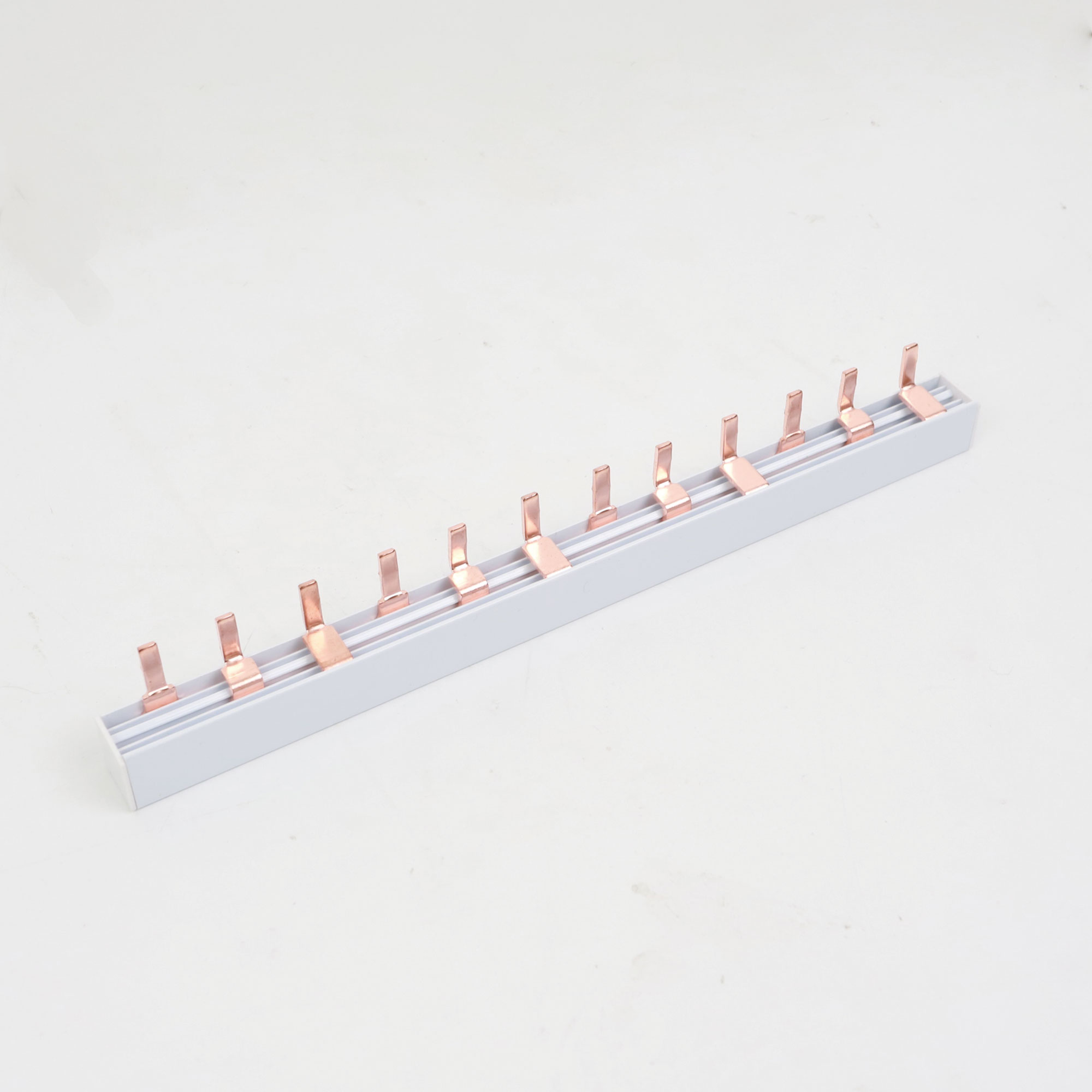

Busbar connection BBS-MD100, type PIN, 3 poles, 18 connections, formodular equipment
Code:
BBS-MD100P-3P18
Code:
BBS-MD100P-3P18
| Insulated | Yes |
| Number of phases | 3 |
| Cross section, mm² | 16 |
| Rated permanent current Iu, A | 100 |
| Number of poles | 3 |
| Length, mm | 1000 |
| Conditioned rated short-circuit current Iq, kA | 15 |
| Rated surge voltage, kV | 4 |
| Type of electric connection | Pin |
| Rated short-time withstand current lcw, kA | 15 |
| Suitable for devices with auxiliary switch | No |
| Suitable for devices with N-conductor | No |
| Suitable for number of devices | 54 |
| Max. rated operation voltage Ue, V | 400 |
| Module width, mm | 18 |
