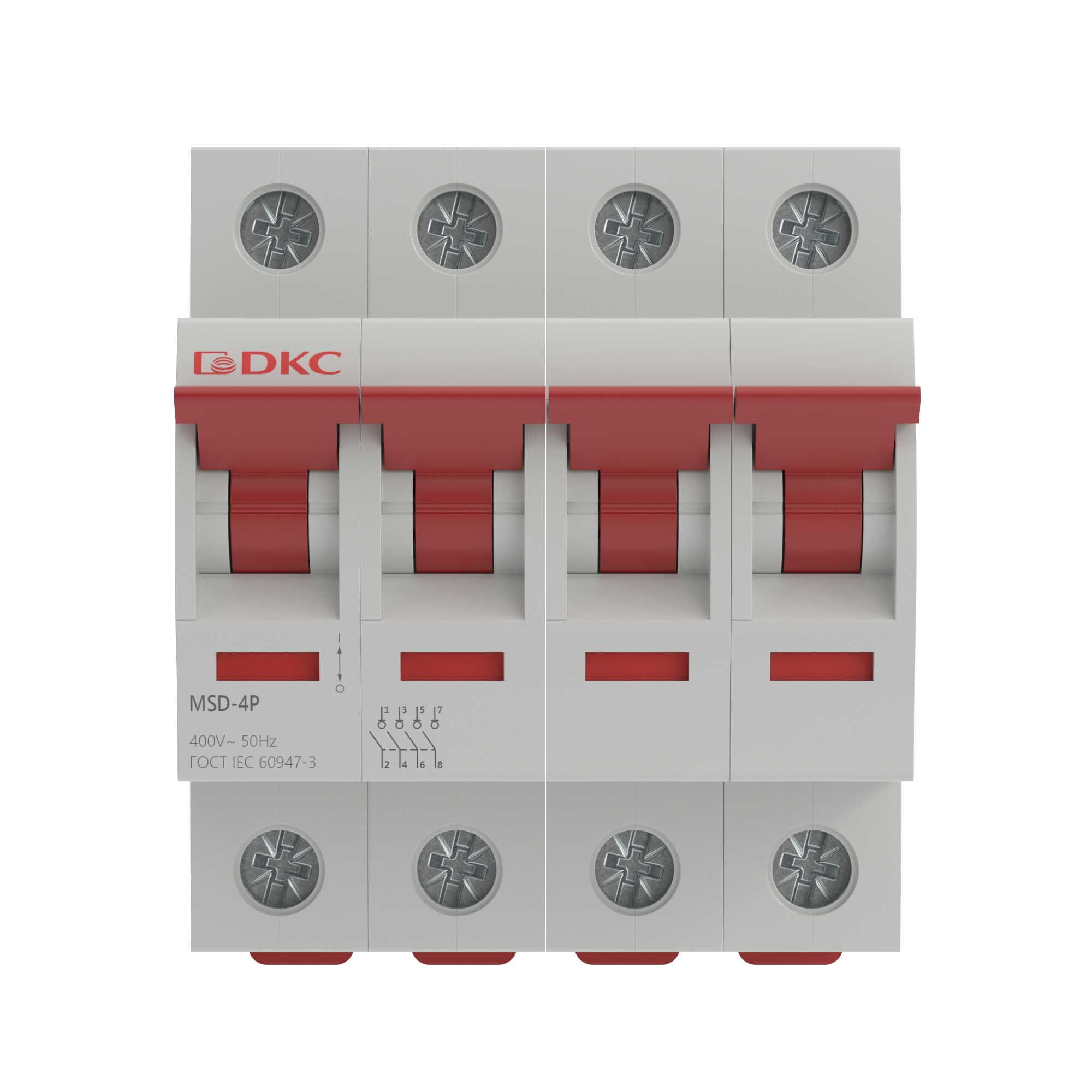

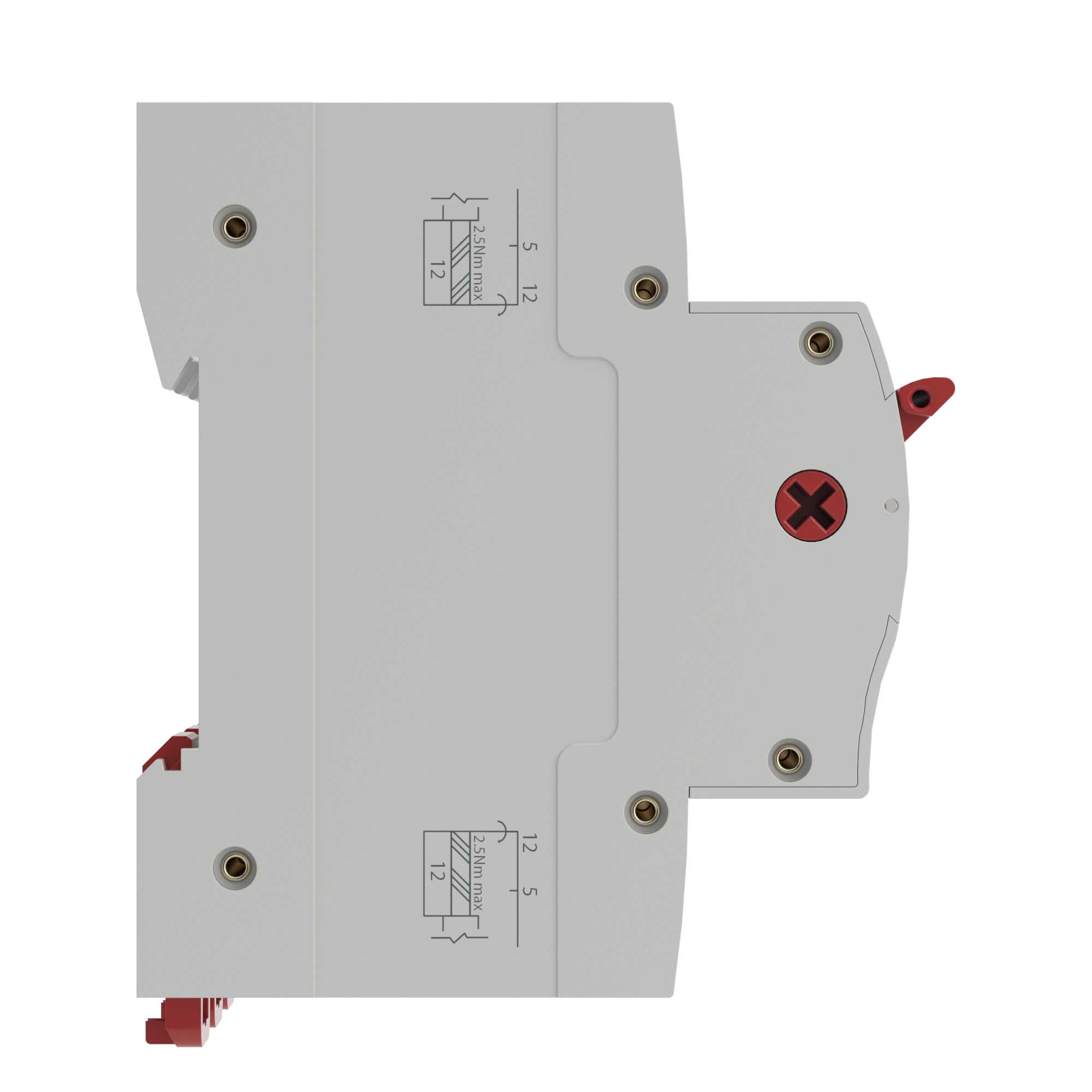

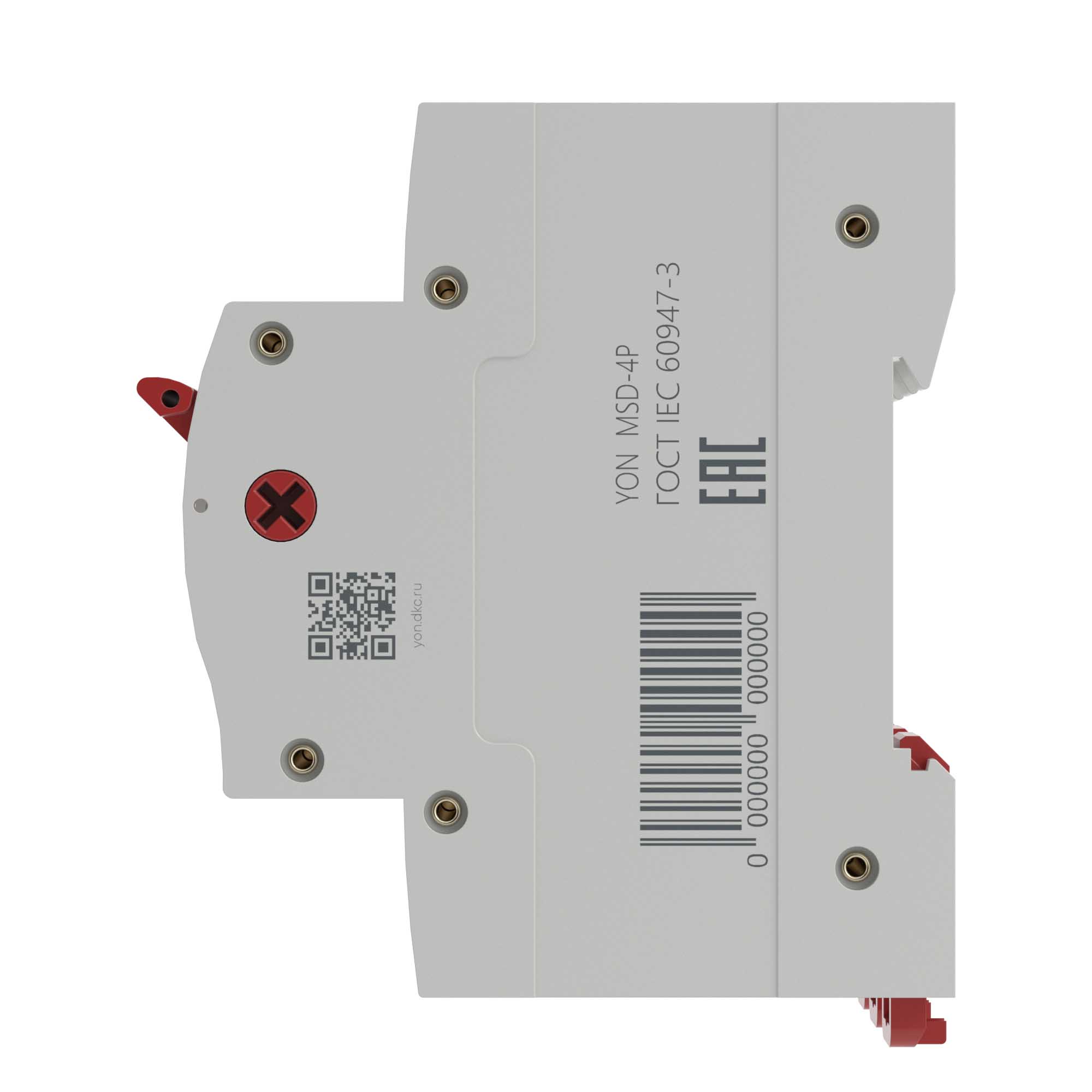

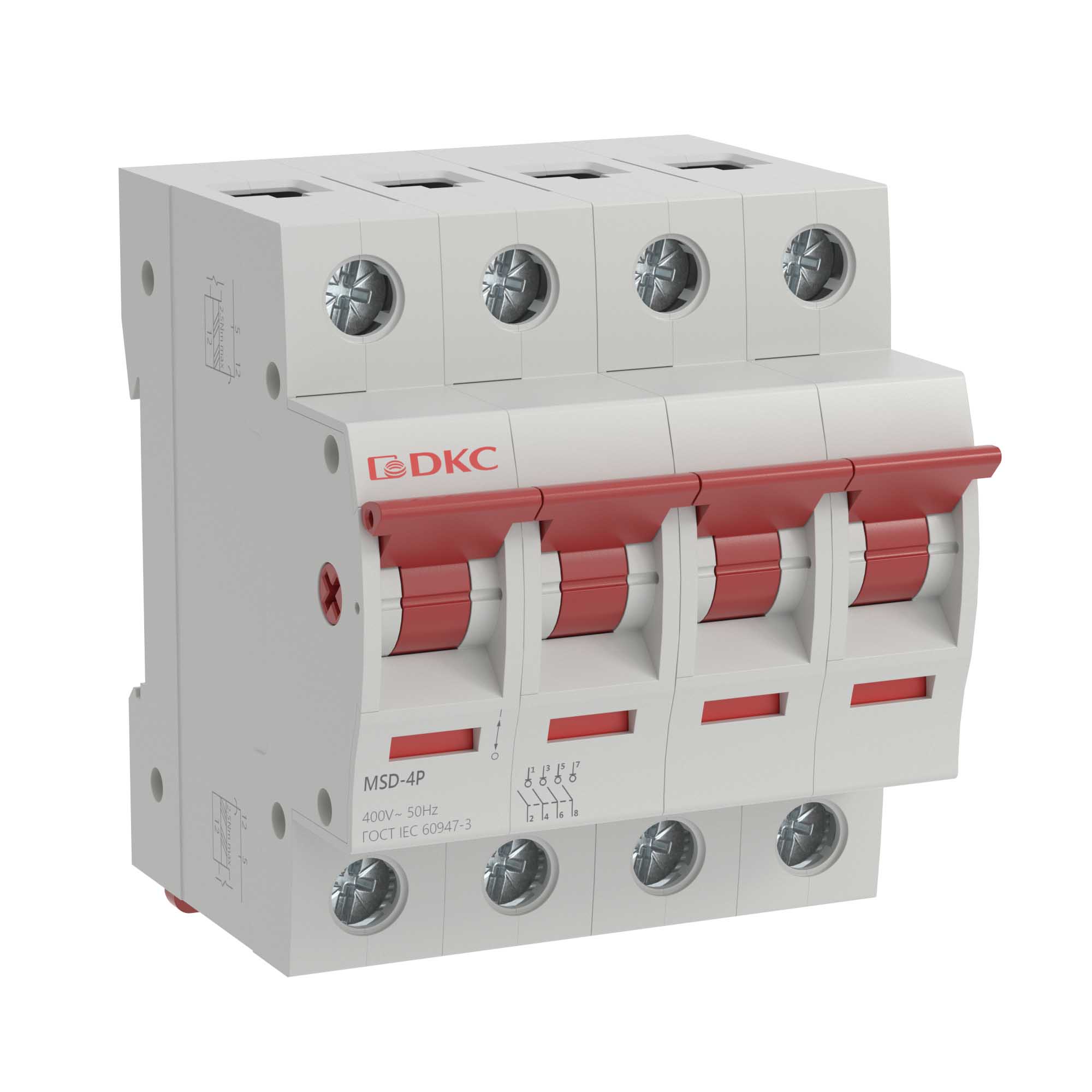

Miniature switch disconnector YON MSD 4P 63A

Code: MSD-4P63
Code: MSD-4P63
  • To ask a question
Switching function Off switch
Rated current, A 63
Rated voltage, V 400
Colour calotte White
Degree of protection (IP) IP20
Number of poles 4
Lamp type Not applicable
Width in number of modular spacings 4
Forced segregation (according to DIN VDE 0113) No
Modular width (total modular distance) 4
Voltage type AC
Total number of poles 4
Rated current In (A) 63
Rated voltage Ue (V) 400
Product/component type Load Break Switch
Series YON max
