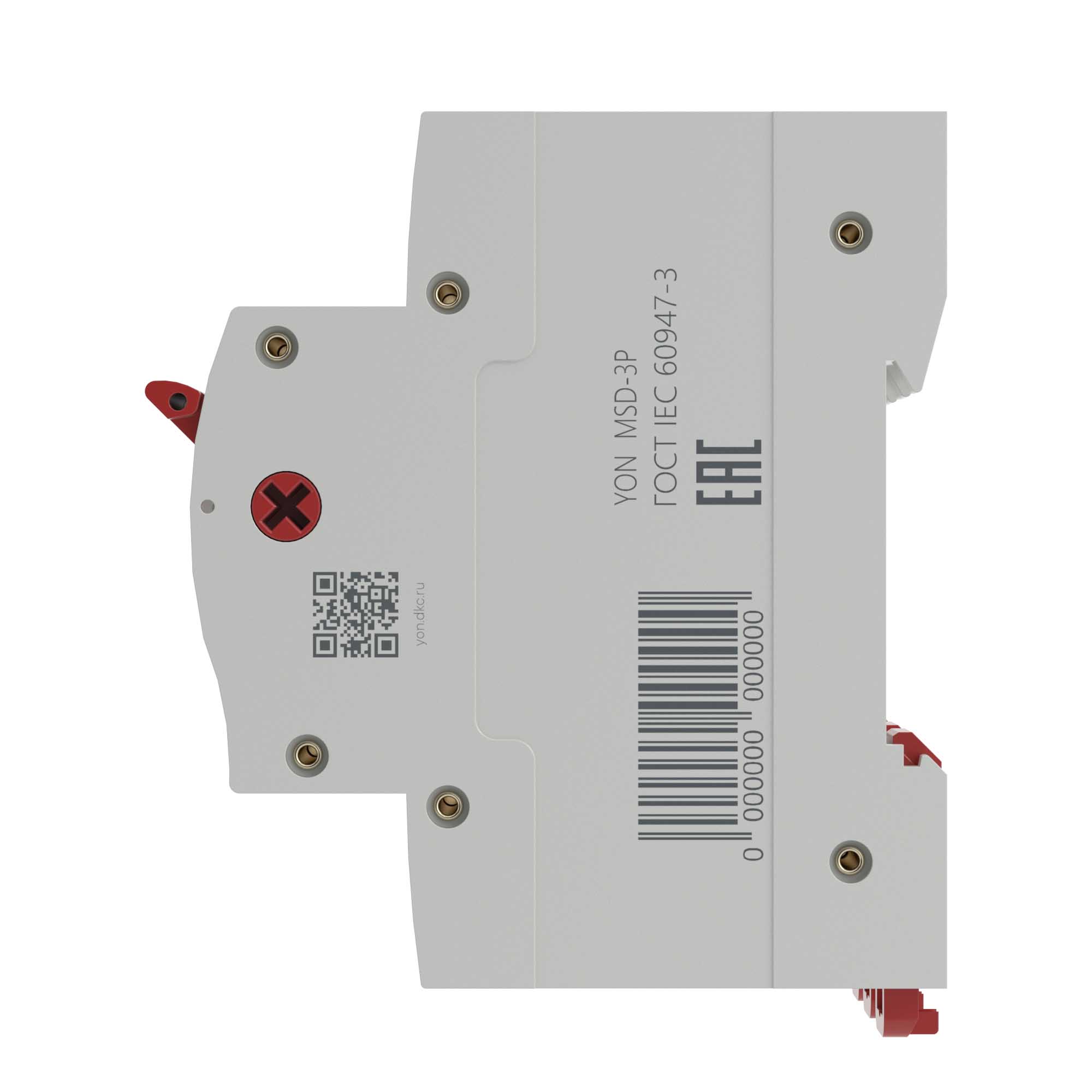

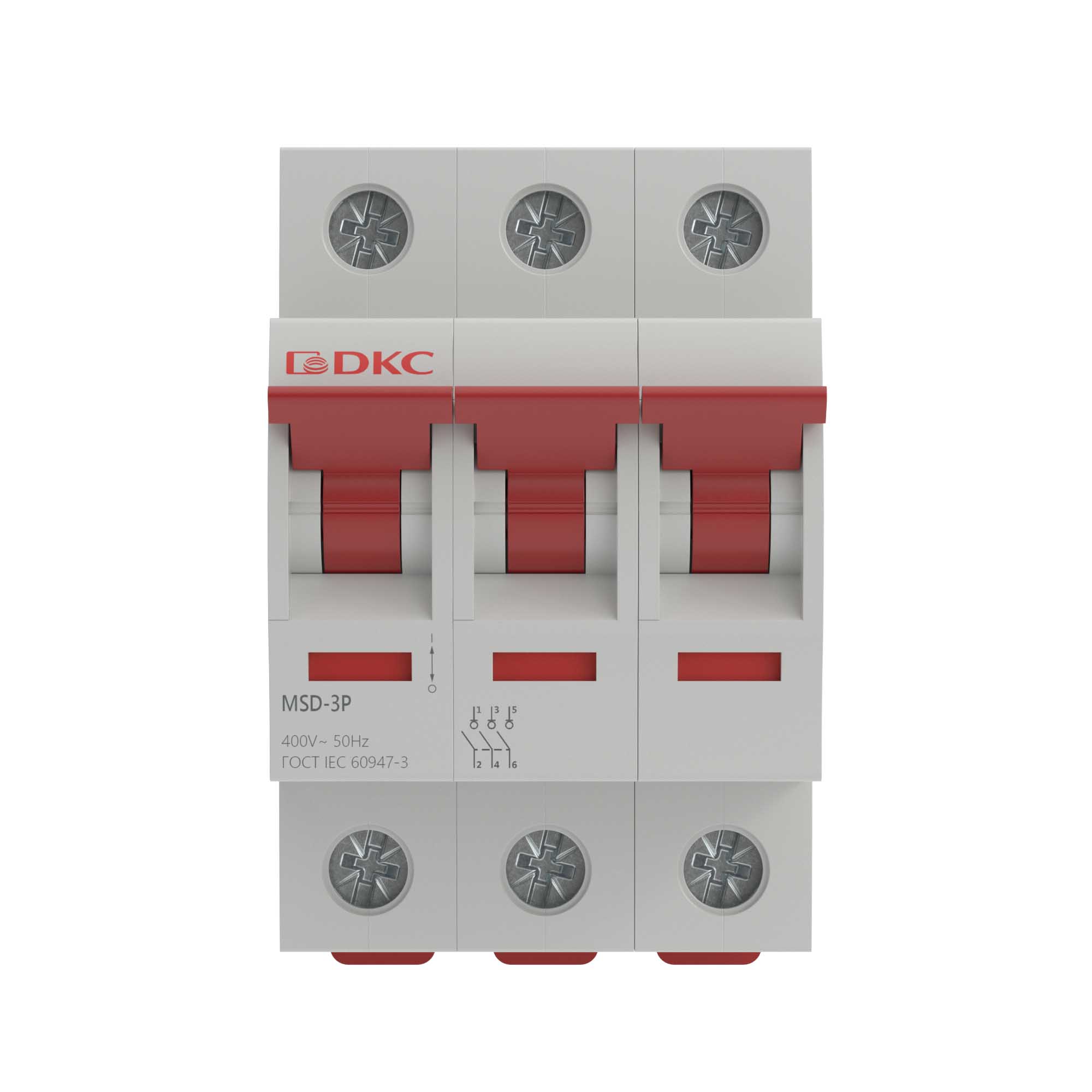

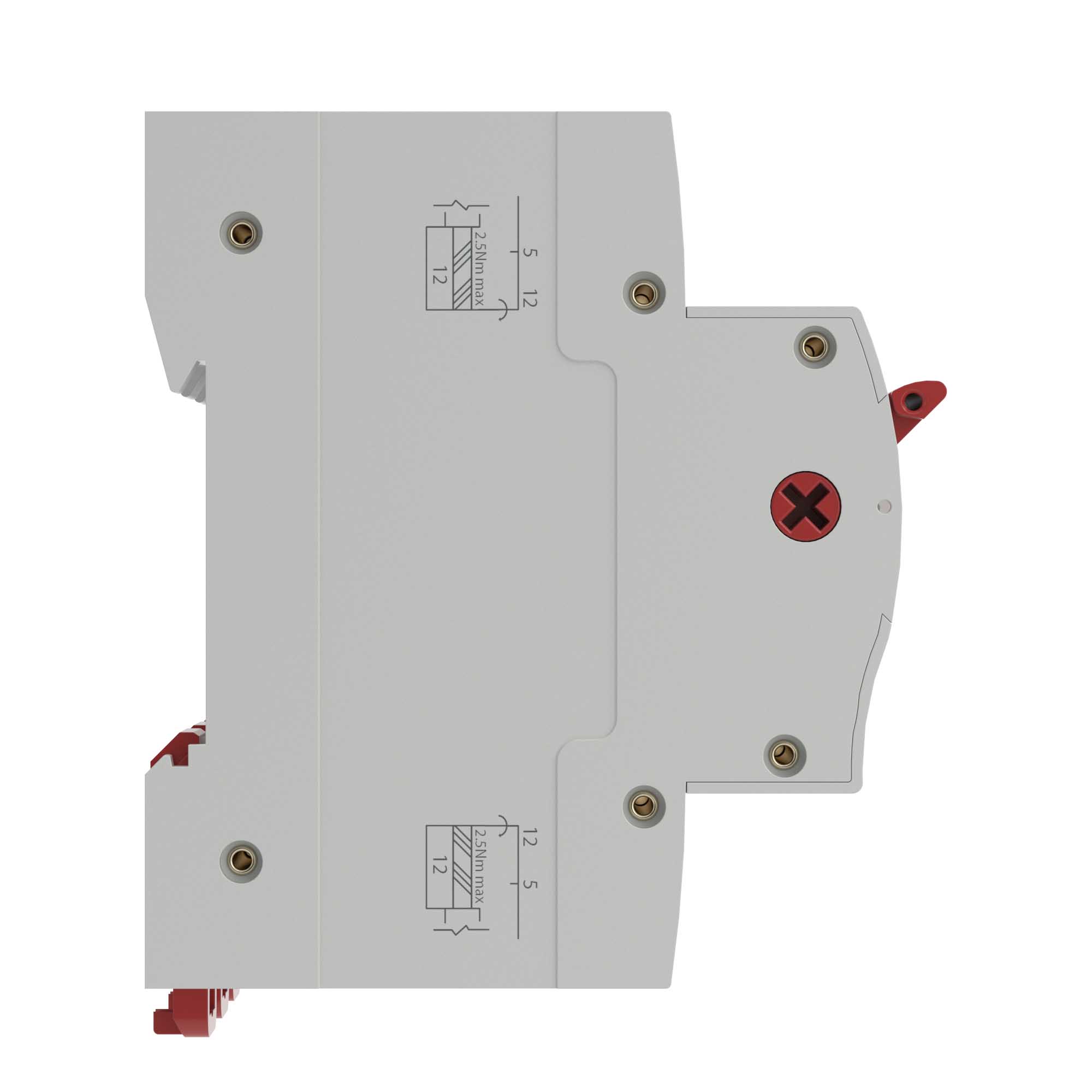

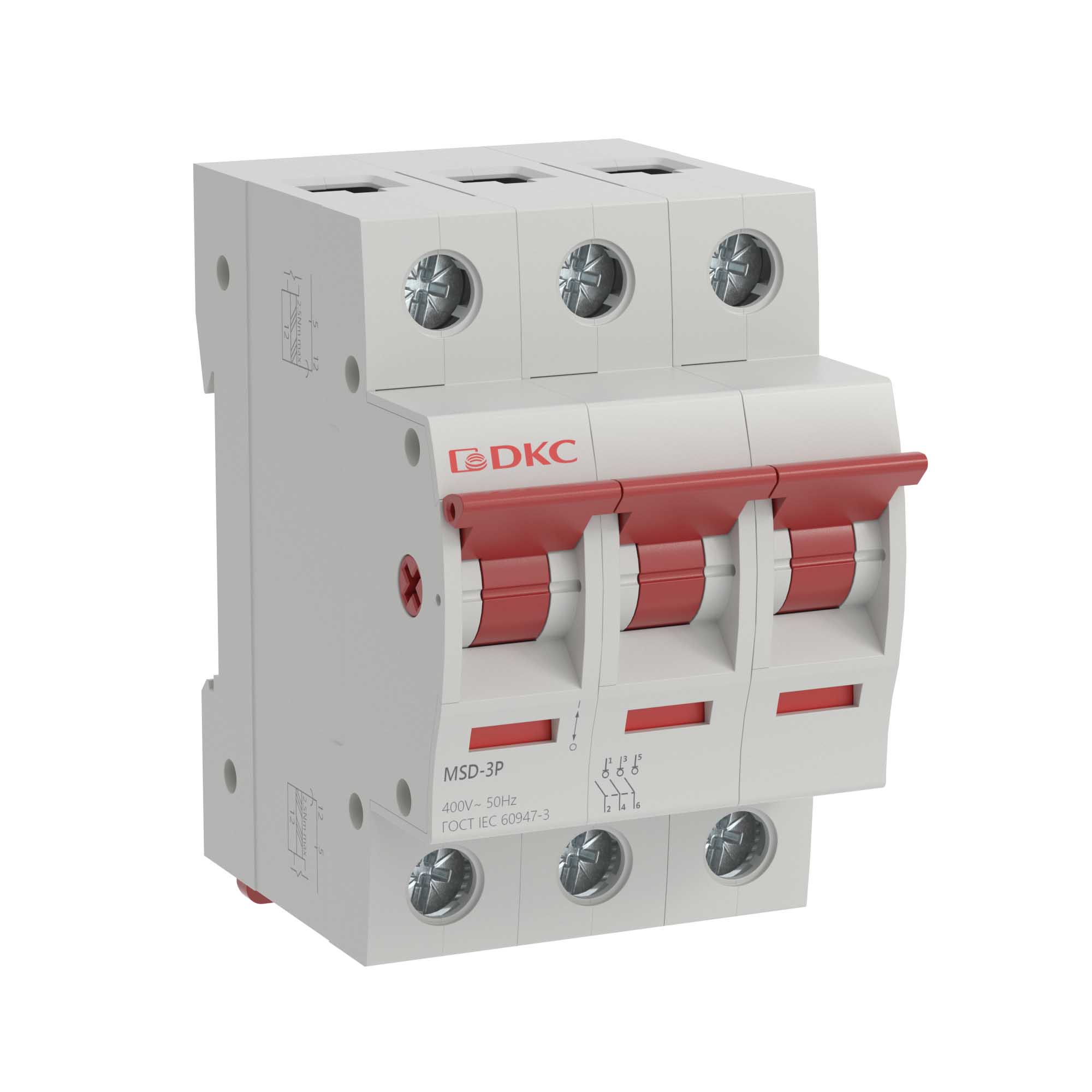

Miniature switch disconnector YON MSD 3P 80A

Code: MSD-3P80

To ask a question

ETIM
?

Switching function	Off switch
Rated current, A	80
Rated voltage, V	400
Colour calotte	White
Degree of protection (IP)	IP20

Number of poles	3
Lamp type	Not applicable
Width in number of modular spacings	3
Forced segregation (according to DIN VDE 0113)	No
