| Voltage type | AC |

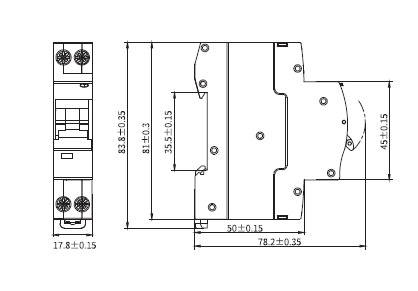

| Built-in depth, mm | 78.2 |
| Rated current, A | 10 |
| Rated voltage, V | 240 |
| Release characteristic | C |
| Rated insulation voltage Ui, V | 690 |
| Rated fault current, A | 100 |
| Leakage current type | A |
| Width in number of modular spacings | 1 |
| Frequency | 50 Hz |
| Degree of protection (IP) | IP20 |
| Number of protected poles | 1 |
| Concurrently switching N-neutral | Yes |
| Rated short-circuit breaking capacity IEC 60947-2, kA | 6 |
| Connectable conductor cross section solid-core, mm² | 16...16 |
| Connectable conductor cross section multi-wired, mm² | 16...16 |
| Ambient temperature during operating, °C | -25...40 |
| Number of poles (total) | 2 |
| Rated impulse withstand voltage Uimp, kV | 4 |
| Rated short-circuit breaking capacity Icn according to EN 61009-1, kA | 6 |
| Disconnection characteristic | Undelayed |
| Rated short-circuit breaking capacity according to EN 61009, kA | 6 |
| Tripping characteristic (current curve) | C |
| Total number of poles | 2 |
| Type release | Thermal-magnetic |
| Rated current In (A) | 10 |
| Rated voltage Ue (V) | 230 |
| Voltage type | AC |
| Product/component type | Residual Current Operated Circuit-Breaker with Integral Overcurrent Protection |
| Series | YON max |
