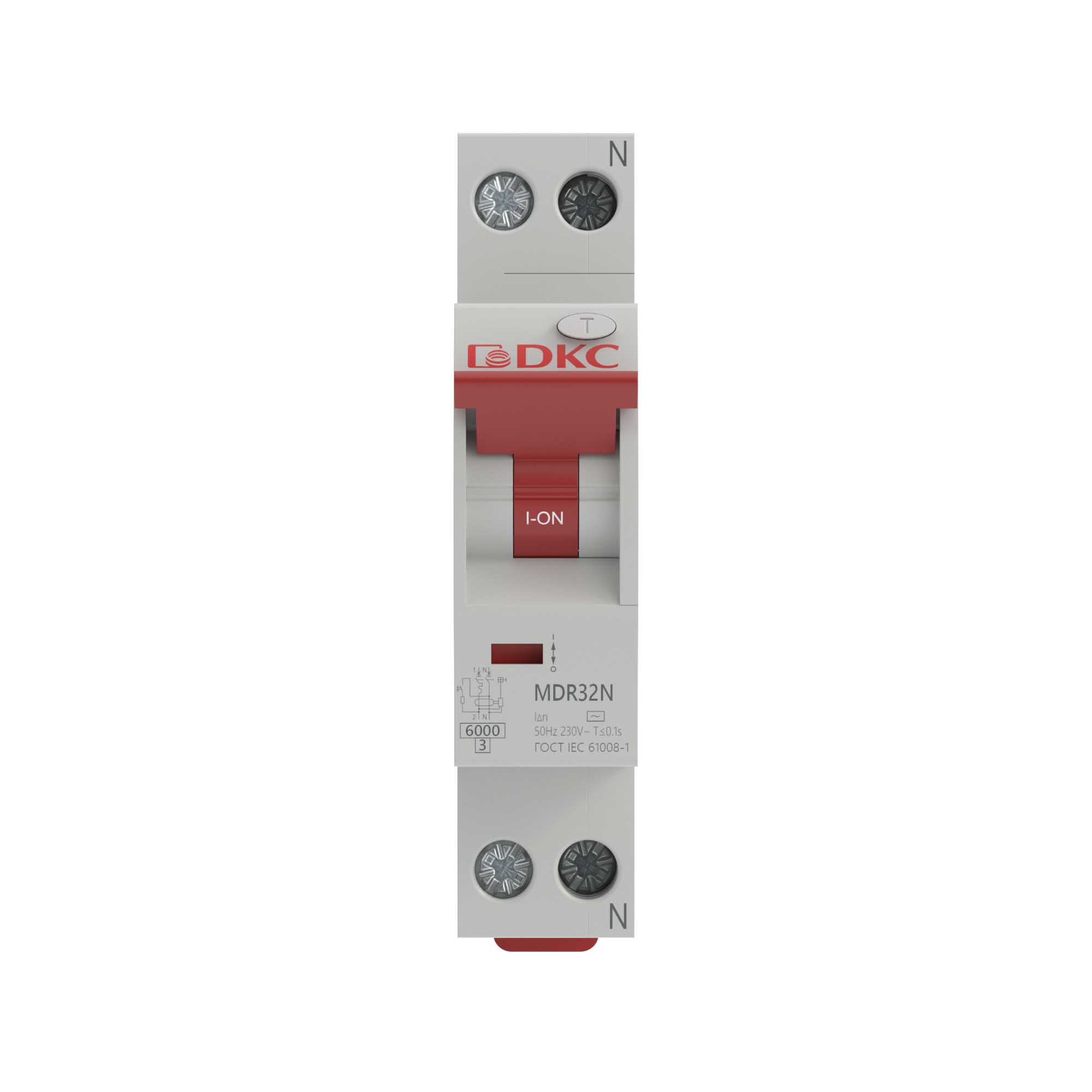

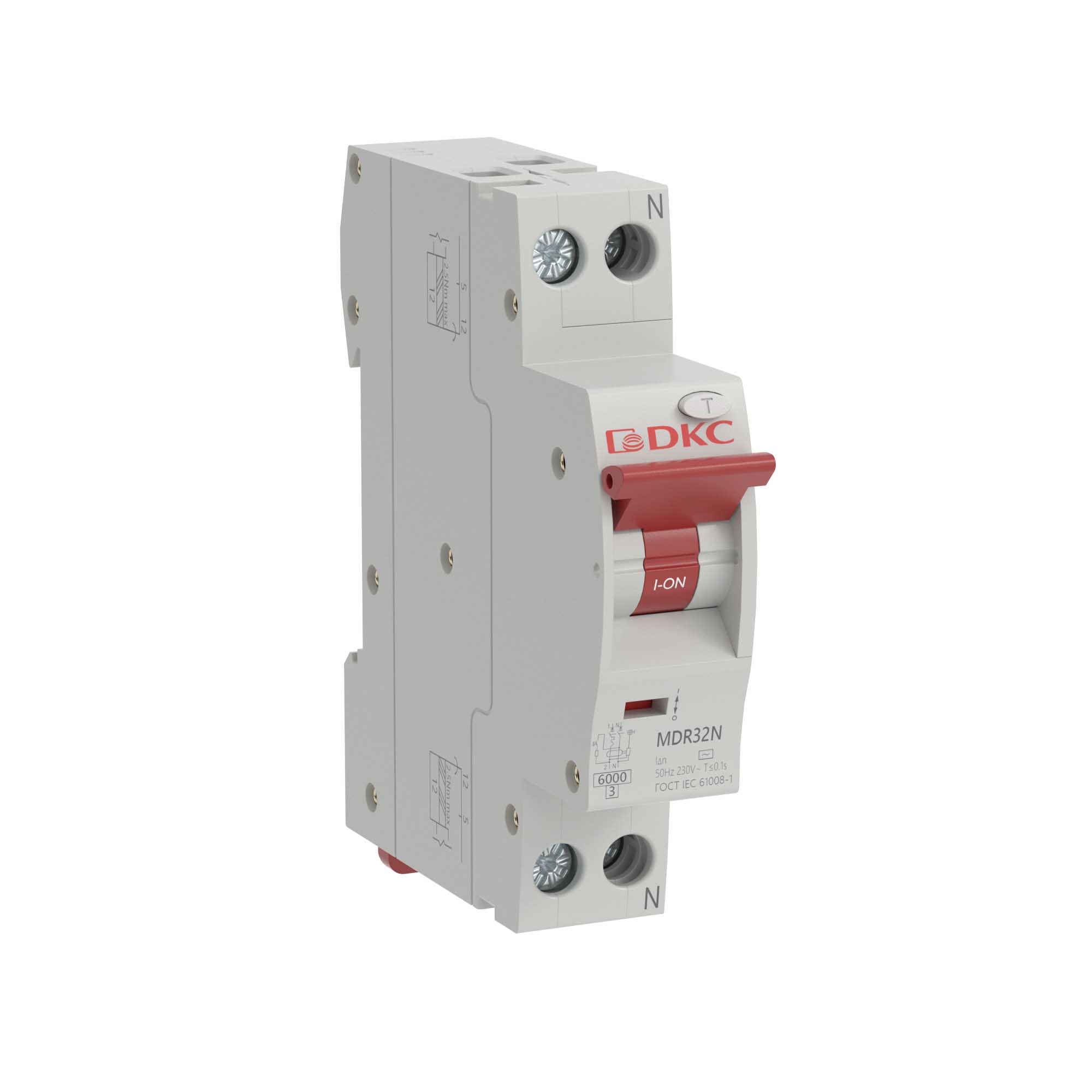

RCBO YON MDR32N 1P+N 6A C 300mA 6kA type A

Code: MDR32N-1N4C6-A
RCBO YON MDR32N 1P+N 6A C 300mA 6kA type A
RCBO YON MDR32N 1P+N 6A C 300mA 6kA type A
Code: MDR32N-1N4C6-A
  • To ask a question
  • Characteristics
  • The accompanying goods
  • Promo
  • Viewed items
  • News
Voltage type AC

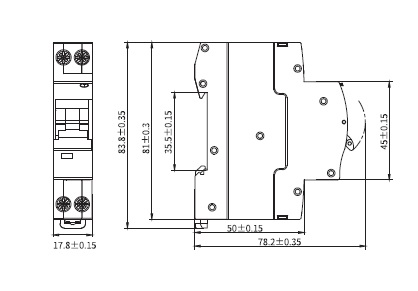

Built-in depth, mm 78.2
Rated current, A 6
Rated voltage, V 240
Release characteristic C
Rated insulation voltage Ui, V 690
Rated fault current, A 300
Leakage current type A
Width in number of modular spacings 1
Frequency 50 Hz
Degree of protection (IP) IP20
Number of protected poles 1
Concurrently switching N-neutral Yes
Rated short-circuit breaking capacity IEC 60947-2, kA 6
Connectable conductor cross section solid-core, mm² 16...16
Connectable conductor cross section multi-wired, mm² 16...16
Ambient temperature during operating, °C -25...40
Number of poles (total) 2
Rated impulse withstand voltage Uimp, kV 4
Rated short-circuit breaking capacity Icn according to EN 61009-1, kA 6
Disconnection characteristic Undelayed
Rated short-circuit breaking capacity according to EN 61009, kA 6
