| Mounting method | DIN rail |
| Rated voltage, V | 240 |
| Leakage current type | AC |
| Short-circuit breaking capacity (Icw), kA | 10 |
| Frequency | 50 Hz |
| Degree of protection (IP) | IP20 |
| Ambient temperature during operating, °C | -25...40 |
| Rated impulse withstand voltage Uimp, kV | 4 |
| Rated current, A | 80 |
| Number of poles | 2 |
| Rated fault current, mA | 30 |
| Width in number of modular spacings | 2 |
| Selective protection | No |
| Surge current capacity, kA | 10 |
| Voltage type | AC |
| Rated residual operating current, mA | 30 |
| Total number of poles | 2 |
| Rated current In (A) | 80 |
| Rated voltage Ue (V) | 400 |

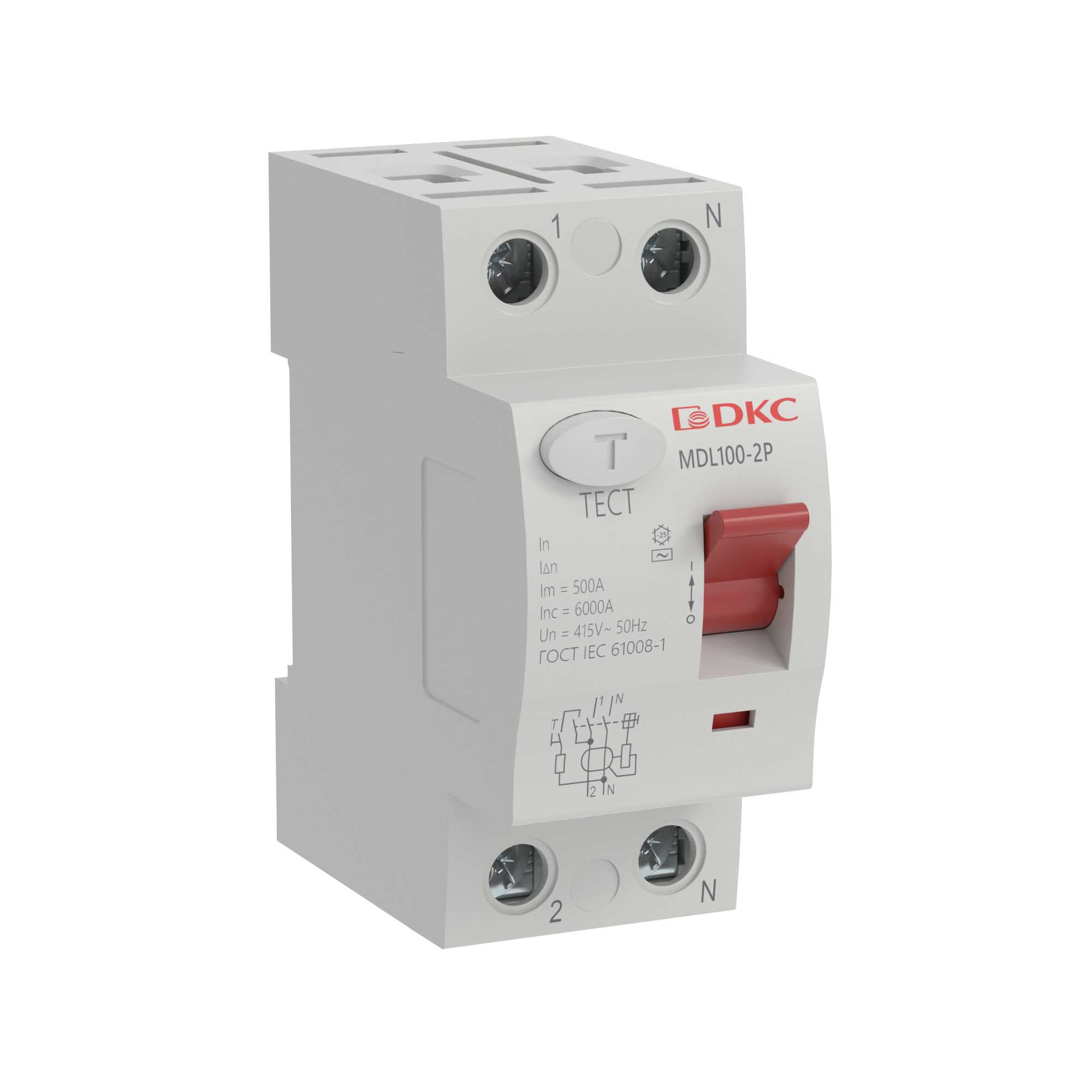

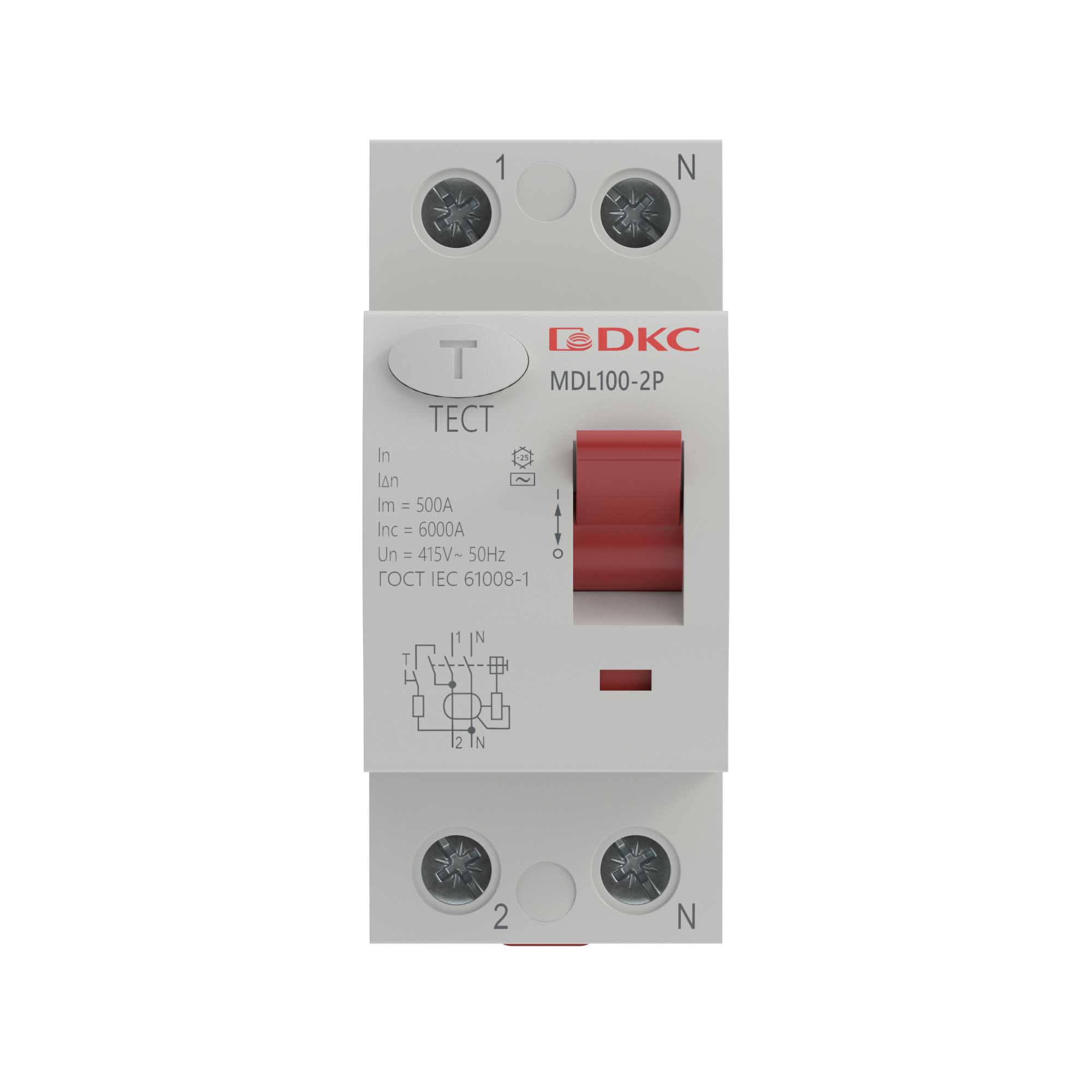

| Product/component type | Residual Current Circuit Breaker |
| Series | YON max |
