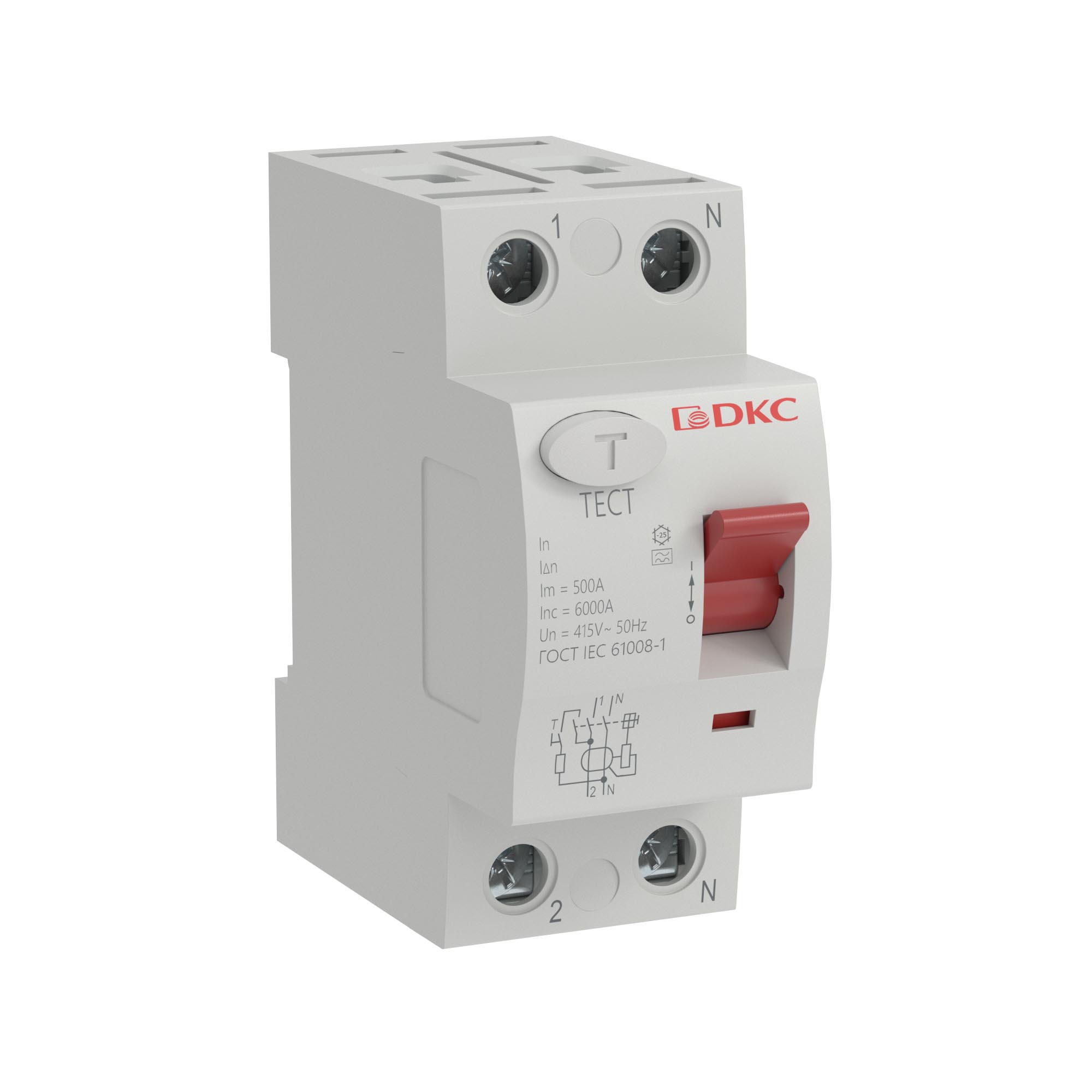

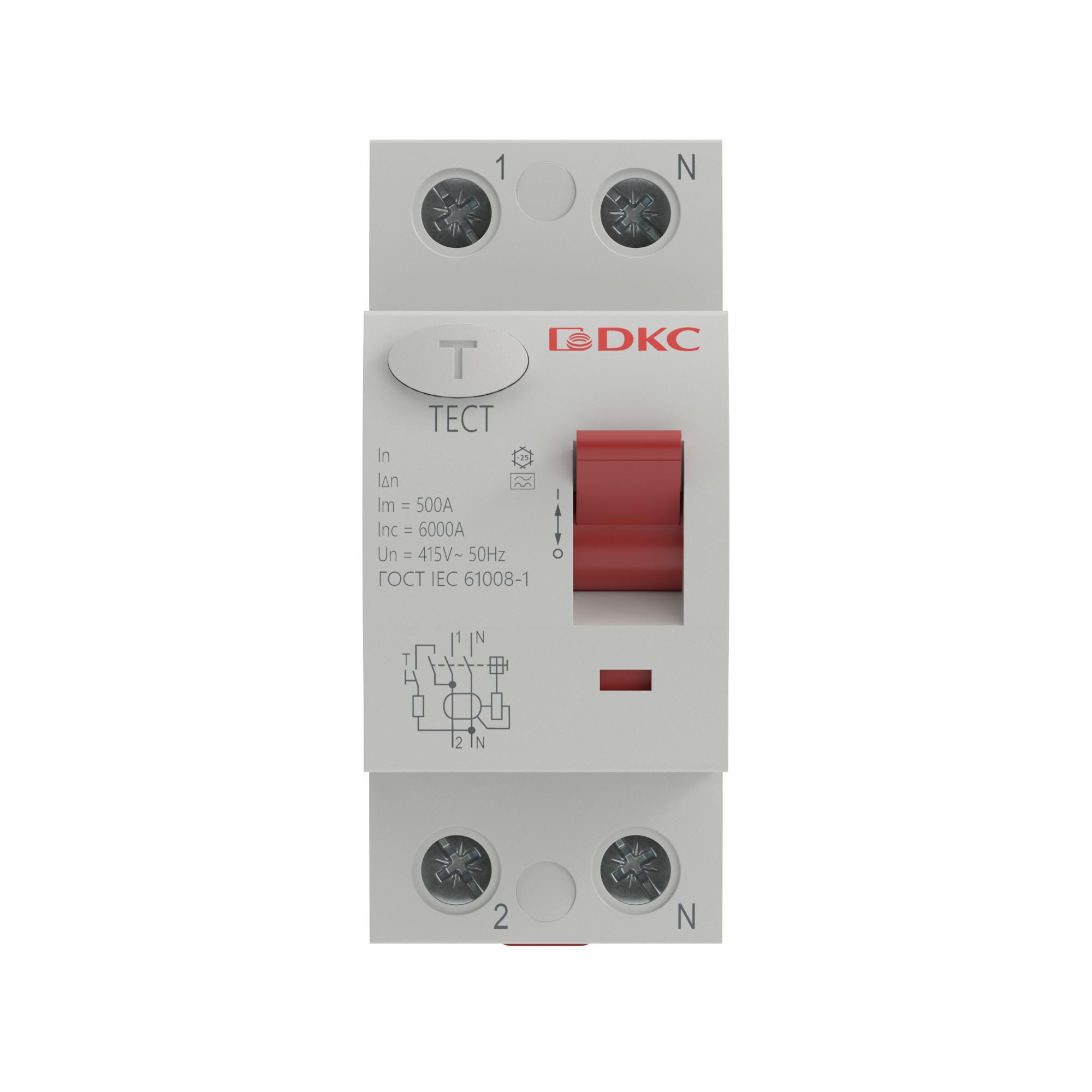

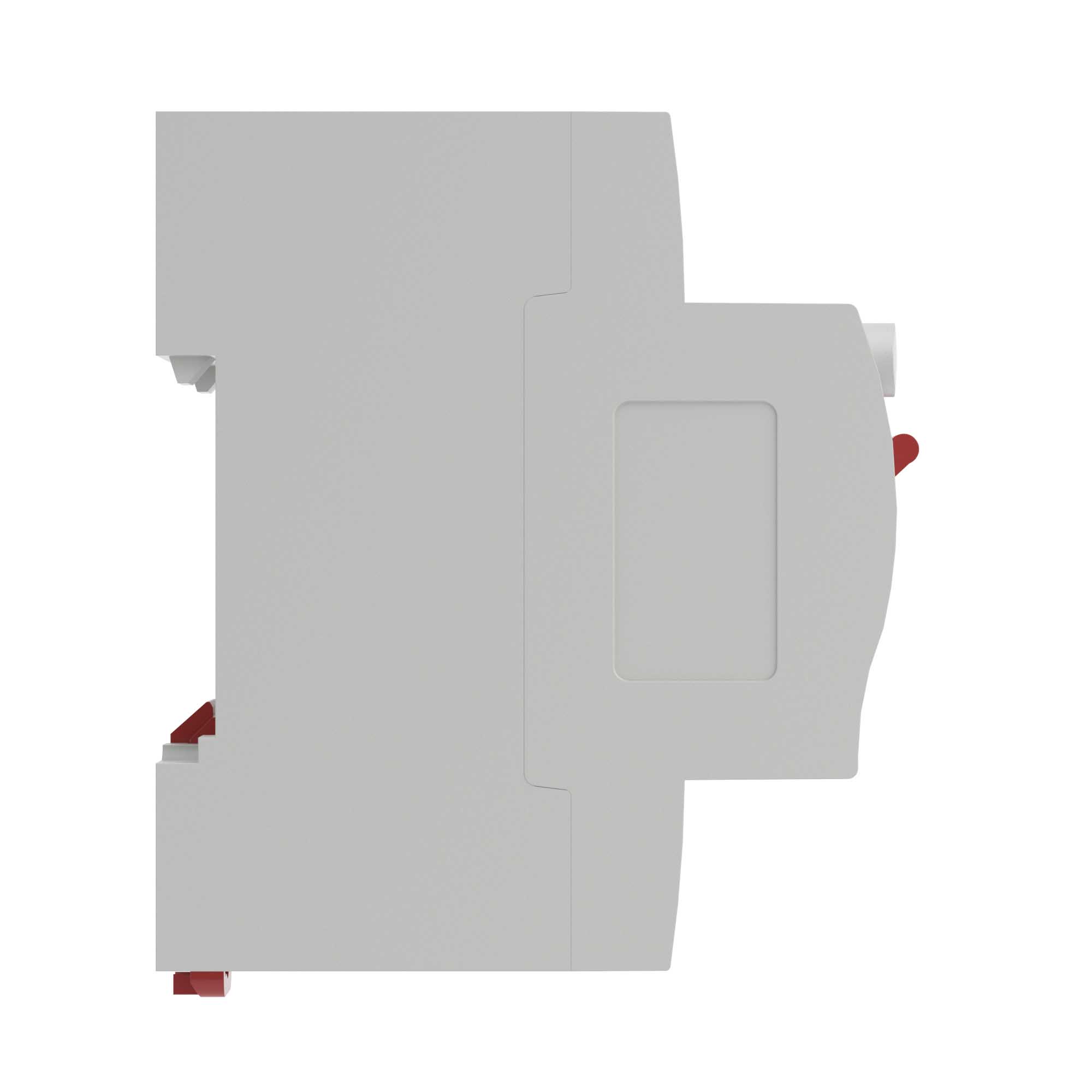

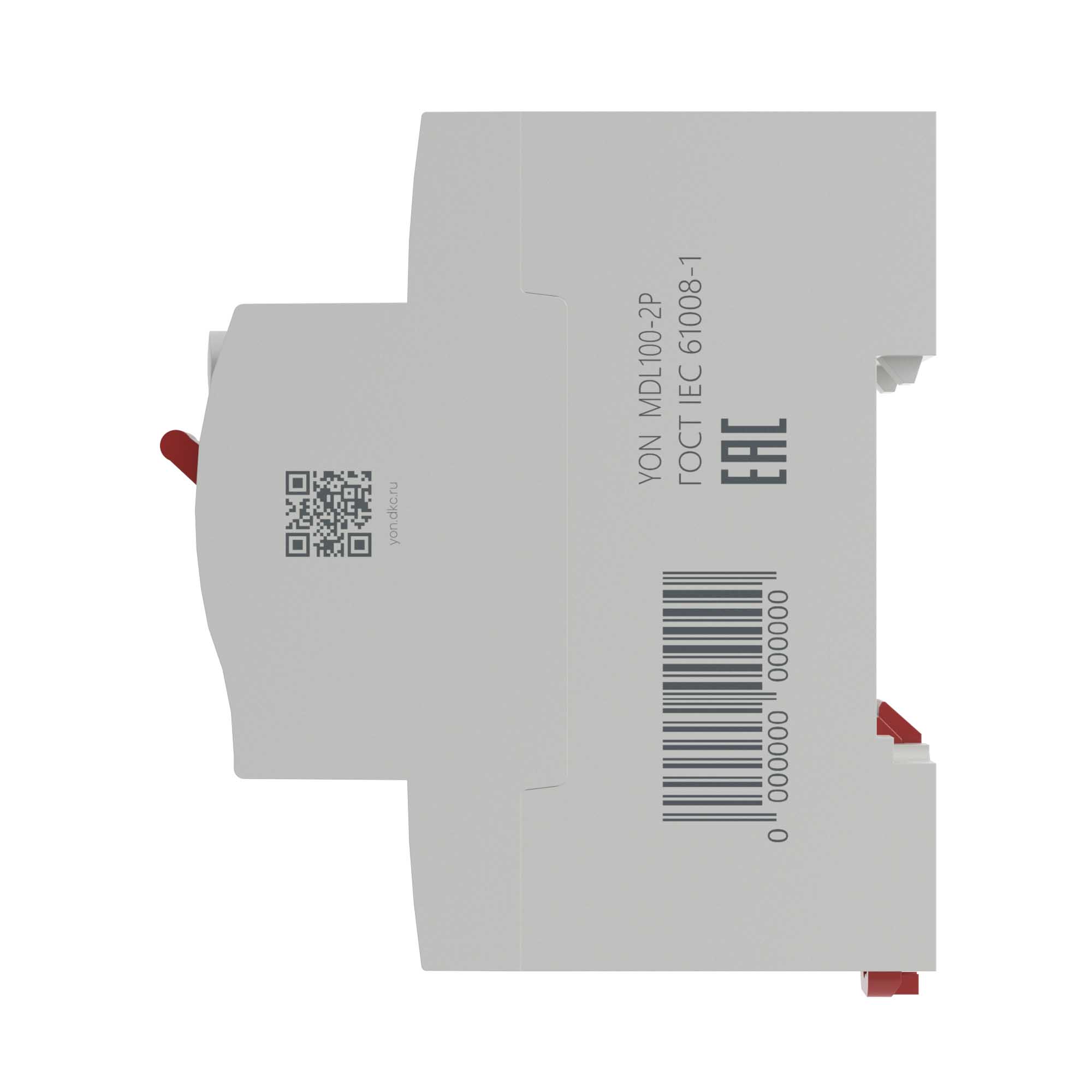

RCCB YON MDL100 2P 63А 30mA type A

Code: MDL100-2P2-63-A
Code: MDL100-2P2-63-A
  • To ask a question
Mounting method DIN rail
Rated current, A 63
Rated voltage, V 230
Number of poles 2
Rated fault current, mA 30
Leakage current type A
Selective protection No
Short-circuit breaking capacity (Icw), kA 10
Surge current capacity, kA 10
Width in number of modular spacings 2
Frequency 50 Hz
Degree of protection (IP) IP20
Ambient temperature during operating, °C -25...40
Rated impulse withstand voltage Uimp, kV 4
Voltage type AC
Rated residual operating current, mA 30
Total number of poles 2
Rated current In (A) 63
Rated voltage Ue (V) 230
Product/component type Residual Current Circuit Breaker
Series YON max
Russian Classification of Products by Economic Activities (OKPD 2) 27.12.22.000
Commodity Nomenclature of Foreign Economic Activity 8536201007
