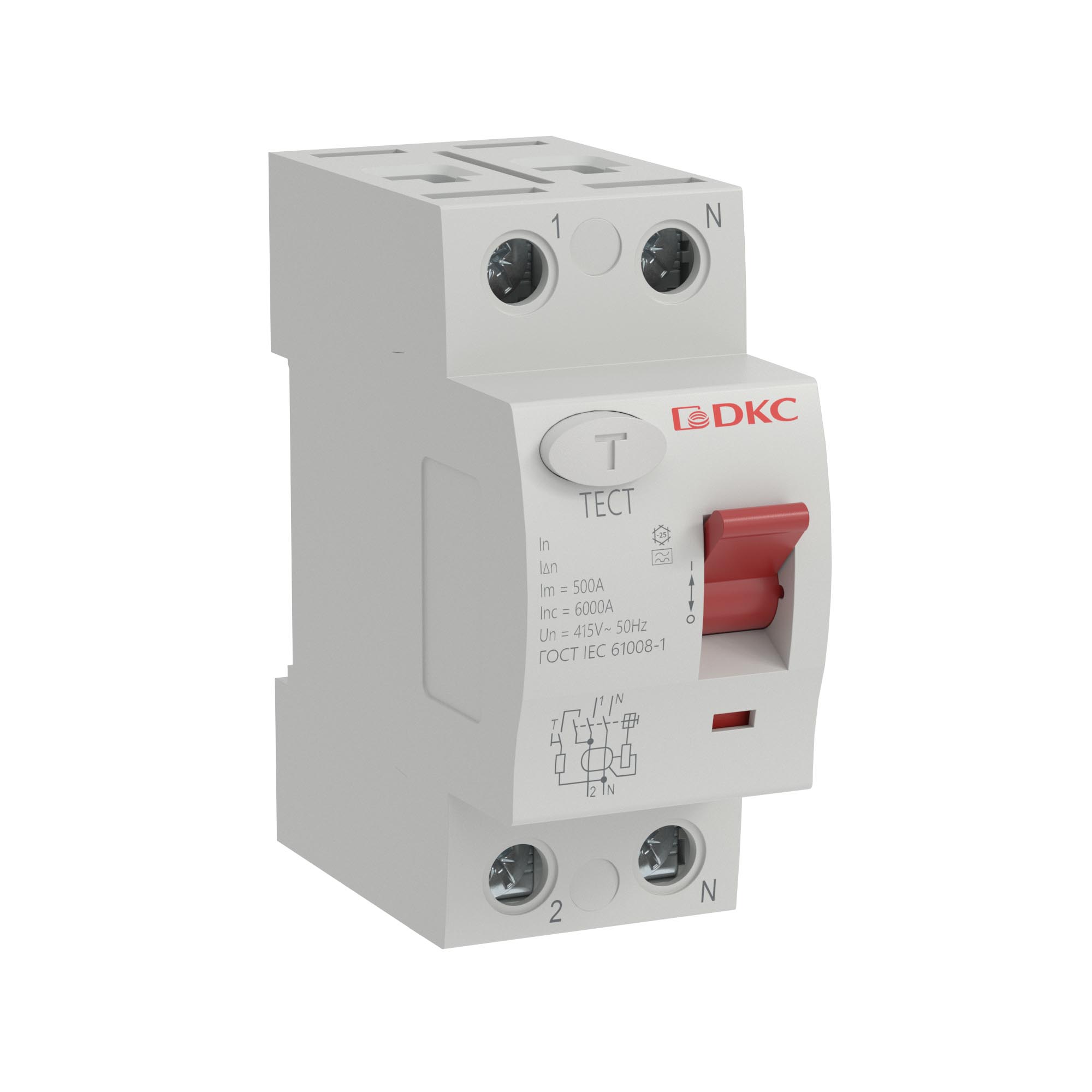

RCCB YON max 2P, 100mA, 32A, type A

Code: MDL100-2P3-32-A
RCCB YON max 2P, 100mA, 32A, type A
RCCB YON max 2P, 100mA, 32A, type A
Code: MDL100-2P3-32-A
  • To ask a question
  • Characteristics
  • The accompanying goods
  • Promo
  • Viewed items
  • News
Mounting method DIN rail
Rated current, A 32
Rated voltage, V 240
Number of poles 2
Rated fault current, mA 100
Leakage current type A
Selective protection No
Short-circuit breaking capacity (Icw), kA 10
Surge current capacity, kA 10
Width in number of modular spacings 2
Frequency 50 Hz
Degree of protection (IP) IP20
Ambient temperature during operating, °C -25...40
Rated impulse withstand voltage Uimp, kV 4
