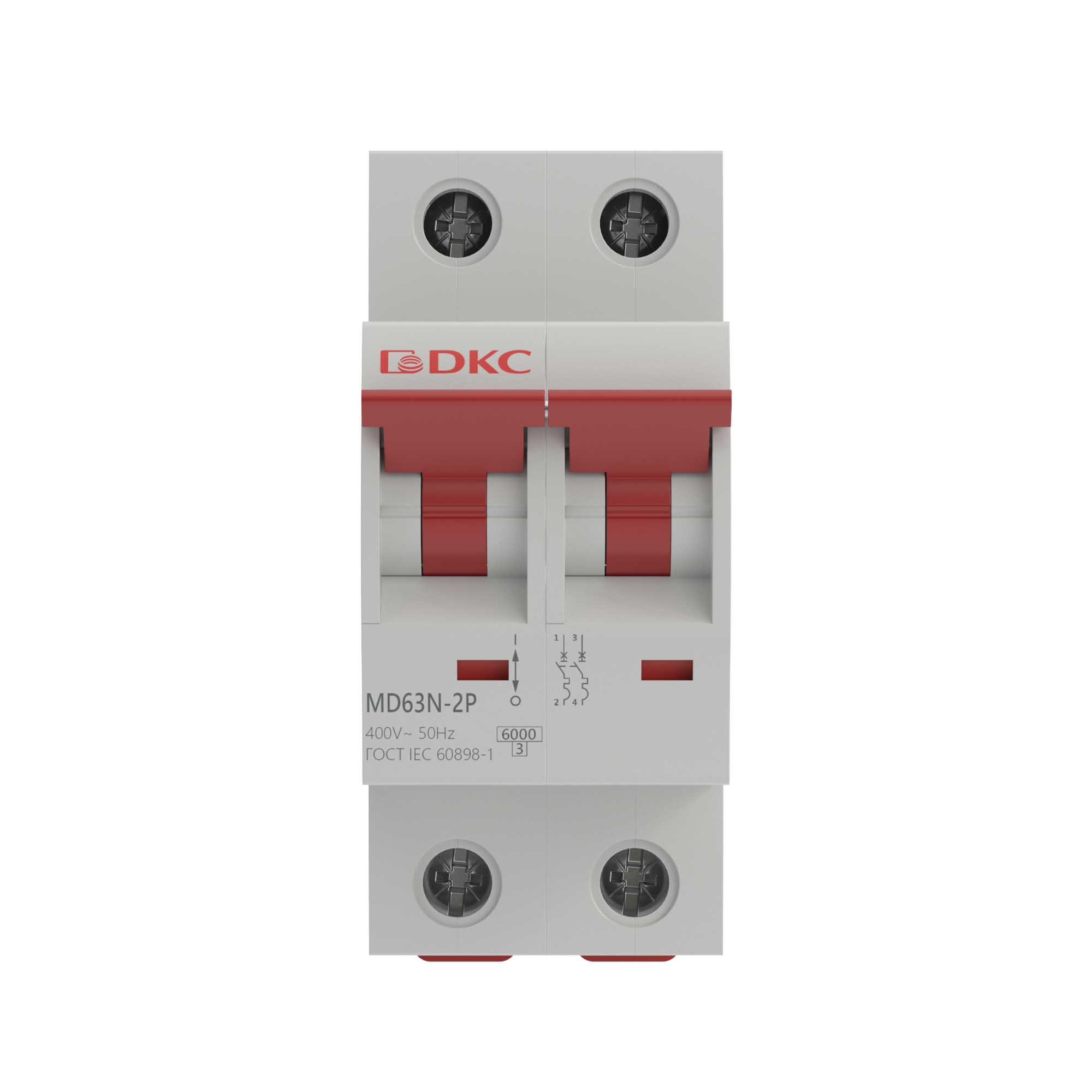

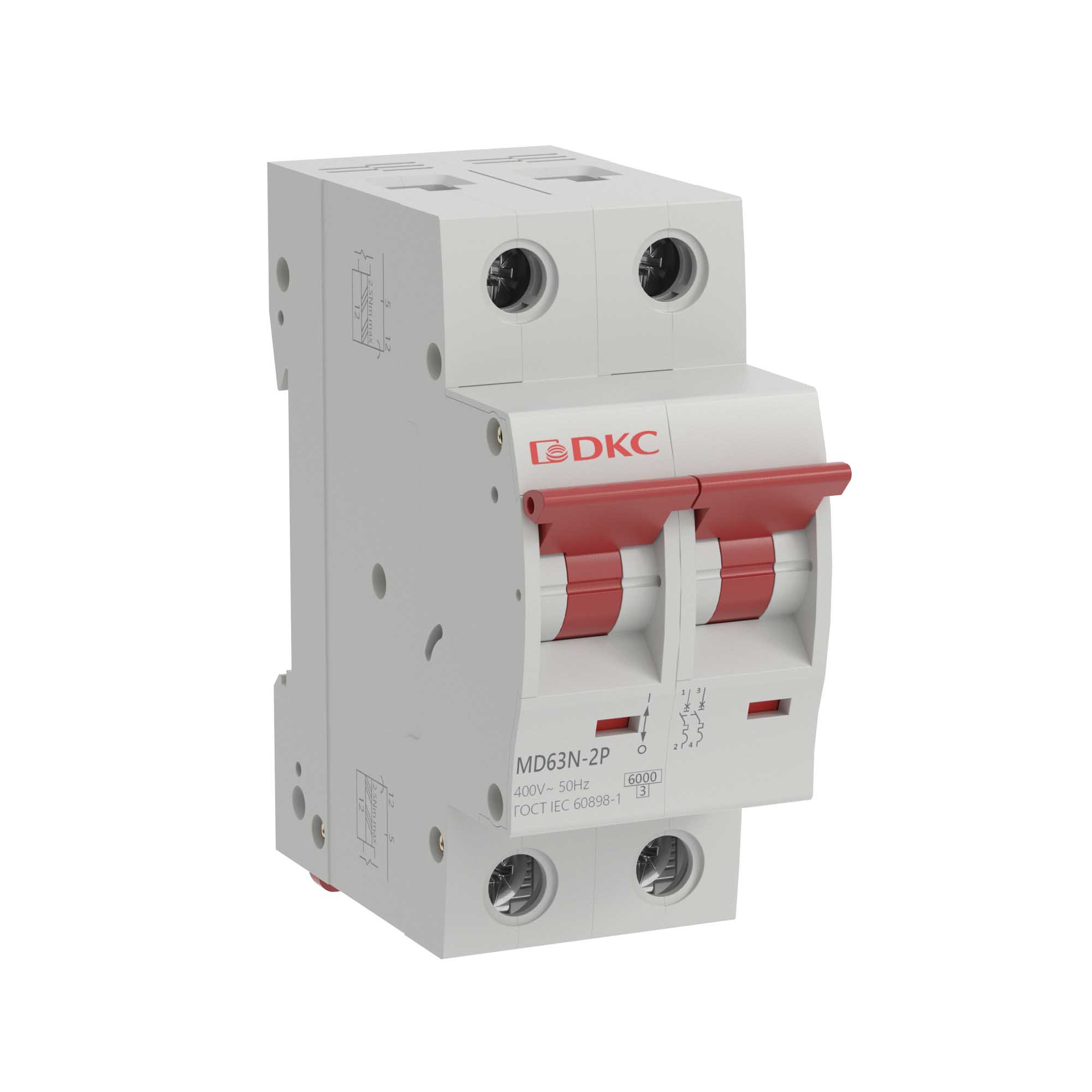

Miniature circuit breaker YON MD63N 2P 16A B 6kA
Code: MD63N-2PB16
Miniature circuit breaker YON MD63N 2P 16A B 6kA
Code: MD63N-2PB16
Voltage type | AC |
Rated voltage, V | 400 |
Frequency, Hz | 50...50 |
Rated insulation voltage Ui, V | 500 |
Current limiting class | 3 |
Over voltage category | 4 |
Pollution degree | 3 |
Degree of protection (IP) | IP20 |
Concurrently switching N-neutral | Yes |
Ambient temperature during operating, °C | -25...40 |
Additional equipment possible | Yes |
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V, kA | 10 |
Rated impulse withstand voltage Uimp, kV | 4 |
Rated current, A | 16 |
Release characteristic | B |

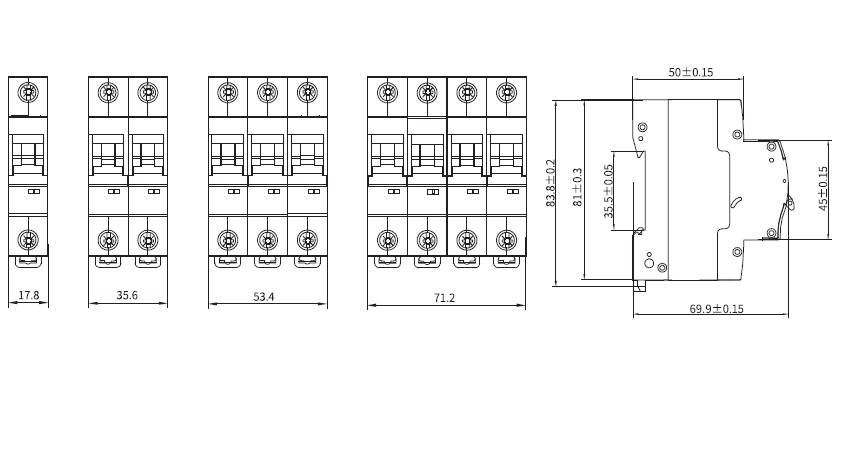

Width in number of modular spacings | 2 |

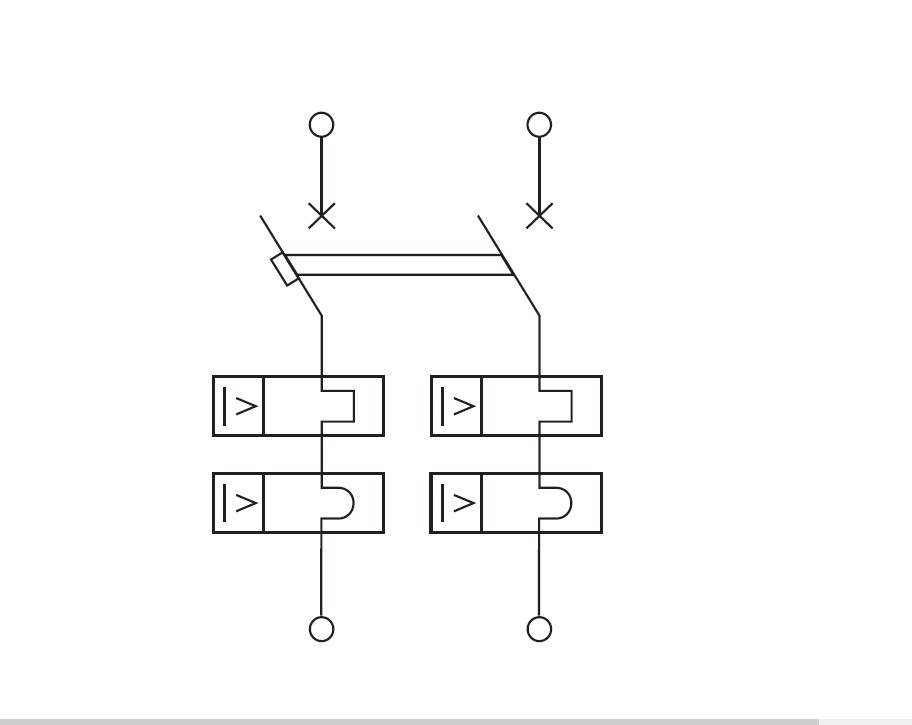

Number of protected poles | 2 |
Number of poles (total) | 2 |
Rated short-circuit breaking capacity Icn EN 60898 at 400 V, kA | 6 |
Rated short-circuit breaking capacity Icn EN 60898 at 230 V, kA | 6 |
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V, kA | 6 |
