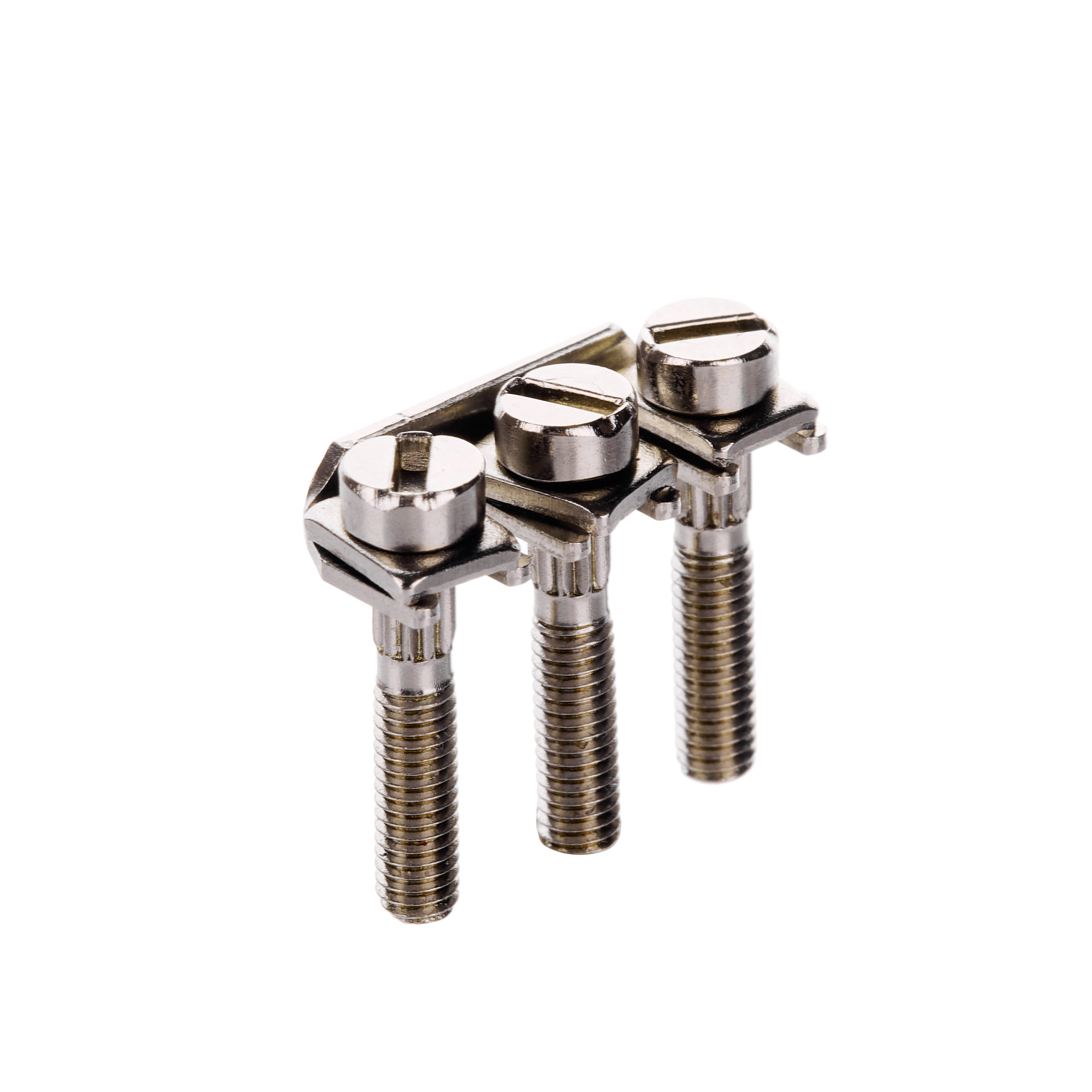

BF-3-RTKS-S
Code: BF-3-RTKS-S
BF-3-RTKS-S
Code: BF-3-RTKS-S
| Mounting method | Screwable |
| Number of bridged clamps | 3 |
| Colour | Grey |
| Model | Transverse connector |
| Insulated | Yes |
| Rated voltage, V | 1000 |
| Rated current In, A | 45 |
| Modular spacing, mm | 23.55 |
| With shock protection | Yes |
| Explosion-tested version 'Ex e' | No |
| Product type | Accessory |
| Type of accessories | Jumper |
| Cross-conneсtor type | Screw |
| Pitch | 8,2 mm |
| Q'ty of poles | 3 |
| Tightening torque range for fixing screw | 0,6−0,8 N∙m |
| Weight | 6,9 g |
