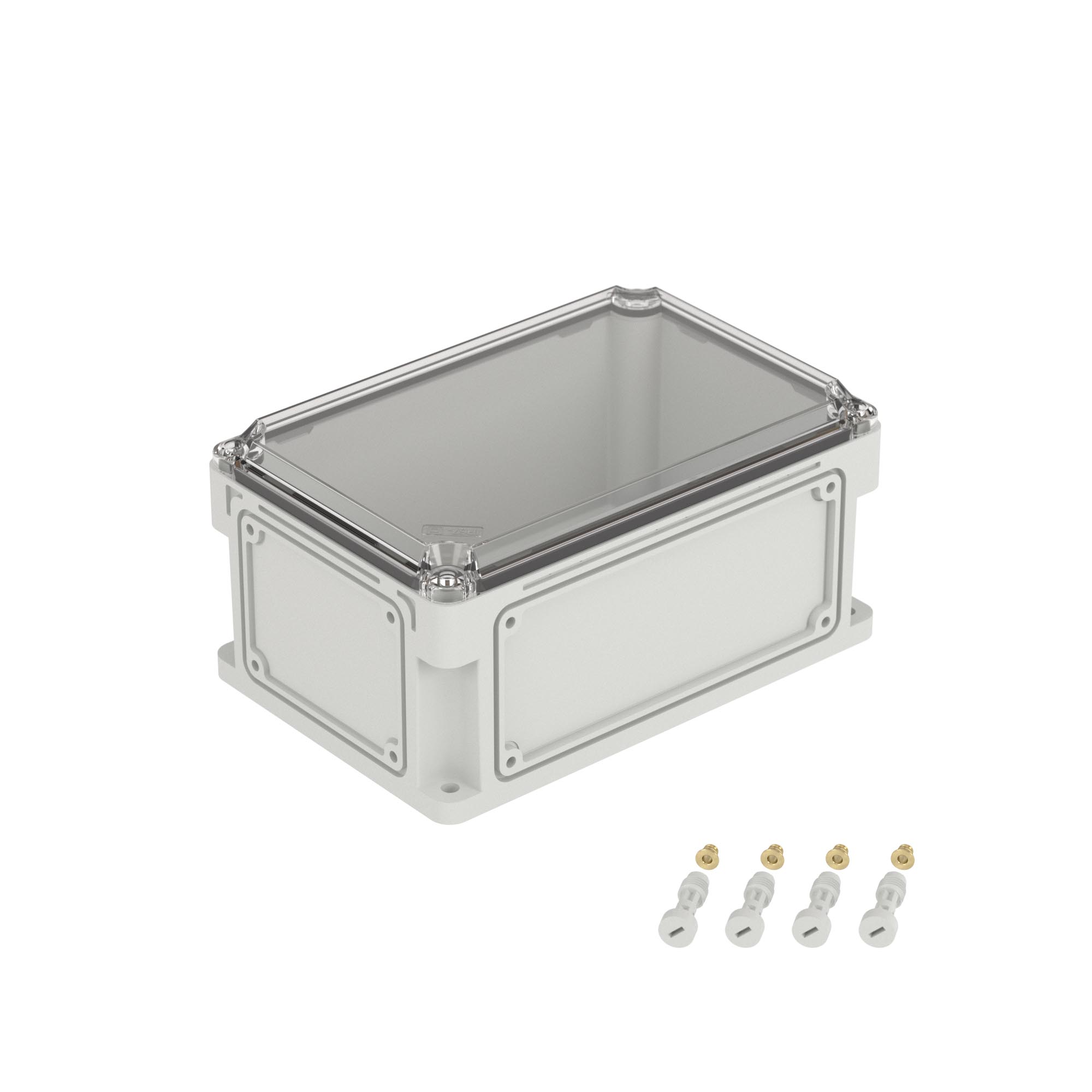

RAM box enclosure w/o MP 300х200х146 mm with flanges and transparent сover 21 mm, IP67

Code: 532211
  • To ask a question
Colour Grey
Width, mm 200
Height, mm 146
Depth, mm 300
RAL-number 7035
With mounting plate Yes
Number of doors 1
Number of locks 1
EMC-version Yes
With glazed door Yes
Material Steel
Degree of protection (IP) IP67
Suitable for outdoor set-up Yes
Suitable for metrical mounting Yes
Mounting plate depth-adjustable Yes
Tackable Yes
With ventilation door Yes
Surface finishing Untreated
With backside door Yes
Product type RAM box enclosure
Type of cover Transparent
Wall type Knock-out flanges
Degree of protection IP67
Climatic version (according to GOST 15150-69) UHL1
Flammability ratings (according to UL94) V2
Impact protection ratings IK09
Delivery package Enclosure, cover with fixing screws, sleeves with M6 internal thread - 4 pcs
Modification possibility Enclosures can be connected in length and width
Length 300 mm
Width 200 mm
Height 146 mm
Enclosure height 125 mm
Cover height 21 mm
