RAM box enclosure w/o MP 300х200х146 mm with flanges and non-transparent сover 21 mm, IP67

Code: 532210

RAM box enclosure w/o MP 300х200х146 mm with flanges and non-transparent сover 21 mm, IP67

Code: 532210
Colour Grey
Width, mm 300
Height, mm 146
Depth, mm 200
RAL-number 7035
With mounting plate No
Number of doors 1
Material Plastic
Degree of protection (IP) IP67
Suitable for outdoor set-up Yes
Tackable Yes
Impact strength IK09
Wall fastening possible Yes
Wall build in No
Floor installation possible No
Pole fastening Yes
Product type RAM box enclosure
Type of cover Non-transparent
Wall type Knock-out flanges
Degree of protection IP67
Climatic version (according to GOST 15150-69) UHL1
Flammability ratings (according to UL94) V0
Impact protection ratings IK09
Delivery package Enclosure, cover with fixing screws, sleeves with M6 internal thread - 4 pcs

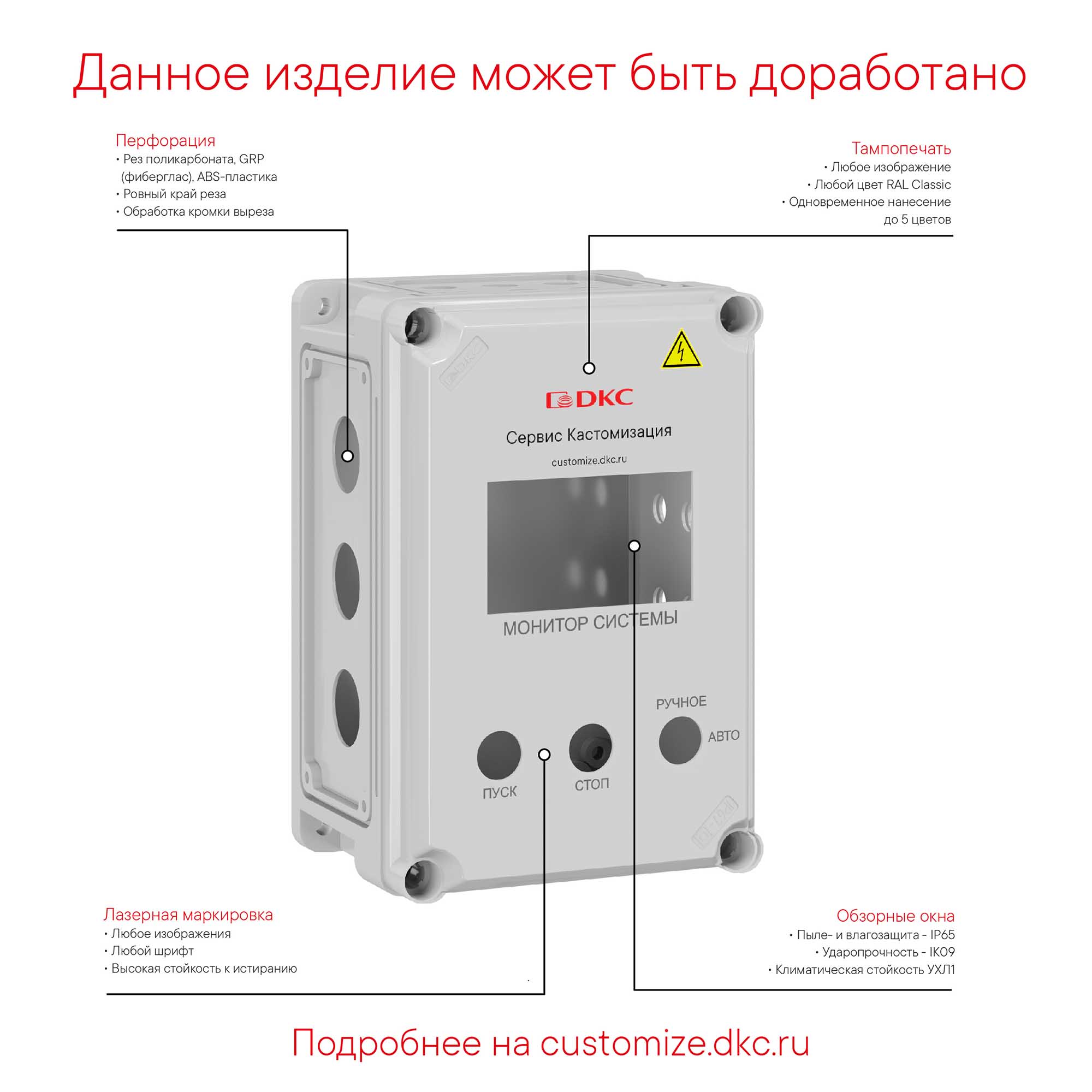

Modification possibility Enclosures can be connected in length and width
Length 300 mm
Width 200 mm
Height 146 mm
Enclosure height 125 mm
Cover height 21 mm
