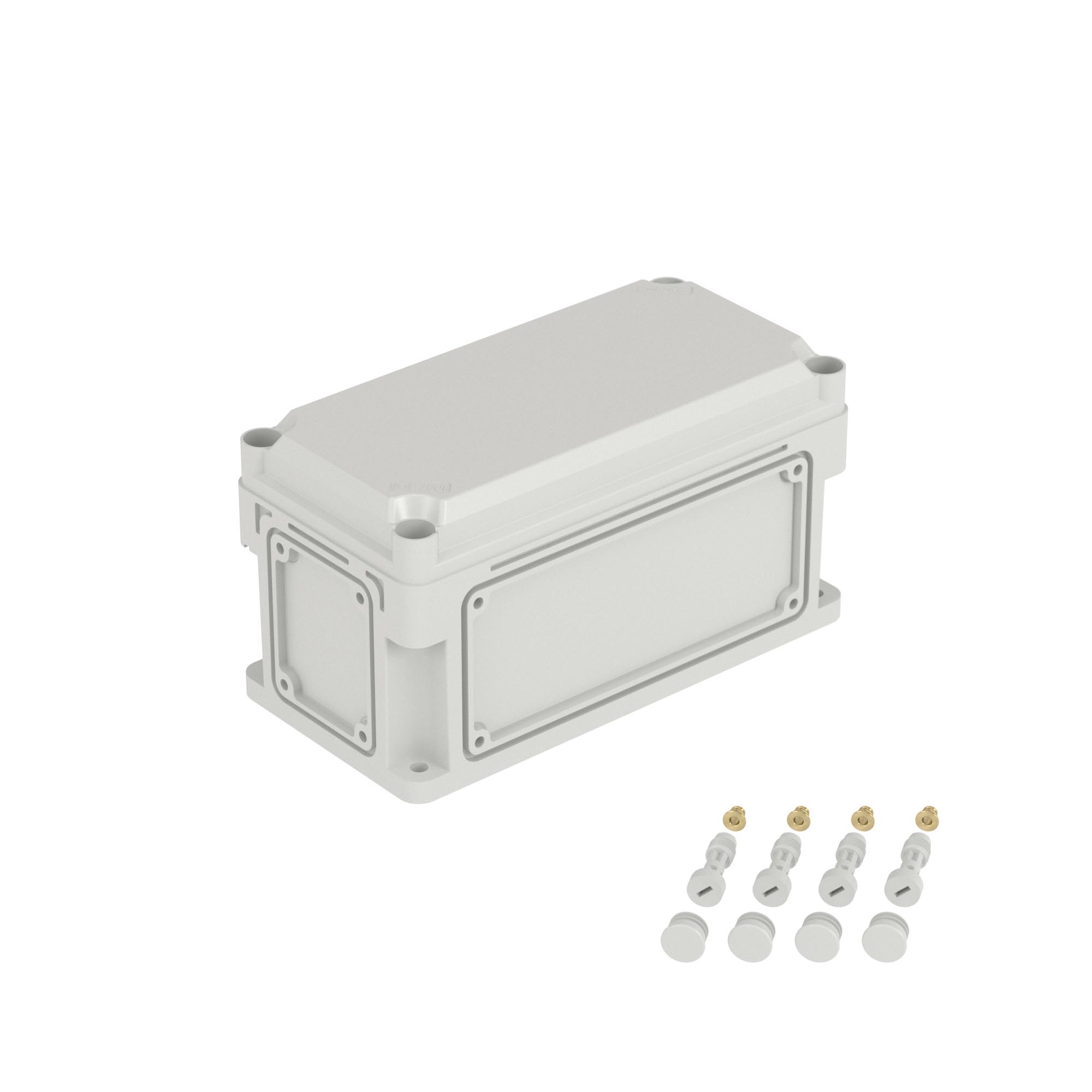

RAM box enclosure w/o MP 300х150х160 mm with flanges and non-transparent сover 35 mm, IP67
Code: 531310
RAM box enclosure w/o MP 300х150х160 mm with flanges and non-transparent сover 35 mm, IP67
Code: 531310
| Colour | Grey |
| Width, mm | 300 |
| Height, mm | 160 |
| Depth, mm | 150 |
| RAL-number | 7035 |
| With mounting plate | No |
| Number of doors | 1 |
| Material | Plastic |
| Degree of protection (IP) | IP67 |
| Suitable for outdoor set-up | Yes |
| Tackable | Yes |
| Impact strength | IK09 |
| Wall fastening possible | Yes |
| Wall build in | No |
| Floor installation possible | No |
| Pole fastening | Yes |
| Product type | RAM box enclosure |
| Type of cover | Non-transparent |
| Wall type | Knock-out flanges |
| Degree of protection | IP67 |
| Climatic version (according to GOST 15150-69) | UHL1 |
| Flammability ratings (according to UL94) | V0 |
| Impact protection ratings | IK09 |
| Delivery package | Enclosure, cover with fixing screws, sleeves with M6 internal thread - 4 pcs |
| Modification possibility | Enclosures can be connected in length and width |
| Length | 300 mm |
| Width | 150 mm |
| Height | 160 mm |
| Enclosure height | 125 mm |
| Cover height | 35 mm |
Accessories
Drawings
| Seria | Name | DWG (dynamic.) | DWG | STEP |
|---|---|---|---|---|
|
Heavy Duty Enclosures - "RAM box"
|
|
|
||
|
Heavy Duty Enclosures - "RAM box"
|
|
Certificates
| Name | Document |
|---|---|
