| Colour | Grey |
| Width, mm | 150 |
| Height, mm | 146 |
| Depth, mm | 300 |
| RAL-number | 7035 |
| With mounting plate | Yes |
| Number of doors | 1 |
| Number of locks | 1 |
| EMC-version | Yes |
| With glazed door | Yes |
| Material | Steel |
| Degree of protection (IP) | IP67 |
| Suitable for outdoor set-up | Yes |
| Suitable for metrical mounting | Yes |
| Mounting plate depth-adjustable | Yes |
| Tackable | Yes |
| With ventilation door | Yes |
| Surface finishing | Untreated |
| With backside door | Yes |

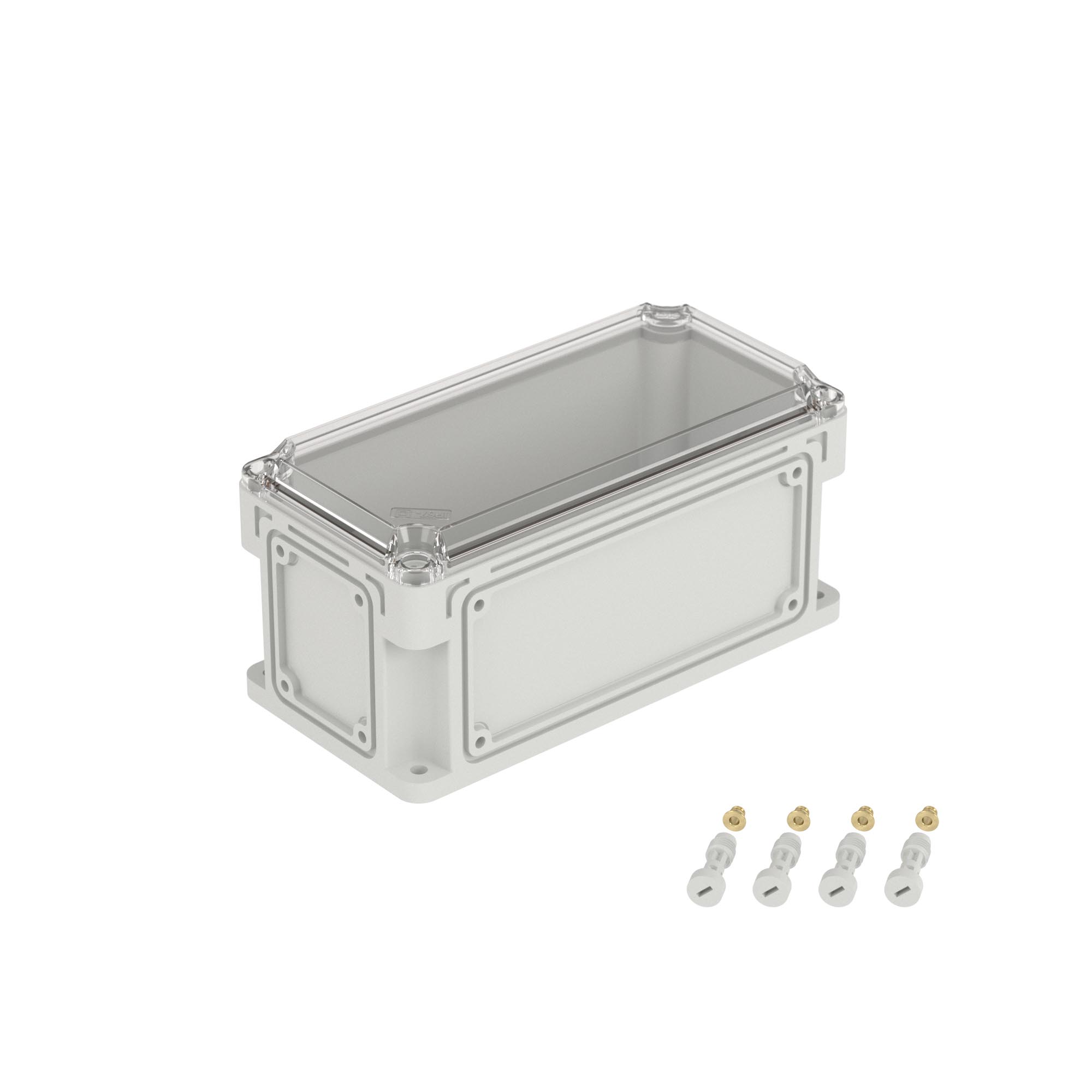

| Product type | RAM box enclosure |
| Type of cover | Transparent |
| Wall type | Knock-out flanges |
| Degree of protection | IP67 |
| Climatic version (according to GOST 15150-69) | UHL1 |
| Flammability ratings (according to UL94) | V2 |
| Impact protection ratings | IK09 |
| Delivery package | Enclosure, cover with fixing screws, sleeves with M6 internal thread - 4 pcs |
| Modification possibility | Enclosures can be connected in length and width |
| Length | 300 mm |
| Width | 150 mm |
| Height | 146 mm |
| Enclosure height | 125 mm |
| Cover height | 21 mm |
