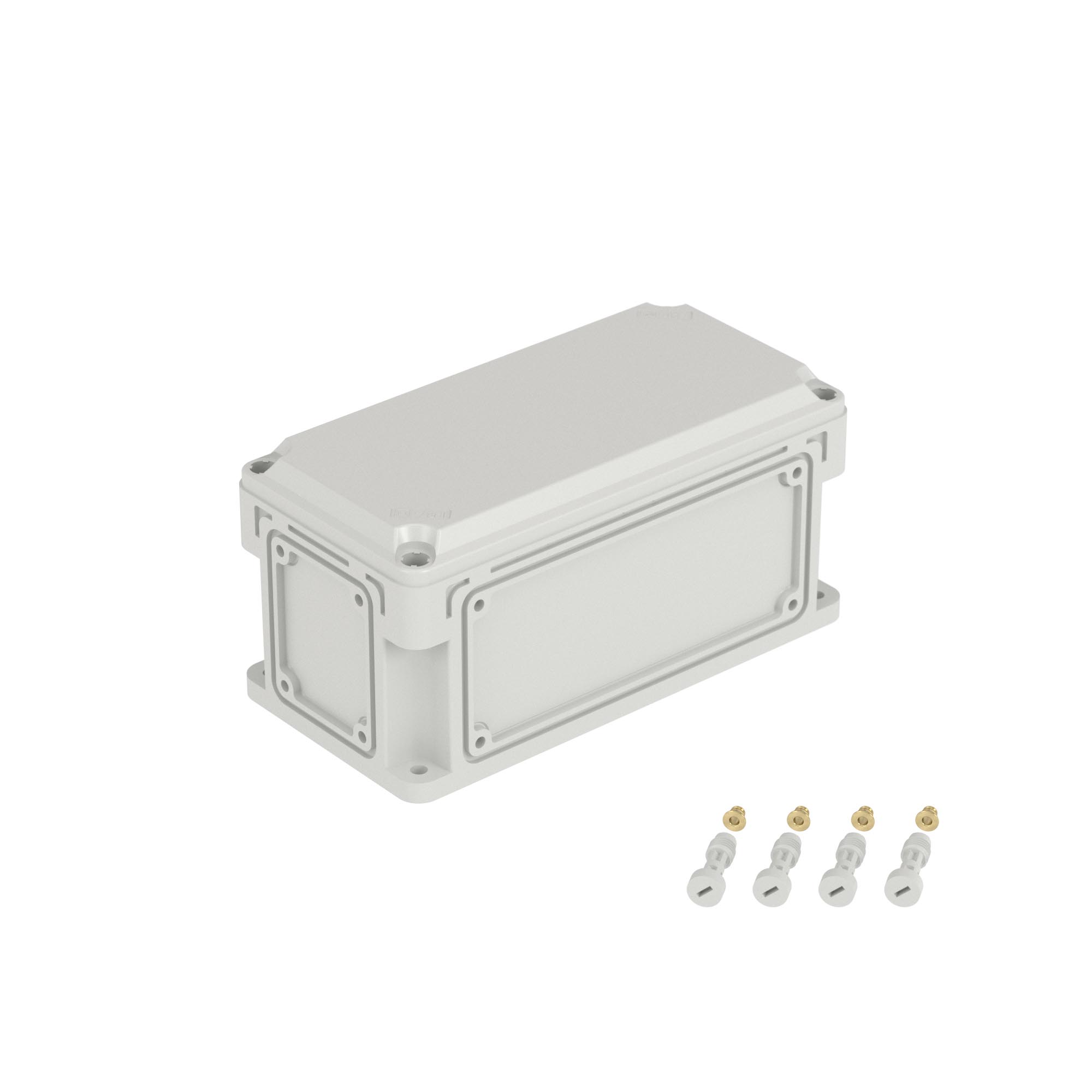

Polycarbonate box IP67, 300x150x146 (height of cover 21), sides with removable flanges, non-transparent cover

Code: 531210
Polycarbonate box IP67, 300x150x146 (height of cover 21), sides with removable flanges, non-transparent cover
Polycarbonate box IP67, 300x150x146 (height of cover 21), sides with removable flanges, non-transparent cover
Length, mm 300
Temperature of mounting, °C -40...+60
Ingress Protection rating, IP IP67
Temperature of usage, °C -80 - +100
Temperature of operation, °C 160
Shock resistance, J 10
Colour Grey
Width, mm 150
Height, mm 146
Depth, mm 300
RAL-number 7035
With mounting plate No
Number of doors 1
Number of locks 1
EMC-version No
With glazed door No
Floor mounting possible No
Material Plastic
Wall mounting possible Yes
Degree of protection (IP) IP67
Suitable for outdoor set-up Yes
Suitable for metrical mounting Yes
Mounting plate depth-adjustable No
Tackable Yes
With ventilation door No
Type of surface Other
Surface mounting Yes
With backside door No
Flush-mounted installation No
The accompanying goods
Bottom plate 600x300 mm
Bottom plate 600x300 mm
Code: 503630
Hinge. Type 1
Hinge. Type 1
Code: 502001
Kit for lock mounting
Kit for lock mounting
Code: 502003
Bottom plate 300x150 mm
Bottom plate 300x150 mm
Code: 503310
Bottom plate 300x200 mm
Bottom plate 300x200 mm
Code: 503320
Bottom plate 400x300 mm
Bottom plate 400x300 mm
Code: 503430
Flange. Type C
Flange. Type C
Code: 501003
Sealant for flange
Sealant for flange
Code: 501012
Screw for box-joining
Screw for box-joining
Code: 501013
Collar plug with M6 thread
Collar plug with M6 thread
Code: 501007
Drawings
Seria Name DWG STEP DWG (dynamic blocks)
RAMbox - heavy duty enclosures
Housing IP67,300х150х146,(h cu.21),wall knocking.flange.cont.cu
RAR
188.16 kB
ZIP
191.90 kB
RAMbox - heavy duty enclosures
RAM box is an impact-resistant case made of polycarbonate, IP67 (dynamic blocks)
RAR
1.10 MB
Certificates
Name Document
RAM box - Sanitary-epidemiological conclusion for RAM box
PDF
421.98 kB
RAM box - Fire safety certificates RAM box
PDF
2.27 MB
RAM box - Certificate of conformity to GOST R for boxing made of polycarbonate for electrical products
PDF
490.54 kB
Exemption Letter for heavy duty enclosures
PDF
526.73 kB
Exemption Letter for heavy duty enclosures_1
PDF
252.38 kB
Certificate of conformity to fire safety for heavy duty enclosures
PDF
278.18 kB
