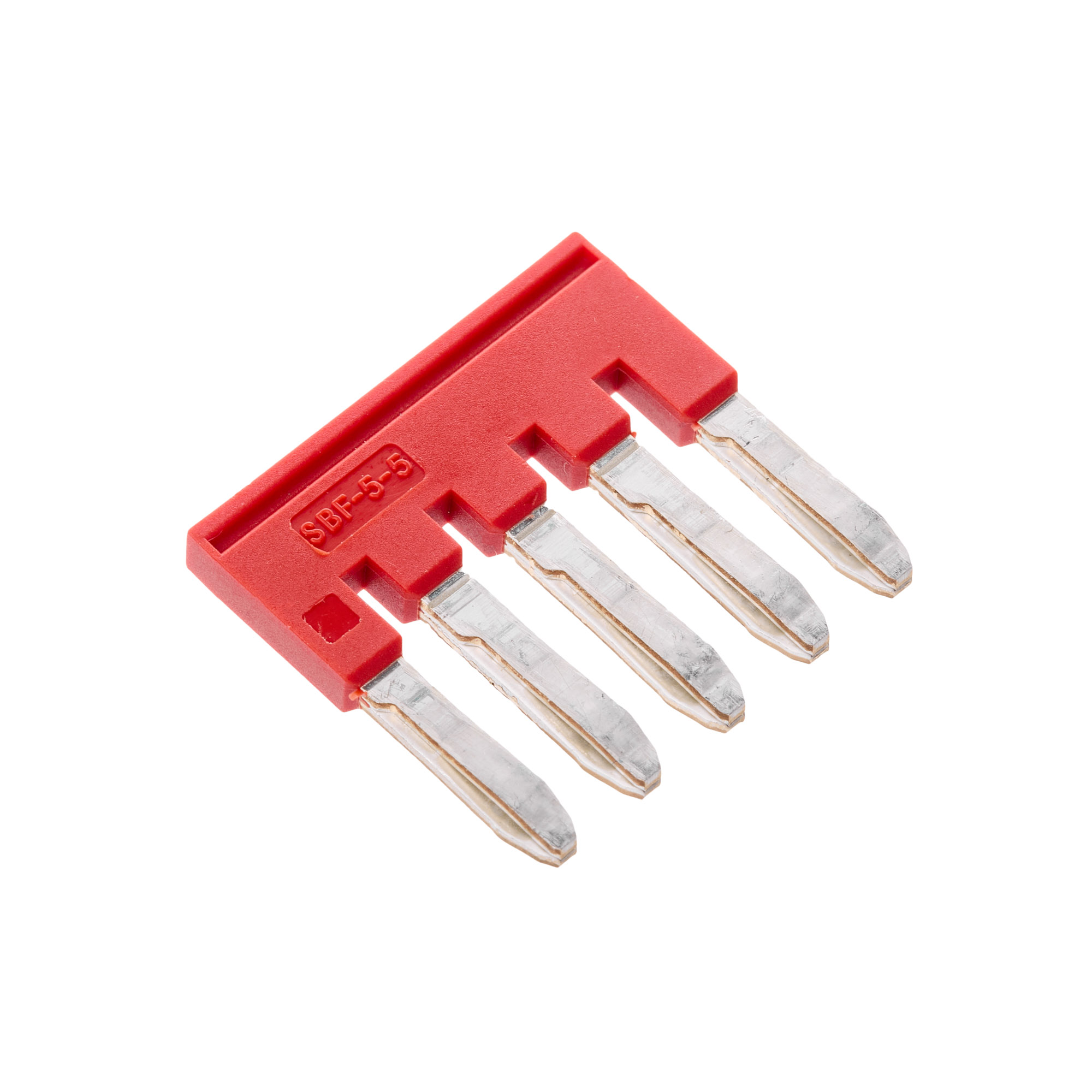

SBF-5-5
Code: SBF-5-5
SBF-5-5
Code: SBF-5-5
Mounting method | Pluggable |
Number of bridged clamps | 5 |
Colour | Red |
Model | Push-in type jumper bar |
Insulated | Yes |
Rated voltage, V | 1000 |
Rated current In, A | 24 |
Modular spacing, mm | 24.6 |
With shock protection | Yes |
Explosion-tested version 'Ex e' | No |
Product type | Accessory |
Type of accessories | Jumper |
Cross-conneсtor type | Pluggable |
Pitch | 5,2 mm |
Q'ty of poles | 5 |
Weight | 4,37 g |
