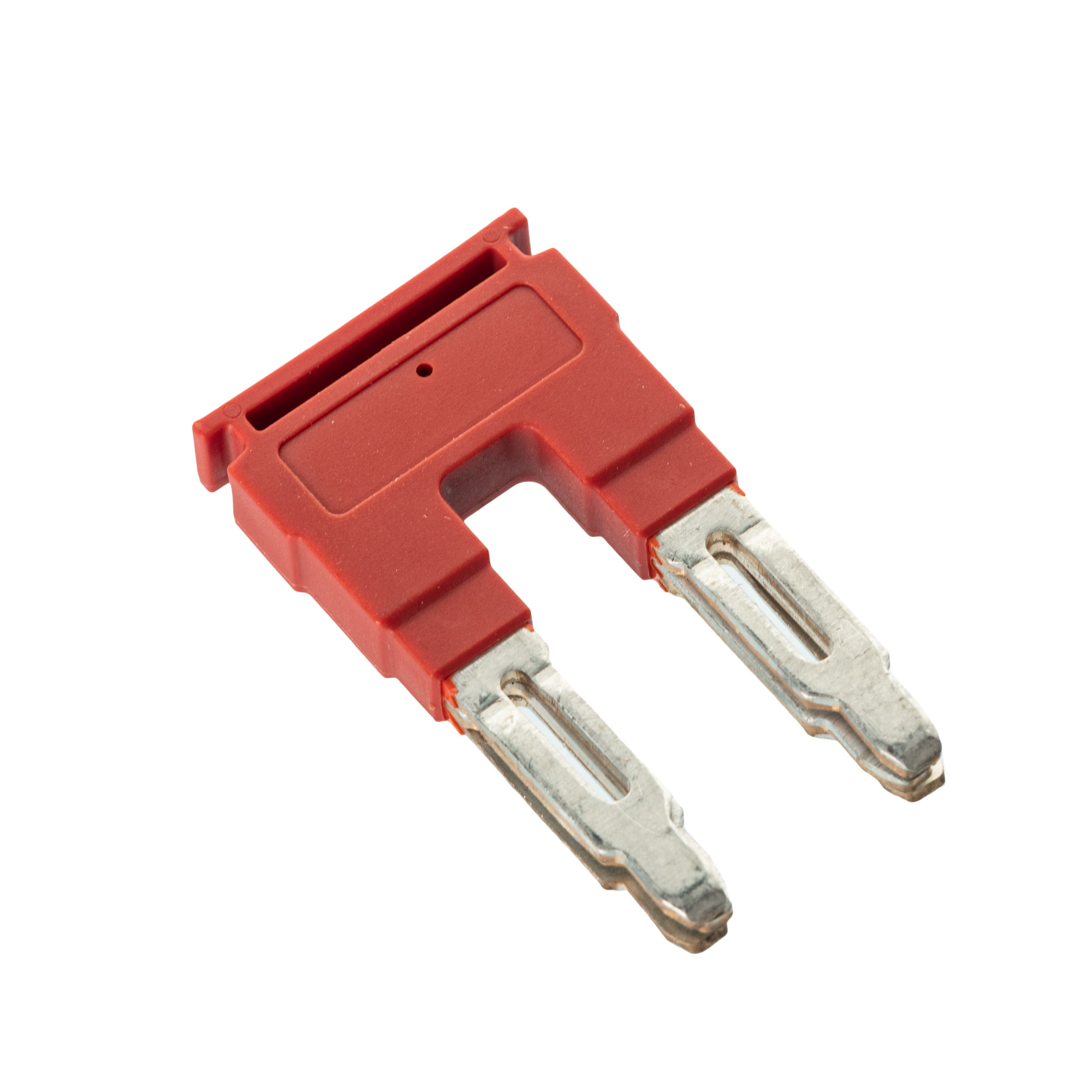

SBF-2-12
Code: SBF-2-12
SBF-2-12
Code: SBF-2-12
| Mounting method | Pluggable |
| Number of bridged clamps | 2 |
| Colour | Red |
| Model | Push-in type jumper bar |
| Insulated | Yes |
| Rated voltage, V | 1000 |
| Rated current In, A | 101 |
| Modular spacing, mm | 20.6 |
| With shock protection | Yes |
| Explosion-tested version 'Ex e' | No |
| Product type | Accessory |
| Type of accessories | Jumper |
| Cross-conneсtor type | Pluggable |
| Pitch | 12 mm |
| Q'ty of poles | 2 |
| Weight | 10,81 g |
