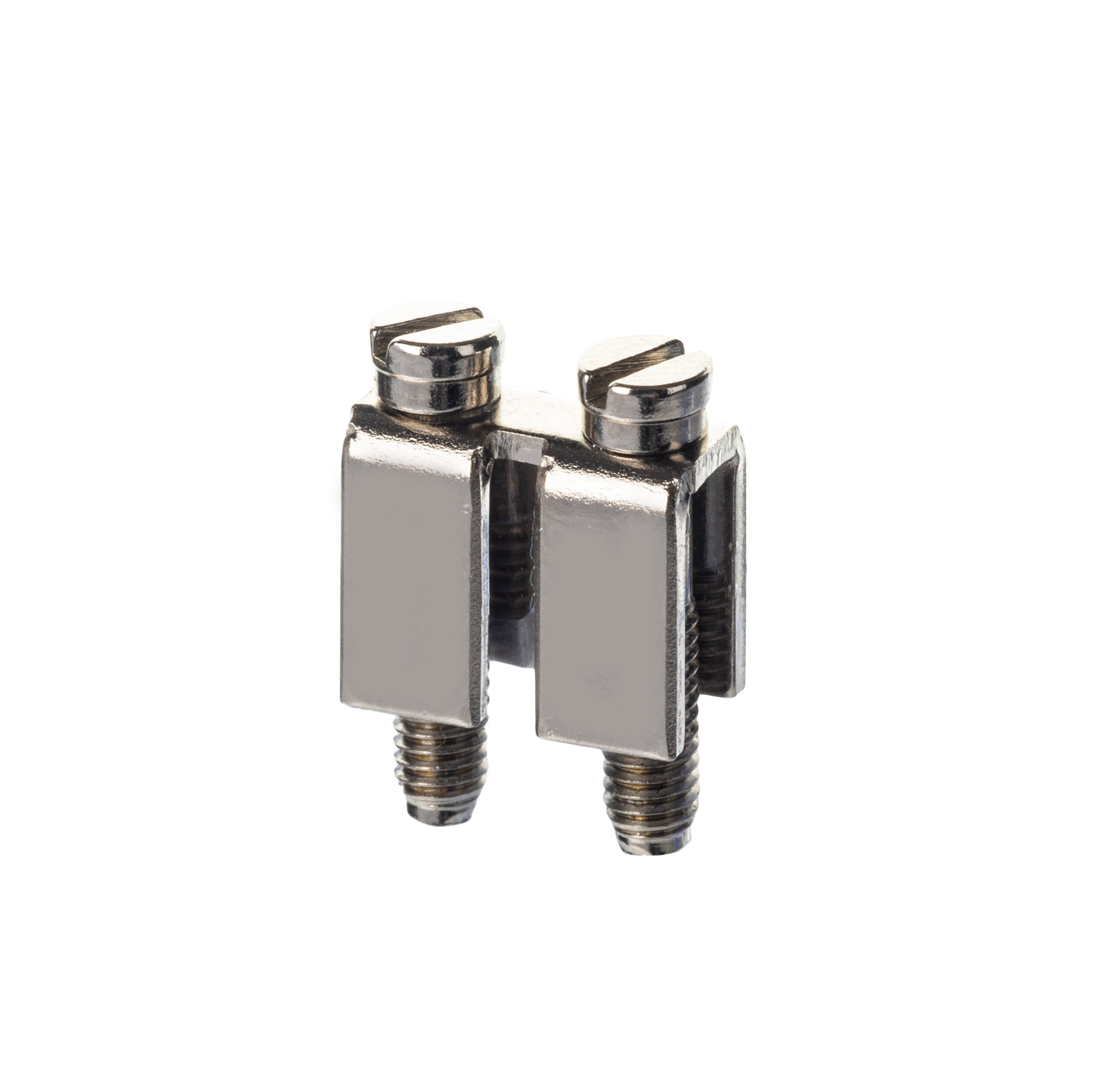

IBF-3-6
Code: IBF-3-6
IBF-3-6
Code: IBF-3-6
Mounting method | Screwable |
Number of bridged clamps | 3 |
Colour | Grey |
Model | Transverse connector |
Insulated | Yes |
Rated voltage, V | 500 |
Rated current In, A | 32 |
Modular spacing, mm | 17.35 |
With shock protection | Yes |
Explosion-tested version 'Ex e' | No |
Product type | Accessory |
Type of accessories | Jumper |
Cross-conneсtor type | Screw |
Pitch | 6,2 mm |
Q'ty of poles | 3 |
Tightening torque range for fixing screw | 0,6−0,8 N∙m |
Weight | 4,58 g |
