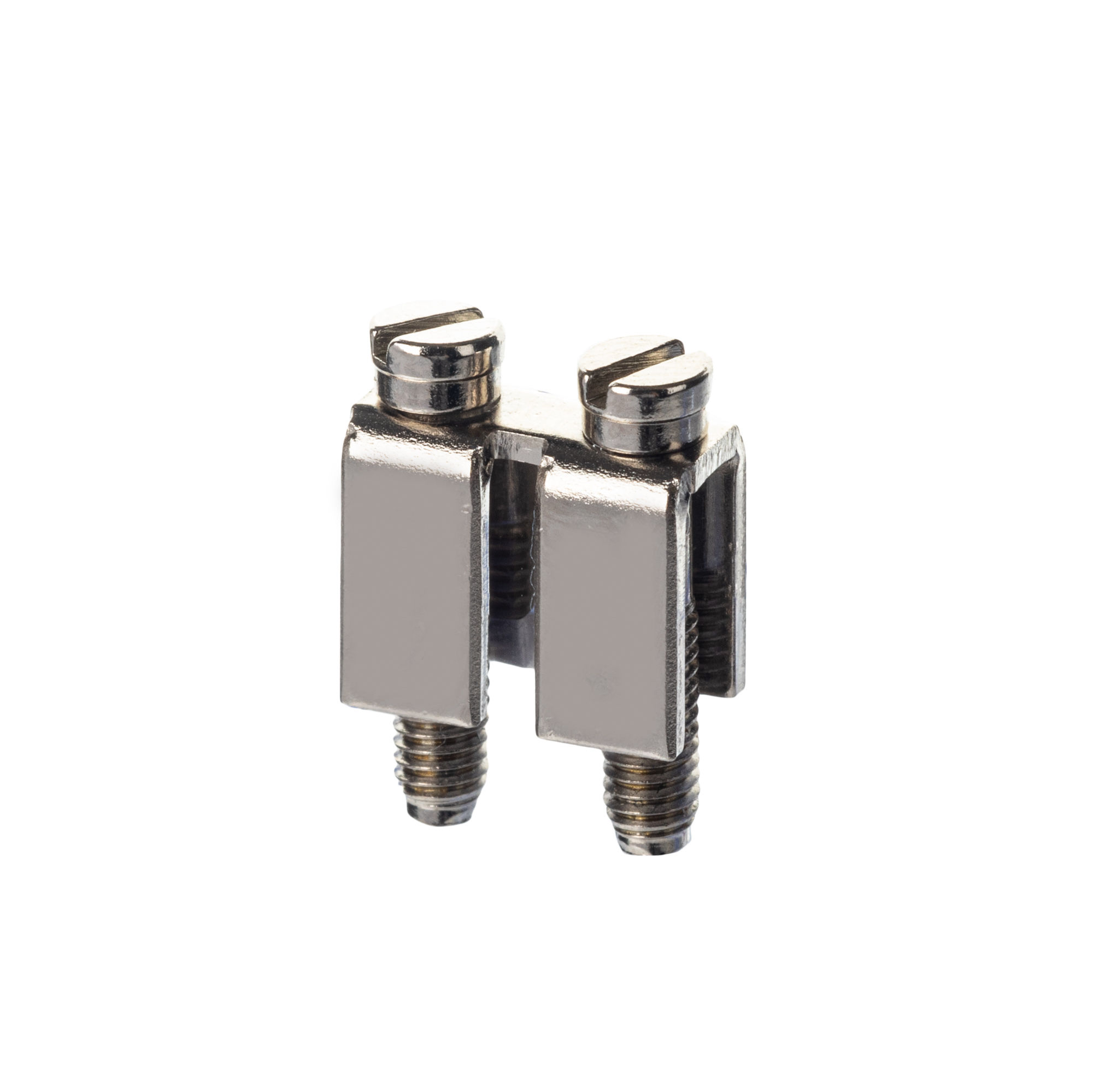

IBF-3-5
Code: IBF-3-5
IBF-3-5
Code: IBF-3-5
| Mounting method | Screwable |
| Number of bridged clamps | 3 |
| Colour | Grey |
| Model | Transverse connector |
| Insulated | Yes |
| Rated voltage, V | 500 |
| Rated current In, A | 28 |
| Modular spacing, mm | 15.33 |
| With shock protection | Yes |
| Explosion-tested version 'Ex e' | No |
| Product type | Accessory |
| Type of accessories | Jumper |
| Cross-conneсtor type | Screw |
| Pitch | 5,2 mm |
| Q'ty of poles | 3 |
| Tightening torque range for fixing screw | 0,5−0,6 N∙m |
| Weight | 3,76 g |
